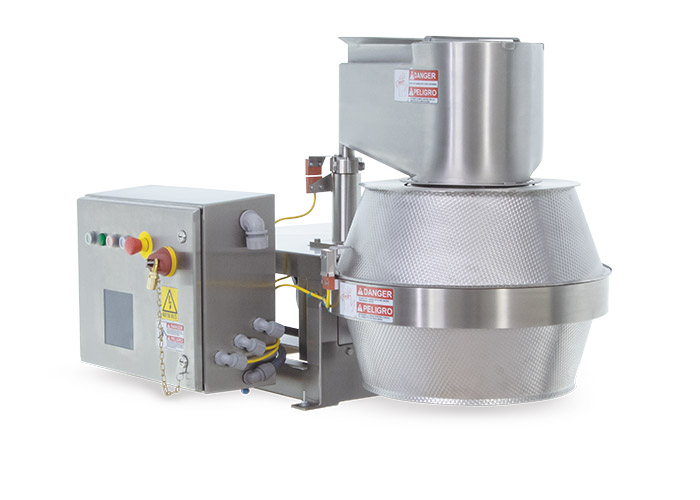

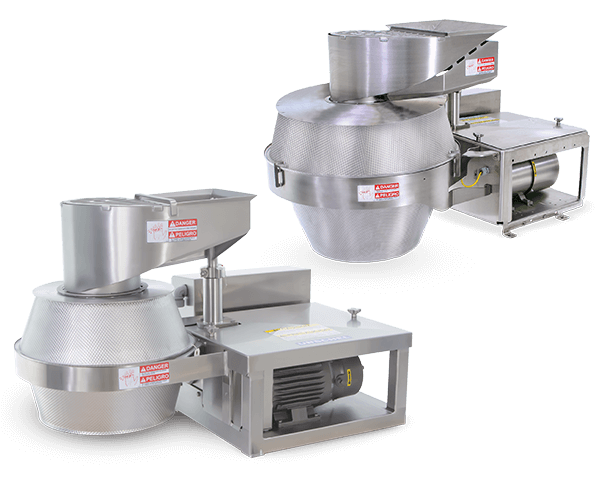

Models CCL & CCLL Lattice Slicers
New Development in Potato Slicing: Meet the CCLL
The new CCLL delivers more than twice the capacity of the CCL. The CCLL features five cutting stations, a larger 32″ (813 mm) cutting chamber, and is powered by a 10 HP (7.5 kW) stainless steel motor. Model CC Slicers can be converted to Model CCL Lattice Slicers to create unique lattice slices.
-
Key Features
-
Applications
-
Specs
-
Types of Cuts
-
Media & Brochures
Key Features
SPECIALTY CUT STYLE
Unique lattice appearance. Both sides of the lattice slice have interlaced crinkles running approximately 90° to each other.
CONVERT A MODEL CC
Model CC Slicers can be converted to Model CCL Lattice Slicers. Larger CC Slicers can be converted to Model CCLL Large Lattice Slicers. Contact Urschel for additional information.
NEW CCLL
The CCLL potato slicer offers Improved, gentler cutting action and promotes higher yields. †Patented stainless steel impeller has a larger central feed opening for extended runtime and now with five, instead of four, longer feed tubes for increased capacity and improved slice quality.
HIGH CAPACITY PRODUCTION
The new CCLL potato slicer delivers more than twice the capacity of the CCL. The CCLL features five cutting stations, and a larger 32″ (813 mm) cutting chamber, and is powered by a 10 HP (7.5 kW) stainless steel motor.
BEST SUITED FOR SPECIFIC INPUT SIZE
Proper feeding of round or elongated potatoes measuring between 2–4″ (50.8 – 101.6 mm) is essential.
URSCHEL SERVICE & SUPPORT
Urschel cutting machinery is backed by solid service and support. Urschel customer service is just as dependable as the rugged equipment Urschel manufactures.
†U.S. Patent 11090829. International patents pending.
Applications
The Models CCL (Chip Cutter Lattice) and CCLL (Chip Cutter Large Lattice) potato slicers produce lattice cuts of varying thickness. Both sides of the slice have crinkles/corrugations. The crinkles/corrugations run approximately 90° to each other. Uses involve lattice potato chips and thicker potato waffle fries. The CCL features 4 cutting stations. The CCLL features 5 cutting stations.
An improved version of the CCL, the CCLL Slicer features five cutting stations, in place of the four, a larger 32″ (813 mm) cutting chamber, and is powered by a 10 HP (7.5 kW) stainless steel motor.
The CCLL delivers more than twice the capacity of the CCL (dependent on feeding method). Improved, gentler cutting action promotes higher yields. †Patented stainless steel impeller has a larger central feed opening for extended runtime and now with five, instead of four, longer feed tubes for increased capacity and improved slice quality. Each feed tube features: individually replaceable bearing tubes; sealed extended life, and hybrid stainless/ceramic ball bearings with rotary seals on either side of each bearing to promote extended runtime.
Lattice slicing is a unique application. Proper feeding of the machine is necessary to ensure continuous production. Tempered high-quality round or elongated potatoes measuring between 2 – 4 inches (51 – 102 mm) are best suited.
Note: The Model CC Slicer can be converted to a Model CCL Lattice Slicer by purchasing the recommended set of parts. Contact your local Urschel representative for more information.
†U.S. Patent 11090829. International patents pending.

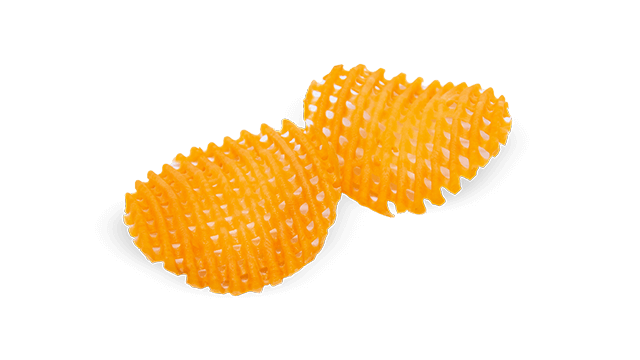

Carrot
Coarse Lattice
Potato
Deep Lattice
Potato
Coarse Lattice
Potato
Coarse and Deep Lattice
Potato
Deep Lattice

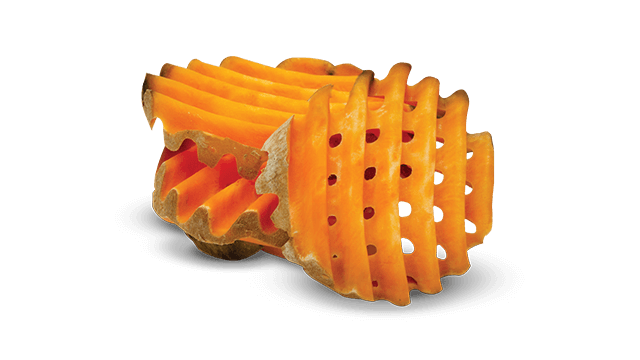

Sweet Potato
Deep Lattice
Turnip
Coarse Lattice

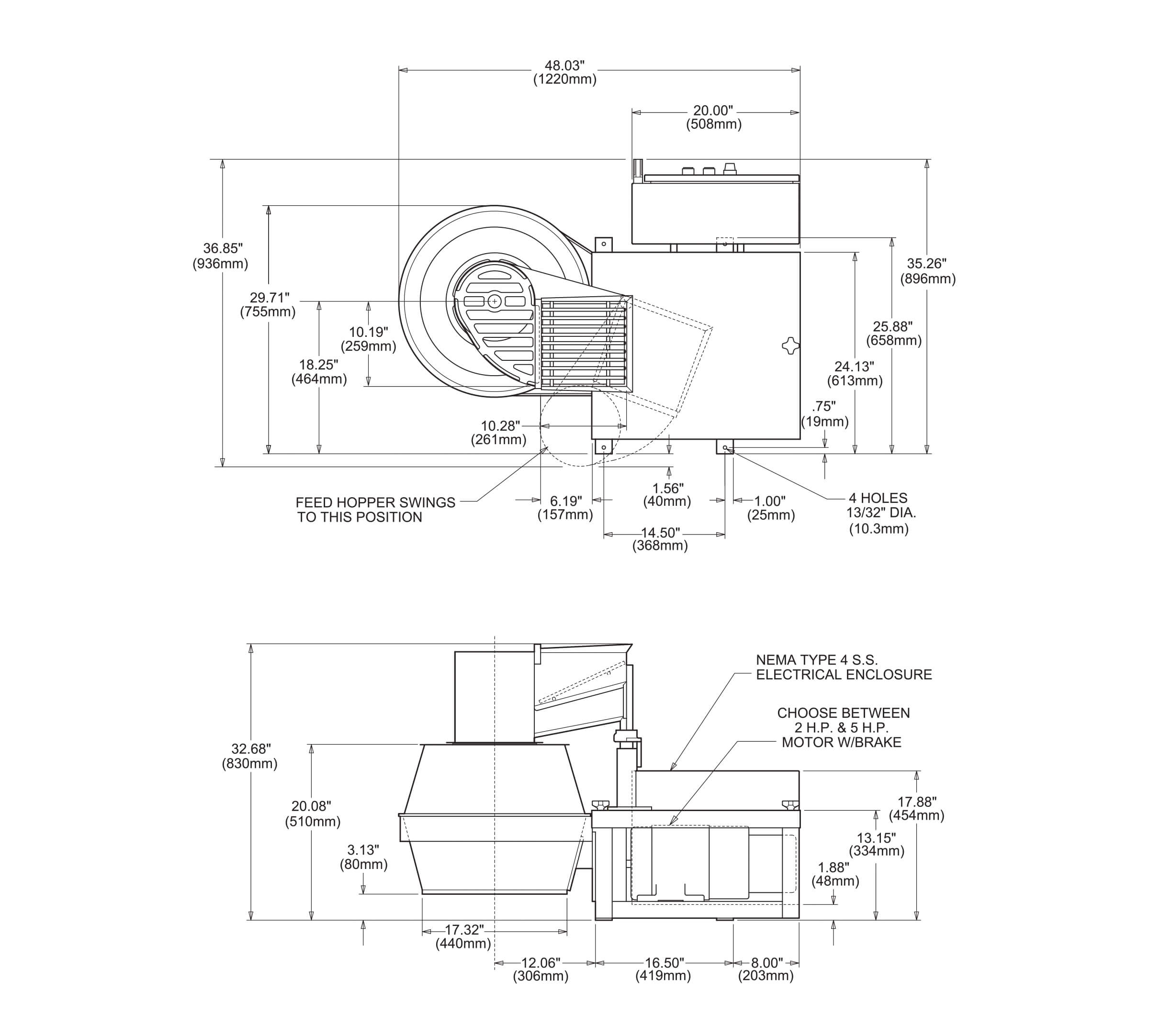

Model CCL Specs
| LENGTH | 48.03″ (1220 mm) |
| WIDTH | 35.26″ (896 mm) |
| HEIGHT | 32.68″ (830 mm) |
| NET WEIGHT | 540 lb (245 kg) |
| MOTOR | 2 or 5 HP (1.5 or 3.7 kW) |

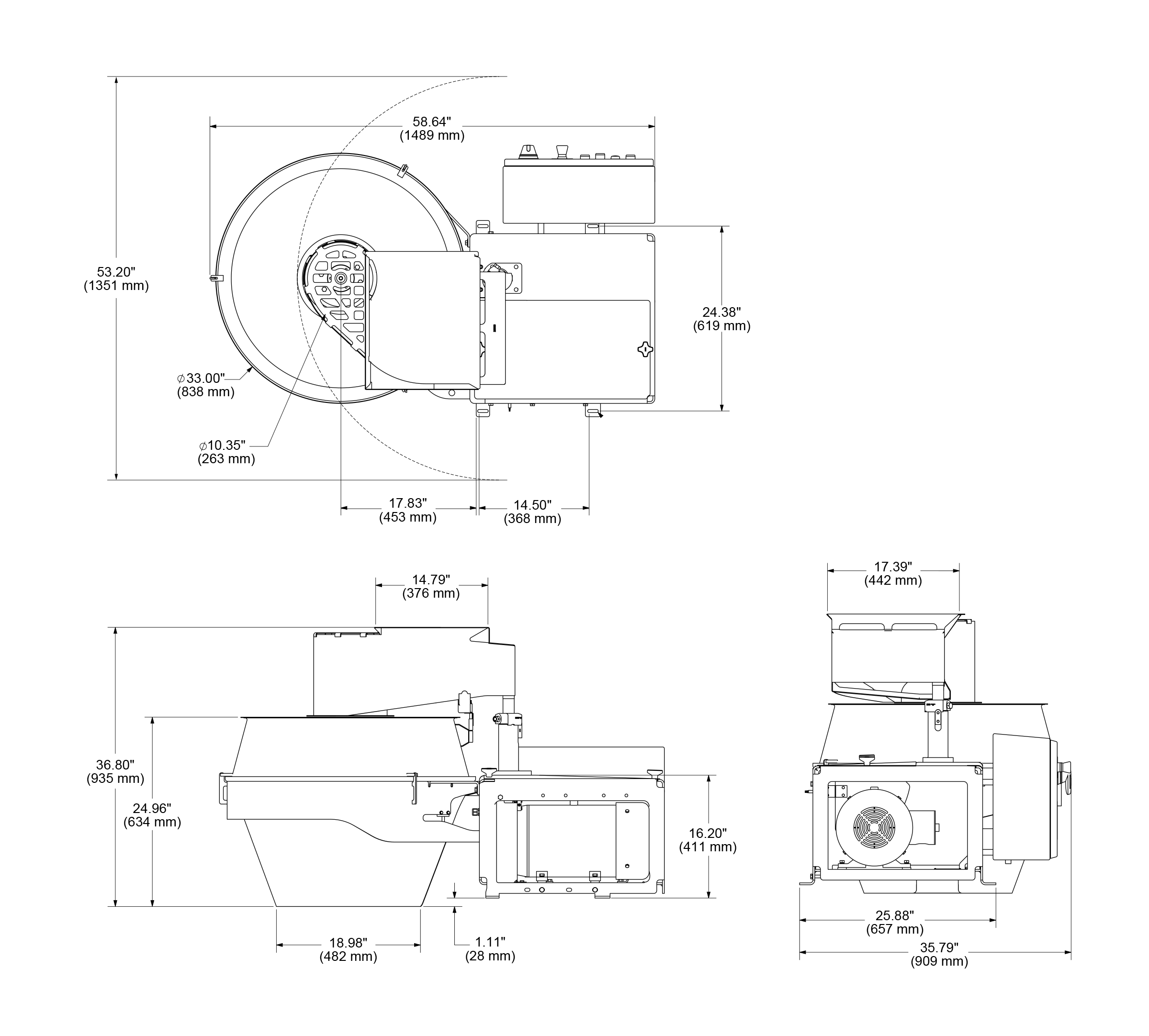

Model CCLL Specs
| LENGTH | 58.64″ (14789 mm) |
| WIDTH | 35.79″ (909 mm) |
| HEIGHT | 36.80″ (935 mm) |
| NET WEIGHT | 1300 lb (590 kg) |
| MOTOR | 10 HP (7.5 kW) |
Operating Principle
Model CCL Lattice Slicer
- Revolving impeller assembly
- Rotating potato-holding tubes
- Crinkle knife stations

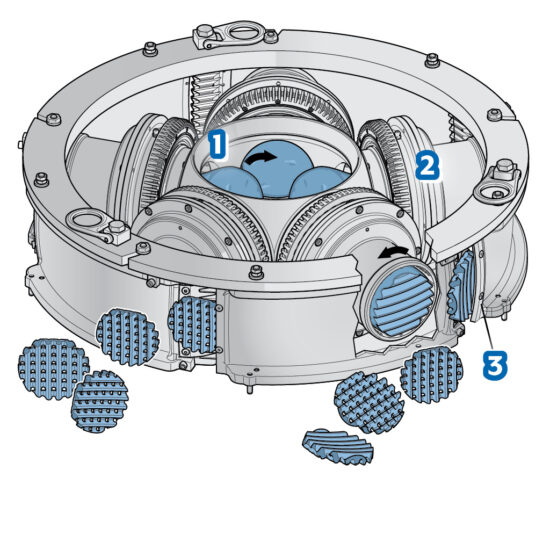

Model CCLL Lattice Slicer
- Revolving impeller assembly
- One of five rotating potato-holding tubes
- One of five crinkle knife stations
Types of Cuts
Cut Category

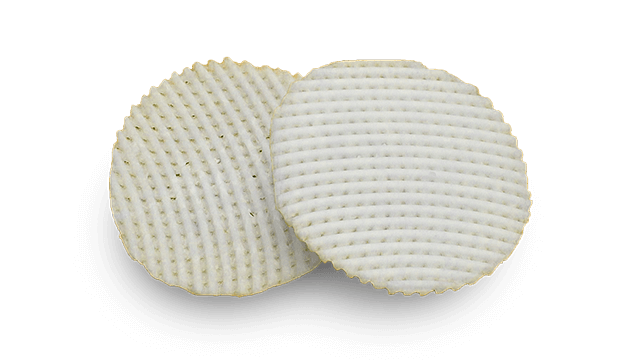

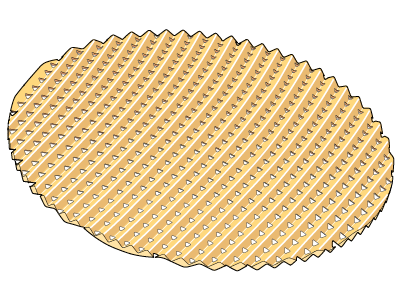

Fine Lattice – CCL
Translucent appearance with small lattice holes visible after frying. 8 corrugations per inch (25.4 mm). Approximately .125″ (3.2 mm) peak to peak.

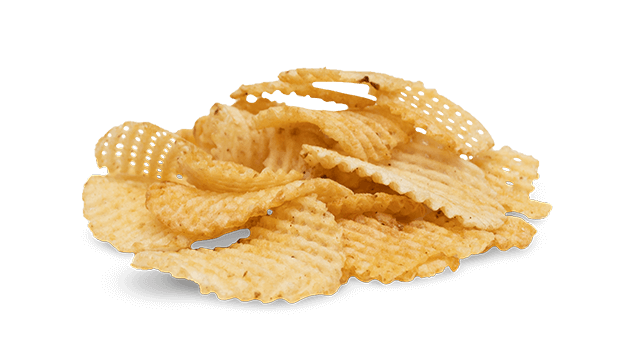

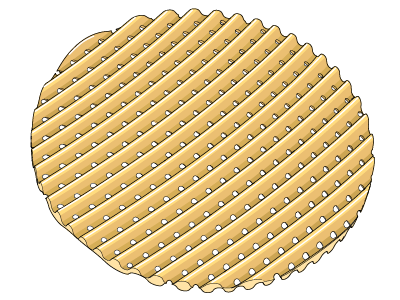

Coarse Lattice – CCL & CCLL
Small lattice holes are visible. 5.7 corrugations per inch (25.4 mm). Approximately .175″ (4.4 mm) peak to peak.

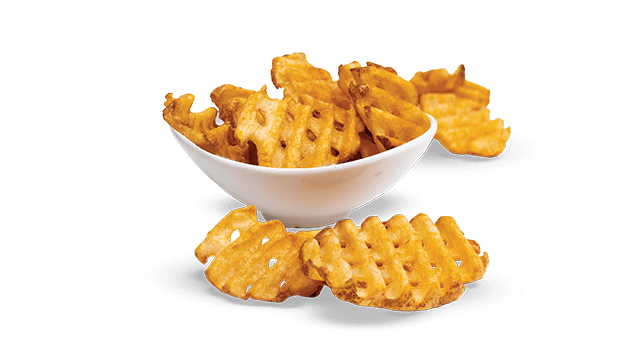

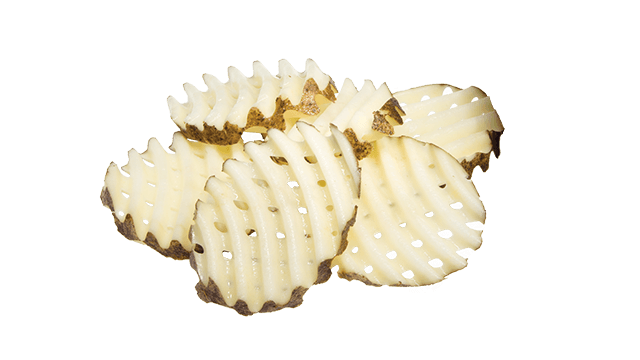

Deep Lattice – CCL & CCLL
Slightly larger lattice holes. 2.25 corrugations per inch (25.4 mm). Approximately .446″ (11.2 mm) peak to peak.
Want to Test Cut Your Specific Product?
Contact Urschel to learn more about the product test cutting process.
Media & Brochures
Photography

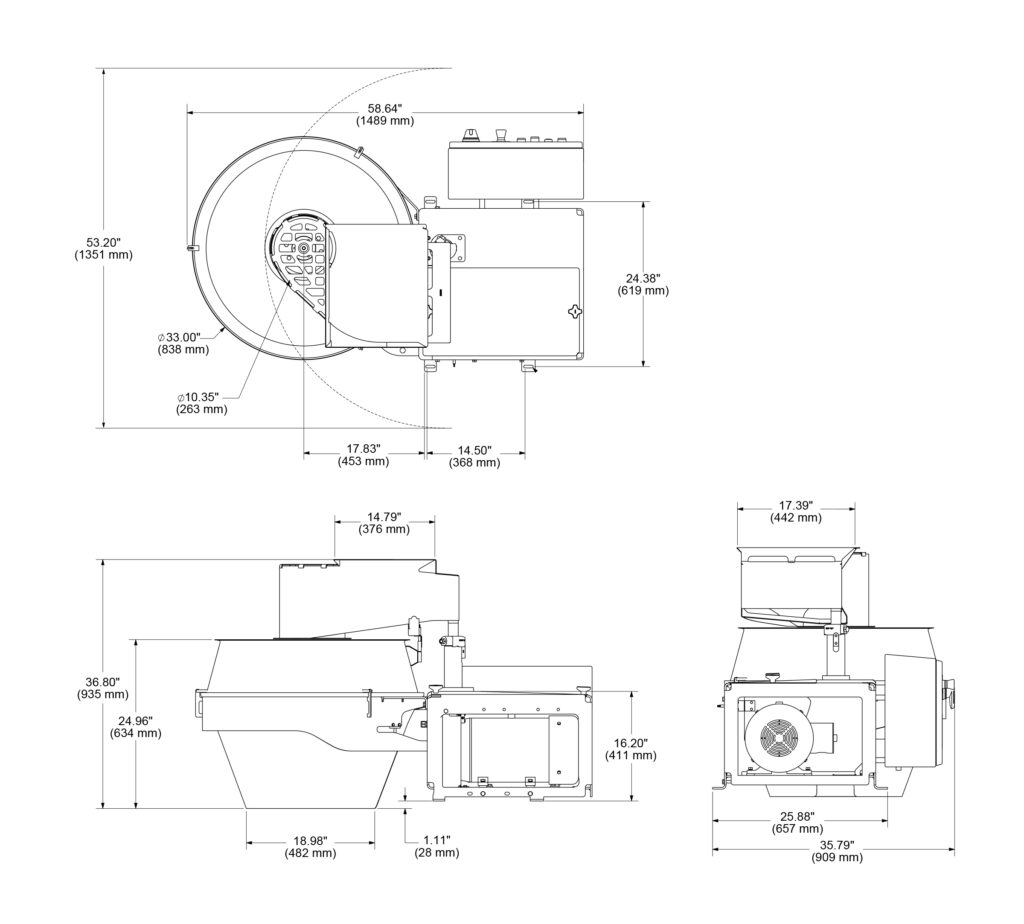

Dimensional Drawings
Find My Sales Rep
Where are you located?
Search United States
Search Globally
Brochures & Guides
Fact Sheet Model CCL Lattice Slicer
Download (link opens in new window)

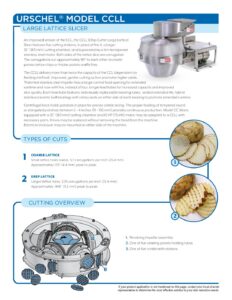

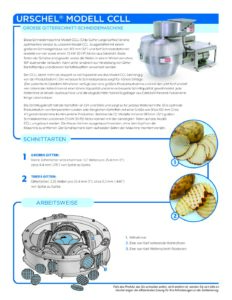

Fact Sheet Model CCLL Lattice Slicer
Download (link opens in new window)

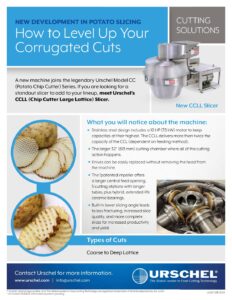

Cutting Solution Model CCLL Lattice Slicer
Download (link opens in new window)

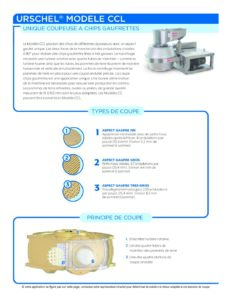

Fact Sheet Model CCL Lattice Slicer (FR)
Download (link opens in new window)

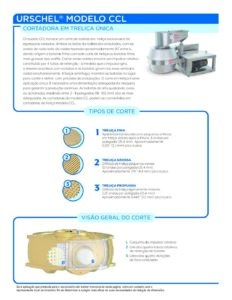

Fact Sheet Model CCL Lattice Slicer (POR)
