Comitrol® Processor Model 2100
Large Hopper Capacity Plus Positive Feed Assistance
The Comitrol Processor Model 2100 features large hopper capacity and positive product feeding for cutting fresh and frozen tempered meat and other products through a wide range of sizes.
-
Key Features
-
Applications
-
Specs
-
Types of Cuts
-
Media & Brochures
Key Features
CUTTING HEADS
A wide range of cutting heads and impellers are available for tailor-made particle size reduction requirements.
POWER
Available 40 or 60 HP (30 or 44.7 kW) impeller motor, feed screw motor of 5 HP (3.7 kW), and 2 HP (1.5 kW) agitator.
POSITIVE FEEDING ASSISTANCE
An agitator and screw feeder work together to provide positive feeding assistance.
UNINTERRUPTED PRODUCTION
Features continuous operation for uninterrupted production and simplified design to ease cleaning and maintenance.
Applications
The Comitrol® Processor Model 2100 features a large feed hopper. The impeller may be equipped with a 40 or 60 HP (30 or 44.7 kW) motor. An agitator and screw feeder work together to provide positive feeding assistance. Stainless steel construction ensures maximum durability and sanitation. The machine features continuous operation for uninterrupted production, and is designed for easy cleanup and maintenance. Common applications include vegetable processing, beef/poultry/seafood and byproducts, chili/garlic/ginger/ bean pastes, biscuit/bakery rework, and seaweed.
Product input is dependent on the style of reduction head, impeller selection, and spacing within the head. Generally, maximum input size in any dimension should not exceed 2-1/2″ (63.5 mm)
Beef
Flake
Beef Stick
Emulsion
Cartilaginous Skin Organ Material
Flake
Chicken Nuggets
Emulsion
Formed Turkey Using Thigh Meat
Emulsion
Ginger Paste
Puree
Salisbury Steak
Emulsion
Salmon
Paste
Seaweed
Flake
Spreadable Ham Product
Puree
Specs
| LENGTH | 69.04″ (1754 mm) |
| WIDTH | 65.00″ (1651 mm) * |
| HEIGHT | 70.24″ (1784 mm) |
| NET WEIGHT | 2260 lb (1025 kg) |
| MOTOR | 40 HP (30 kW) or 60 HP (44.7 kW) |
*Usual width with 40 HP motor is shown.
Measurements and weights may vary depending on machine configuration.

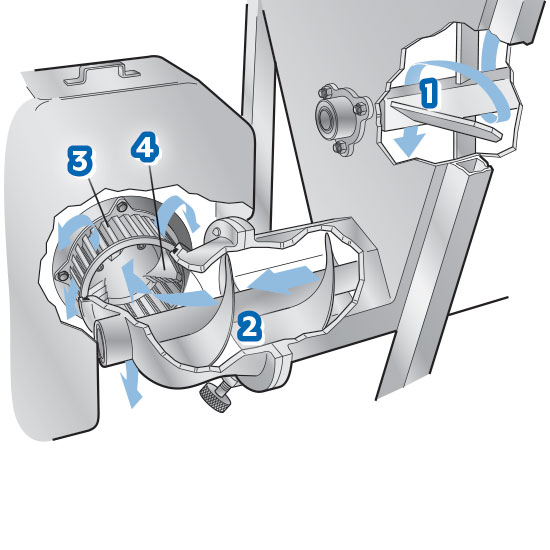

Operating Principle
Comitrol® Processor Model 2100
- Agitator
- Screw Feeder
- Impeller
- Cutting Head
Types of Cuts
Cutting Head
Utilizes 6″ (152.4 mm) diameter Cutting Heads paired with a variety of impellers to produce coarse to fine reductions.
Note: Products that are explosive or create a potentially explosive atmosphere should not be processed by any standard Urschel machine. A potentially explosive atmosphere could be created if processing your product creates fumes or dust in sufficient concentrations. In such cases, customers may work with Urschel to develop a customized solution through a certified print (CP) process.

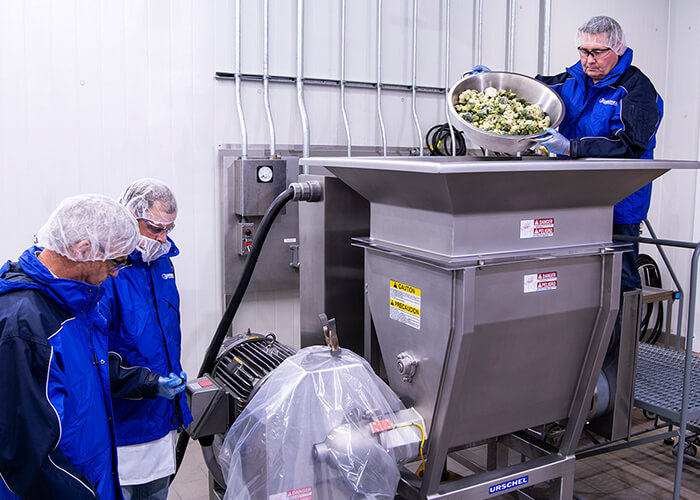

Want to Test Cut Your Specific Product?
Contact Urschel to learn more about the product test cutting process.

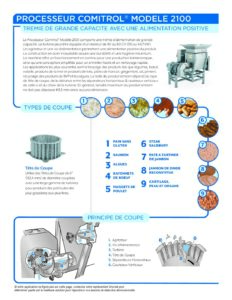

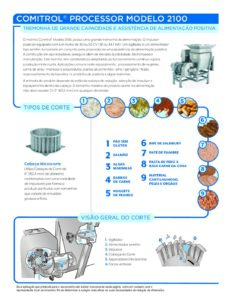

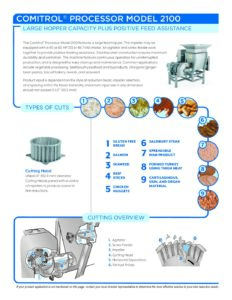

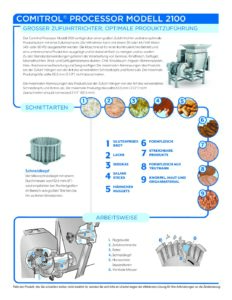

Media & Brochures
Photography
Videos

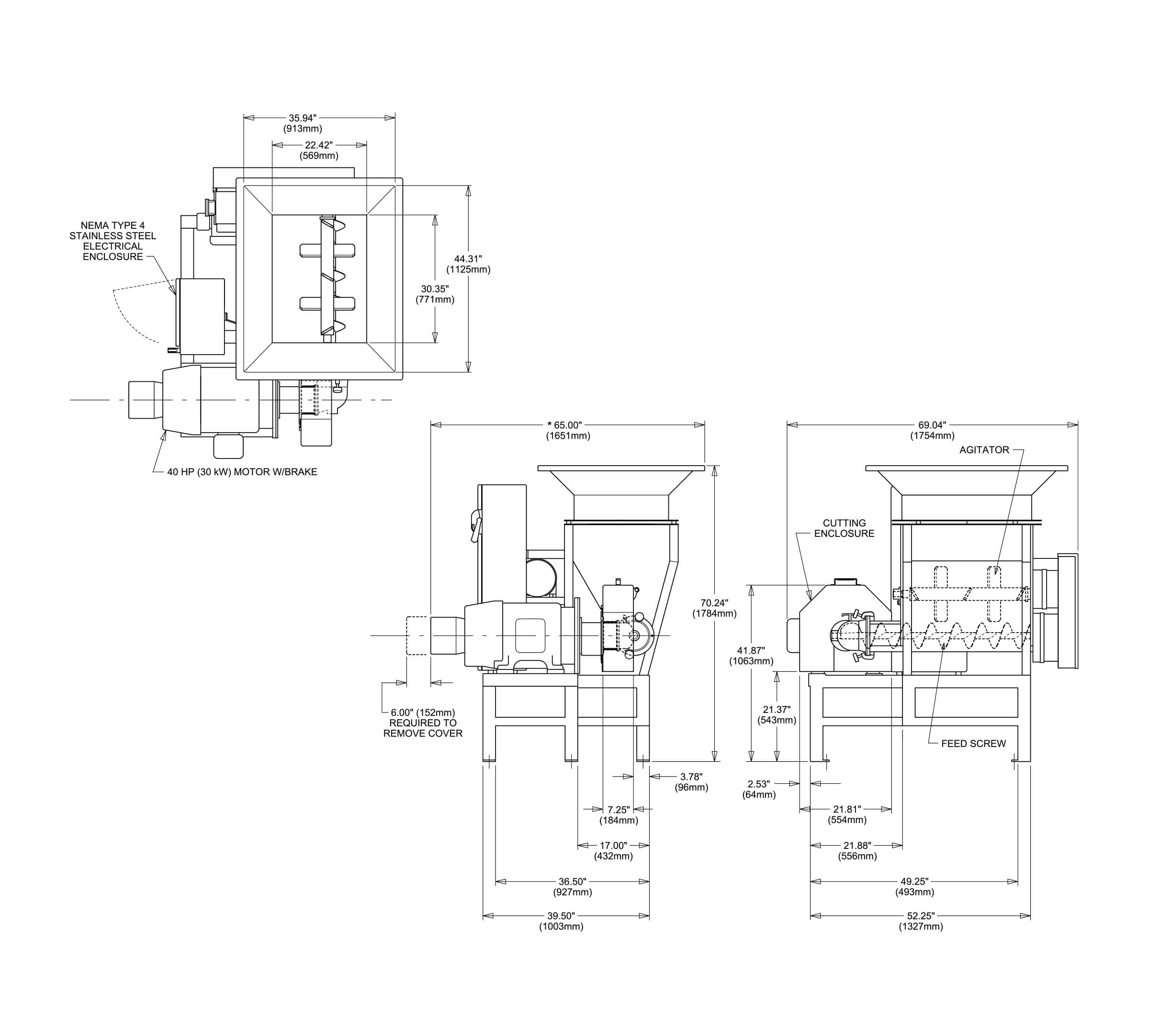

Dimensional Drawings
