Comitrol® Processor Models 3600F, 3640A, and 3640F

Key Features

Applications

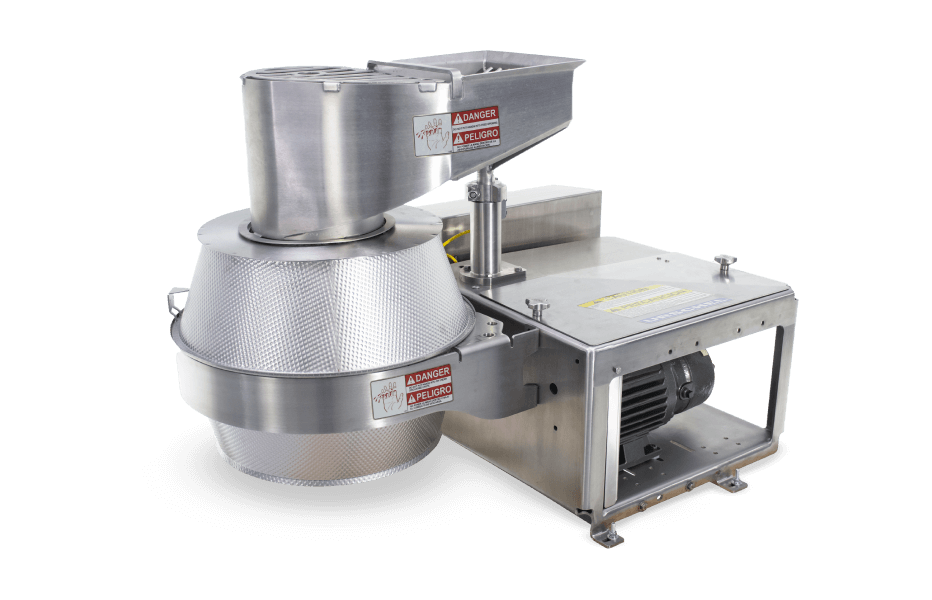

Comitrol® Processor Model 3600F

The Model 3600F is popular in both small volume and large-scale production environments. The 3600F is equipped with a 10 HP (7.5 kW) motor and a screw feeder controlled by a VFD (variable frequency drive) for positive feeding assistance. This machine is commonly sold as a precutter used in conjunction with the Comitrol Processor Model 1700.

Common applications include rework of bakery items, beef/poultry/seafood and byproducts, and vegetable/fruit reductions. Stainless steel construction ensures maximum durability and sanitation. The machine features continuous operation for uninterrupted production, and is designed for easy cleanup and maintenance. Product input is dependent on the style of reduction head, impeller selection, and spacing within the head. Generally, maximum input size in any dimension should not exceed 2-1/2″ (63.5 mm).

Comitrol® Processor Model 3640A

The NEW Comitrol^® Processor Model 3640A is ideal for processing tough or fibrous products in small volume to high capacity production environments. Equipped with VFDs (variable frequency drives) on both the impeller motor and the screw feeder motor, this allows increased speeds to be achieved for greater processing versatility. This variable speed option on the impeller motor accomplishes speed controls between 1,500 up to 6,000 rpm. A VFD is incorporated into the design. Retracting and swivel action built into feed hopper design eases maintenance.

Comitrol® Processor Model 3640F

The Model 3640F is popular in both small volume and large-scale production environments. The 3640F is equipped with a 40 HP (29.8 kW) motor and a screw feeder controlled by a VFD (variable frequency drive) for positive feeding assistance.

Common applications include rework of bakery items, beef/poultry/seafood and byproducts, and vegetable/fruit reductions. Stainless steel construction ensures maximum durability and sanitation. The machine features continuous operation for uninterrupted production, and is designed for easy cleanup and maintenance. Product input is dependent on the style of reduction head, impeller selection, and spacing within the head. Generally, maximum input size in any dimension should not exceed 2-1/2″ (63.5 mm).

Avocado

Paste

Bread

Granulate

Pineapple

Coarse Puree

Cracker

Coarse Puree

Dried Chili Pepper

Flake

Dried Citrus Peel

Rework

Fish Waste

Emulsion

Flour Tortilla Shell

Reduction

Garlic

Puree

Ginger

Coarse Puree

Granola

Granulate

Granola/Fruit/Nut Mixture

Reduction

Hummus

Coarse Puree

Kale

Puree

Peach

Puree

Peanut Butter Cracker

Rework

Polymer

Paste

Salsa

Reduction

Sandwich Cookie

Rework

Seaweed

Fine Particles

Coconut

Desiccated

Tomatillo/Onion

Coarse Puree

Specs

Comitrol® Processor Model 3600F

Comitrol® Processor Model 3640A

Comitrol® Processor Model 3640F

Operating Principle

Comitrol® Processor Model 3600F – 3640F

1. Feed Hopper
2. Screw Feeder
3. Cutting Head
4. Horizontal Separators
5. Vertical Knives
6. Impeller

Types of Cuts

Cutting Head

Utilizes 6″ (152.4 mm) diameter Cutting Heads paired with a variety of impellers to produce coarse to fine reductions.

Note: Products that are explosive or create a potentially explosive atmosphere should not be processed by any standard Urschel machine. A potentially explosive atmosphere could be created if processing your product creates fumes or dust in sufficient concentrations. In such cases, customers may work with Urschel to develop a customized solution through a certified print (CP) process.

Want to Test Cut Your Specific Product?

Contact Urschel to learn more about the product test cutting process.

Schedule Test Cut

Media & Brochures

Photography

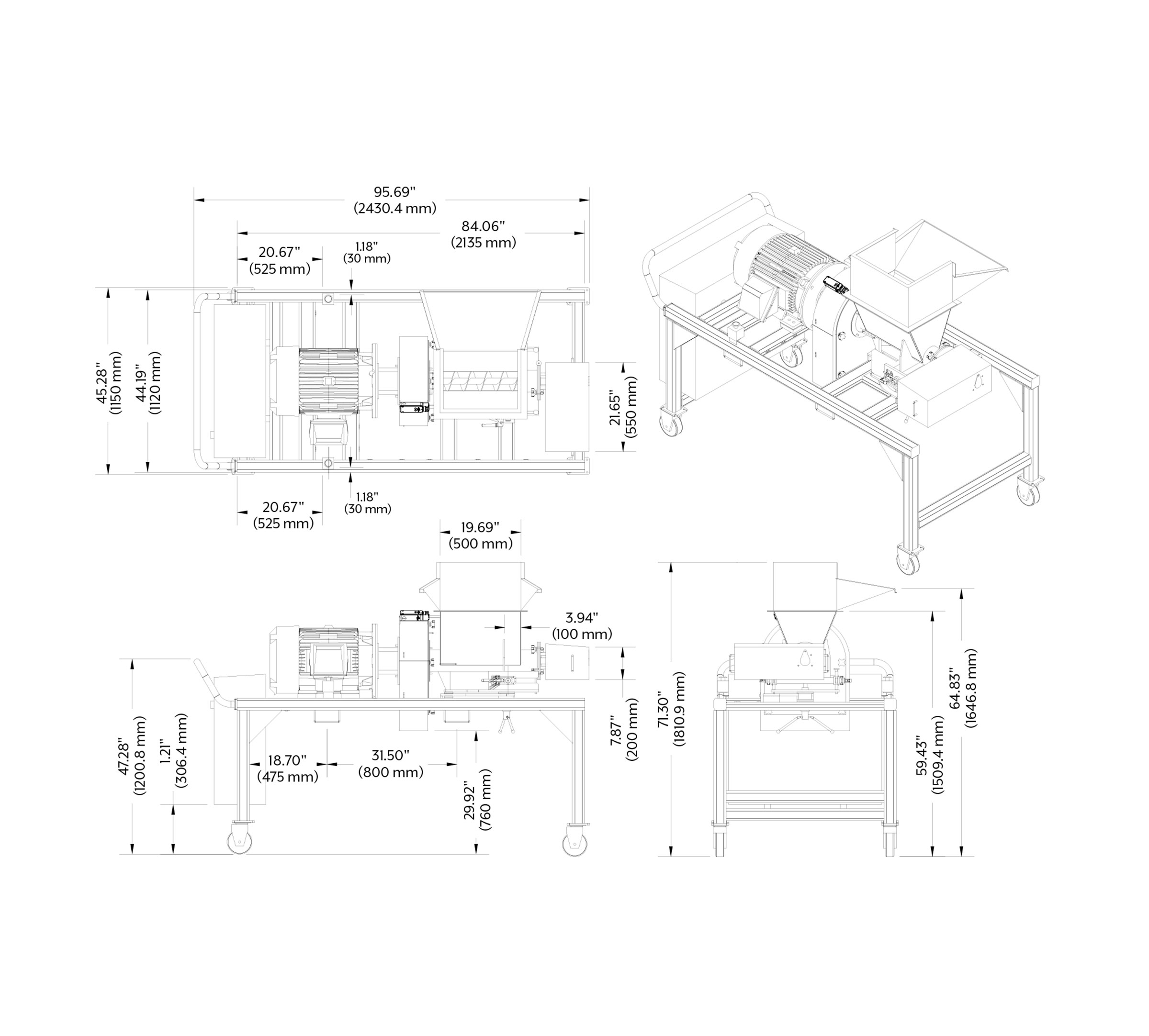

Dimensional Drawings
