Comitrol® Processor Model 5600
Maximum Power Plus Positive Feed Assistance
Offers an impeller speed of 5,600 revolutions per minute for maximum particle reduction.
-
Key Features
-
Applications
-
Specs
-
Types of Cuts
-
Media & Brochures
Key Features
COMMON APPLICATIONS
Common applications include: vegetable processing, curry, ginger, coconut meat, beef/poultry/seafood and byproducts, and textured vegetable protein.
UNINTERRUPTED PRODUCTION
Features continuous operation for uninterrupted production, and is designed for easy cleanup and maintenance.
INCREASED IMPELLER SPEED
The 5600 benefits from the unique Comitrol size reduction principle at an increased impeller speed of 5,600 revolutions per minute.
MAXIMUM INPUT
Product input is dependent on the style of reduction head, impeller selection, and spacing within the head. Generally, maximum input size in any dimension should not exceed 2-1/2″ (63.5 mm).
POWERFUL MOTOR
Maximizes capacity using a powerful 100 HP (75 kW) motor combined with a 5 HP (3.7 kW) screw feeder equipped with a gearmotor and VFD (variable frequency drive).
Applications
The Comitrol® Processor Model 5600 maximizes capacity. A powerful 100 HP (75 kW) motor and a 5 HP (3.7 kW) screw feeder equipped with a gearmotor and a VFD (variable frequency drive) completely optimize throughput. The 5600 benefits from the unique Comitrol size reduction principle at an increased impeller speed of 5,600 revolutions per minute. Stainless steel construction ensures maximum durability and sanitation. The machine features continuous operation for uninterrupted production, and is designed for easy cleanup and maintenance.
Common applications include: vegetable processing, curry, ginger, coconut meat, beef/poultry/seafood and byproducts, and textured vegetable protein. Product input is dependent on the style of reduction head, impeller selection, and spacing within the head. Generally, maximum input size in any dimension should not exceed 2-1/2″ (63.5 mm).

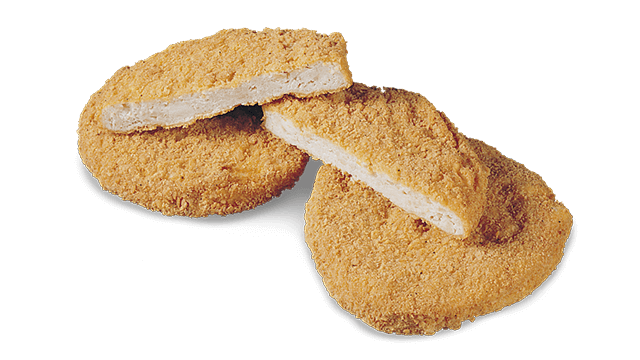

Breaded Chicken Patty
Reduction
Cheese Curd
Reduction

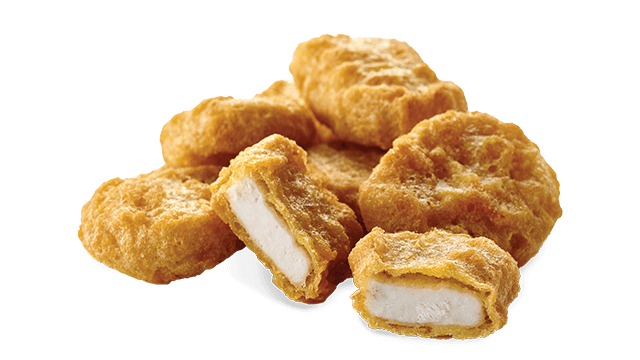

Breaded Chicken Nugget
Emulsion
Dried Parsley
Reduction
Fish Head and Frame
Emulsion
Mango
Reduction
Restructured Steak
Emulsion

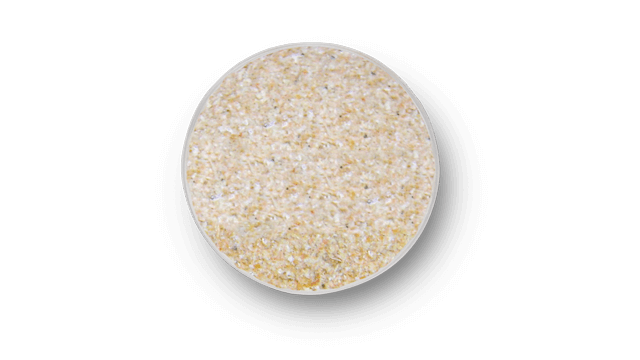

Shrimp Shell
Reduction
Turkey Roll
Reduction
Turkey Sausage
Reduction
Specs
| LENGTH | 93.19″ (2367 mm) |
| WIDTH | 58.78″ (1493 mm) |
| HEIGHT | 67.75″ (1721 mm) |
| NET WEIGHT | 3300 lb (1497 kg) |
| SCREW FEEDER MOTOR | Screw Feeder equipped with a gearmotor and VFD (variable frequency drive) – 5 HP (3.7 kW) |
| IMPELLER MOTOR | 100 HP (75 kW) |
Operating Principle
Comitrol® Processor Model 5600
- Impeller
- Cutting Head
- Screw Feeder
- Horizontal Separators
- Vertical Knives
Types of Cuts
Cutting Head
Utilizes 6″ (152.4 mm) diameter Cutting Heads paired with a variety of impellers to produce coarse to fine reductions.
Note: Products that are explosive or create a potentially explosive atmosphere should not be processed by any standard Urschel machine. A potentially explosive atmosphere could be created if processing your product creates fumes or dust in sufficient concentrations. In such cases, customers may work with Urschel to develop a customized solution through a certified print (CP) process.
Want to Test Cut Your Specific Product?
Contact Urschel to learn more about the product test cutting process.

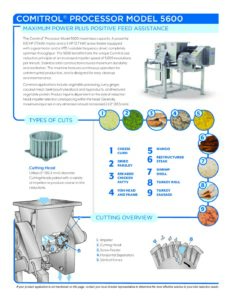

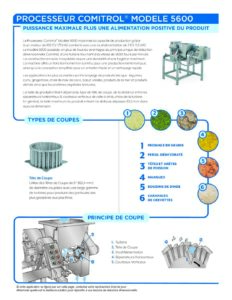

Media & Brochures
Photography

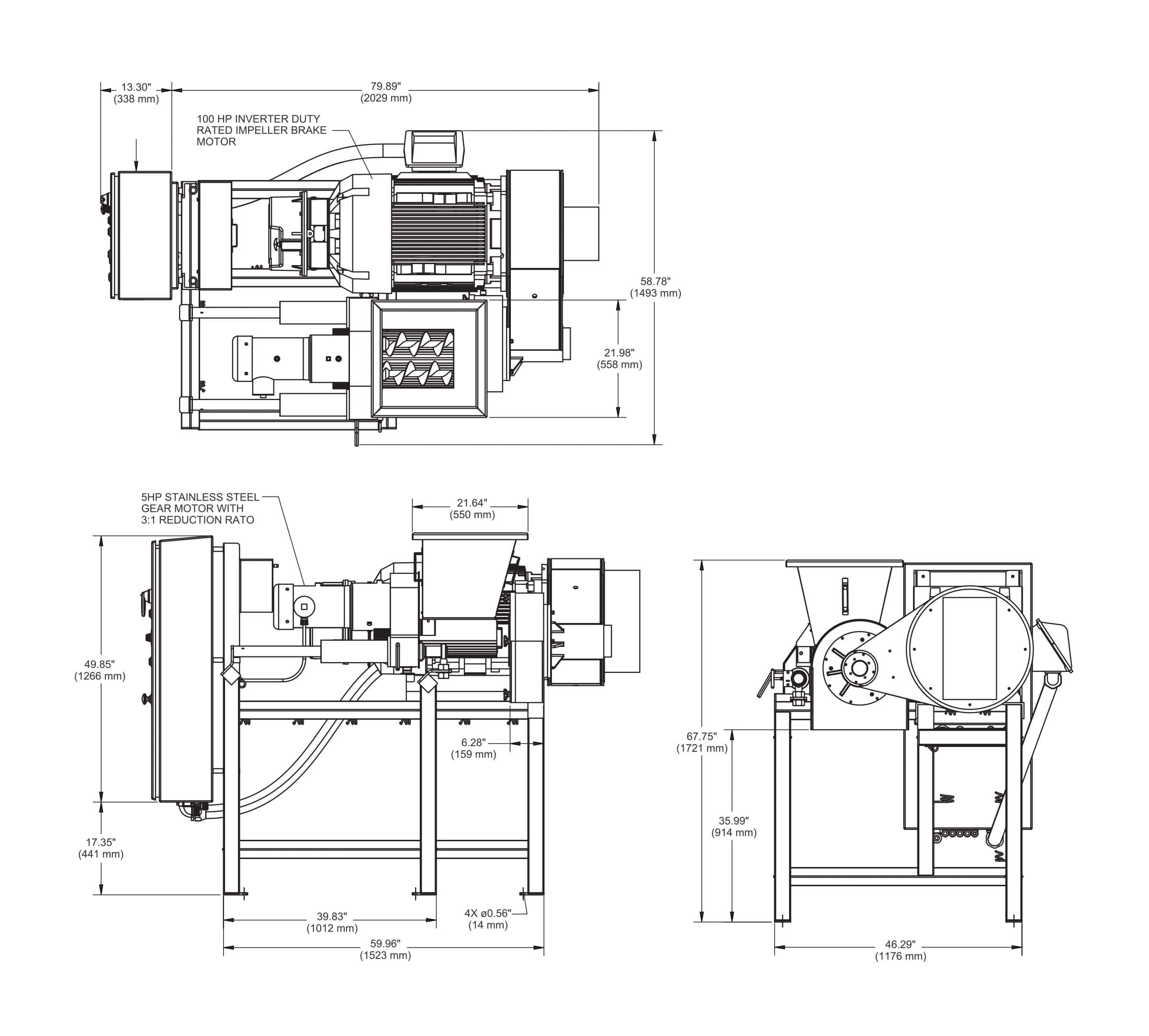

Dimensional Drawings
