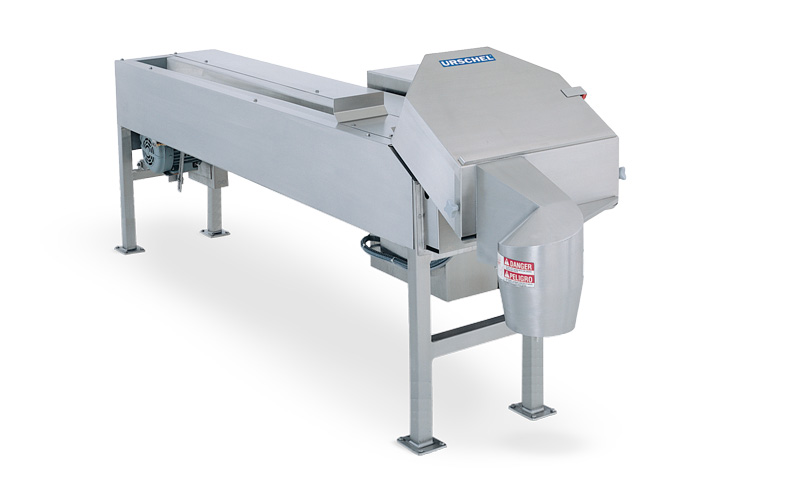

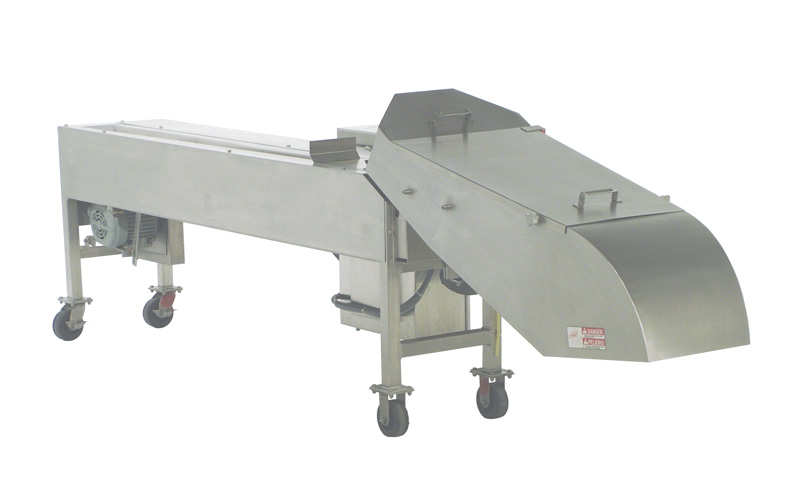

Model OC Urschel Slicer — Precision Crosscut Bias Slice Machine
Precision Bias Slice Performance with the Model OC Urschel Slicer
The Model OC is a specialized Urschel slicer engineered to produce consistent, high-quality bias slice cuts on elongated products. Designed for industrial food processing applications, this Model OC slicer handles products such as bread, carrots, celery, okra, plantain, and similar items with exceptional uniformity and efficiency. Like other Urschel slicers, the Model OC is built for durability, sanitation, and reliable high-capacity operation.
-
Key Features
-
Applications
-
Specs
-
Types of Cuts
-
Media & Brochures
Key Features
VARIETY OF BIAS SLICES
Produces a variety of crinkle or flat bias slices.
LARGE SLICING WHEEL
16.625″ (422.3 mm) diameter bias slicing wheel.
IDEALLY SUITED FOR
Elongated products.
UNINTERRUPTED PRODUCTION
Features continuous operation for uninterrupted production.
MAX INFEED IS 2.5″ (63.5 MM)
Accepts products up to 2.5″ (63.5 mm) in diameter or width.
Applications
The Model OC specializes in crosscut bias slicing of elongated products including bread, carrots, celery, okra, and plantain. The machine offers a variety of slice options, continuous operation for uninterrupted production, and simplified design for easy cleanup and maintenance.
The Model OC may contain parts protected by U.S. Patent No. 5992284.

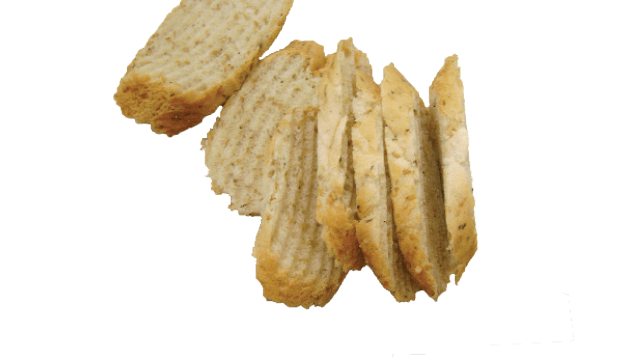

Bread
1/4″ (6.4 mm) Bias Crinkle Slice

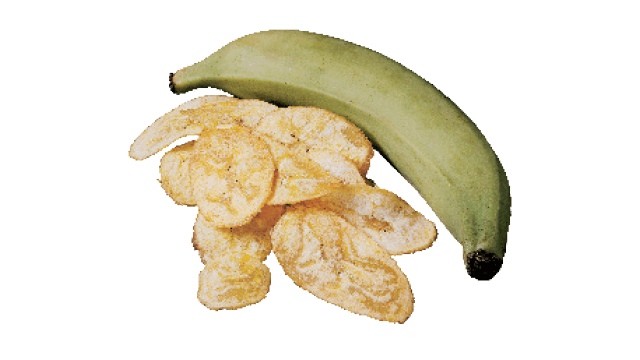

Plantain
.060″ (1.5 mm) Bias Flat Slice using MicroSlice® Wheel Special Application; Consult Factory

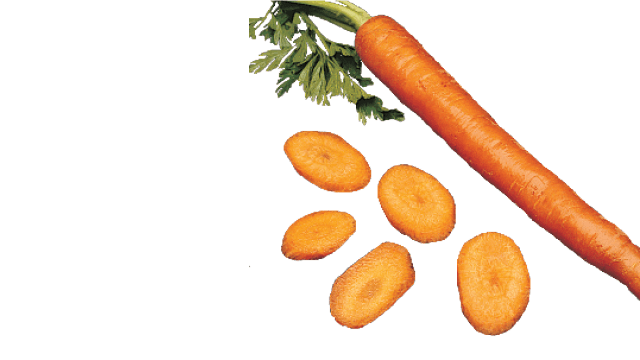

Carrot
1/8″ (3.2 mm) Bias Flat Slice
Celery
1/8″ (3.2 mm) Bias Flat Slice
Specs
| LENGTH | 117.04″ (2973 mm) |
| WIDTH | 35.08″ (891 mm) |
| HEIGHT | 44.70″ (1135 mm) |
| NET WEIGHT | 770 lb (349 kg) |
| MOTOR | 3 HP (2.2 kW) |
| FEED BELT MOTOR | 3/4 HP (.56 kW) |

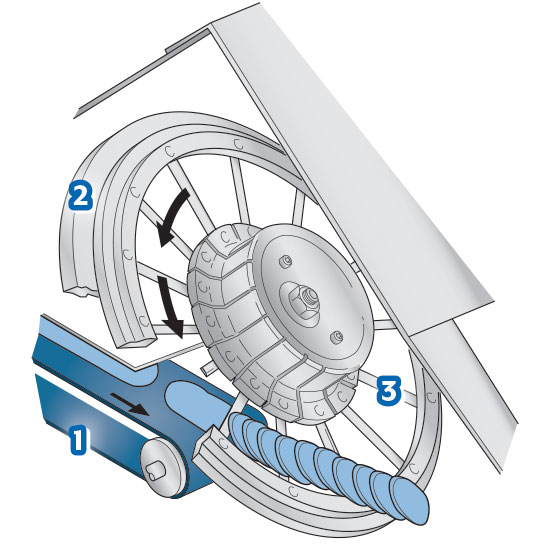

Operating Principle
Model OC Crosscut Bias Slicer
- Conveyor Belt
- Slicing Wheel
- Knives
Types of Cuts

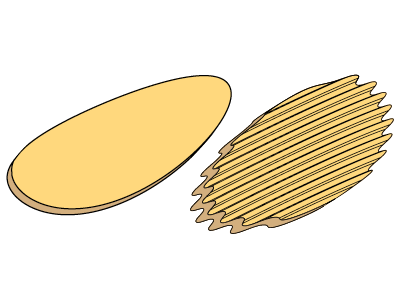

Bias Flat Slices & Bias Crinkle Slices
Wide range from 1/16 – 1-3/4″ (1.6 – 44.5 mm).

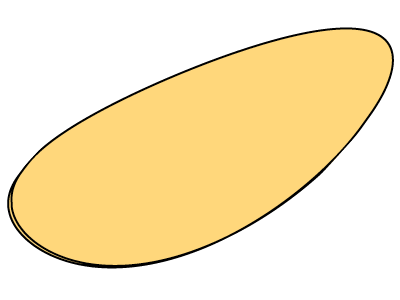

Bias Flat Slices When Specially Equipped With a MicroSlice® Wheel
.030 – .120″ (.8 – 3 mm). Consult factory. Requires certified print.

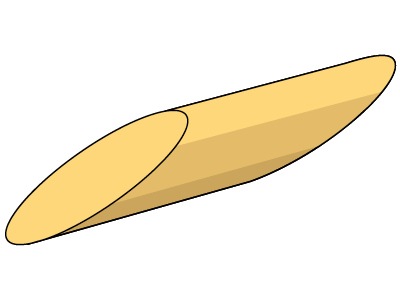

45-Degree Angle Cutting
Model OC-45 is also available to slice at a 45-degree angle.
Want to Test Cut Your Specific Product?
Contact Urschel to learn more about the product test cutting process.

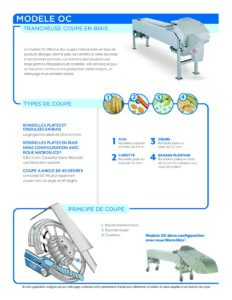

Media & Brochures
Photography
Videos

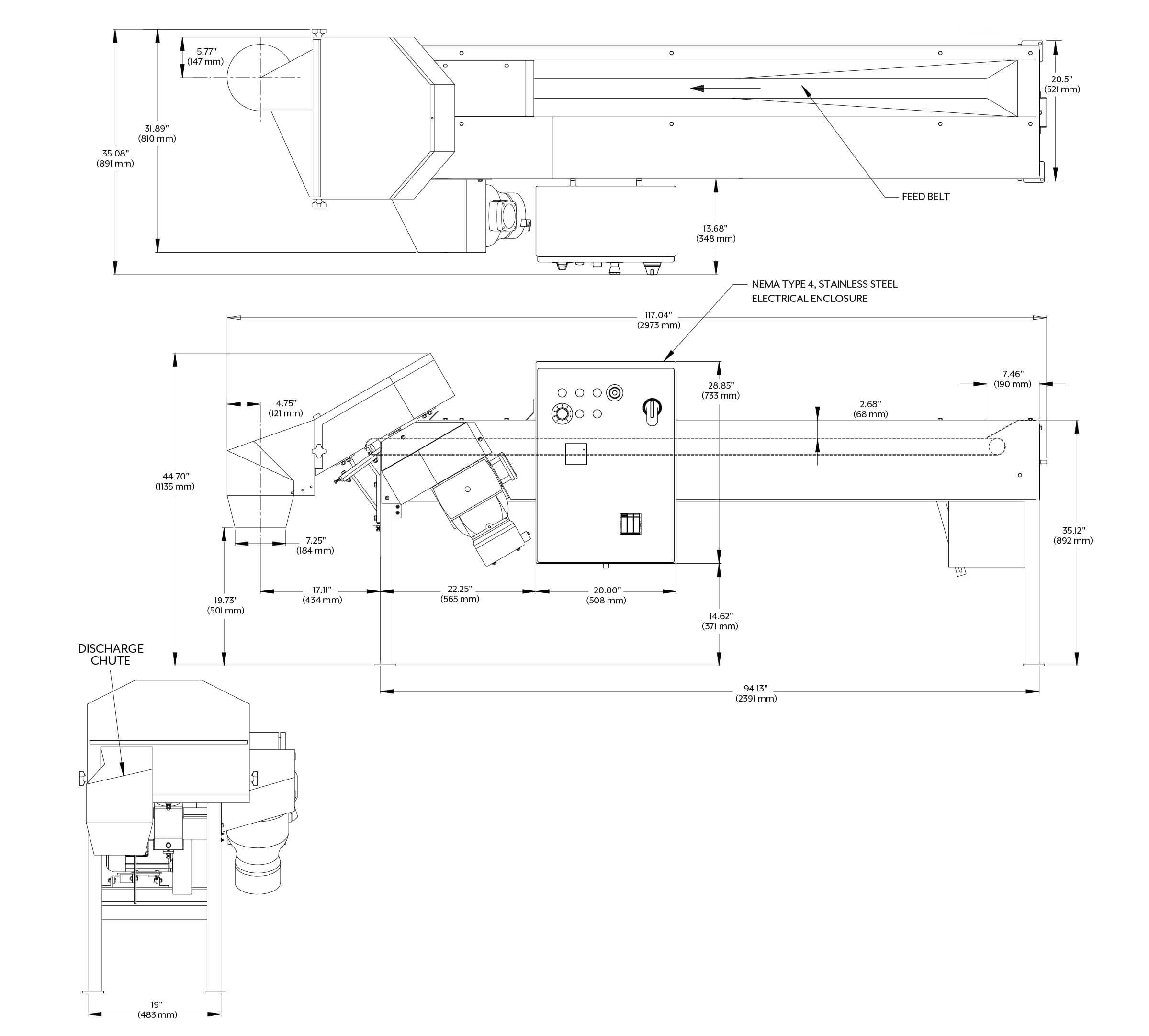

Dimensional Drawings
