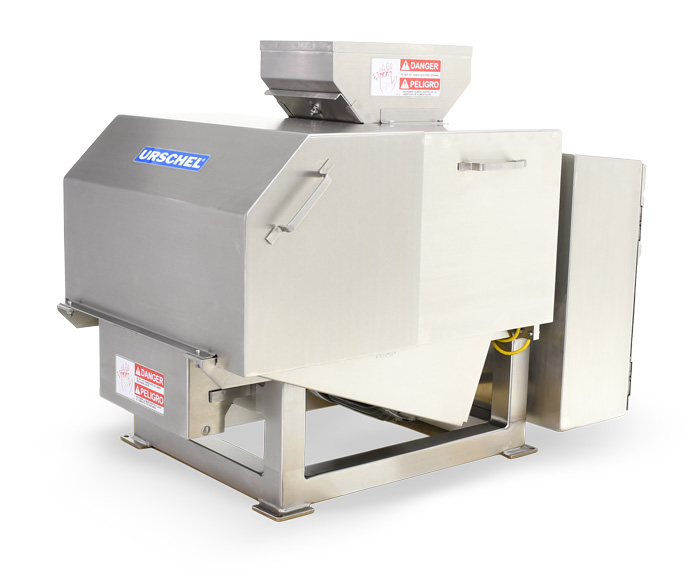

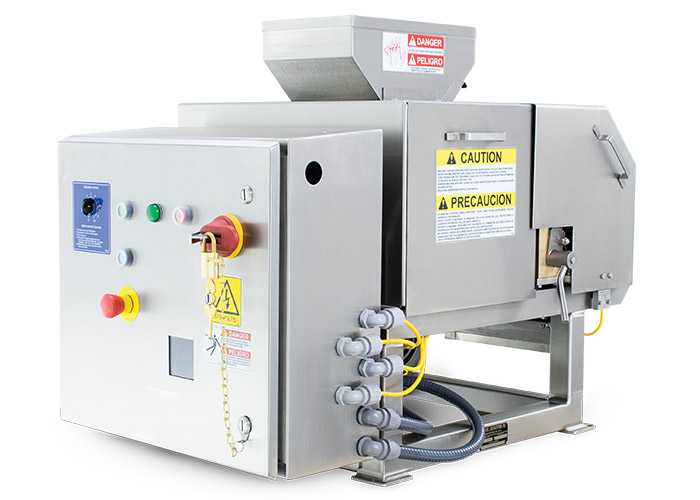

Model N Granulator
Granulator/Slitter/Scarifier
By cutting the product, instead of hammering or chopping, fewer fines are produced and increased in-target product specifications are achieved.
-
Key Features
-
Applications
-
Specs
-
Types of Cuts
-
Media & Brochures
Key Features
GRANULATE
Granulate nut meats, cookies, and crackers.
CAPABLE MOTOR
3/4 HP (.56 kW) motor
SCARIFY
Scarify various frozen, dehydrated, and rehydrated vegetables and fruits, such as peas and raisins.
UNINTERRUPTED PRODUCTION
Features continuous operation for uninterrupted production, and simplified design for easy cleanup and maintenance.
SLIT
Slit capsules and other products.
Applications
The Model N granulates nuts, cookies, and crackers, and scarifies frozen or dehydrated vegetables or fruits such as blueberries, cranberries, raisins, and peas. An adjustable gate, feed roll, and stripper plate accommodate changes in graded product size. By cutting the product, instead of hammering or chopping, fewer fines are produced and tighter product specifications are achieved.
The Model N features simplified operation for uninterrupted production, and is designed for easy cleanup and maintenance. Readjusting gate, stripper plate, and feed roll for additional passes to obtain smaller particle sizes is easily accomplished depending on desired end product dimension.

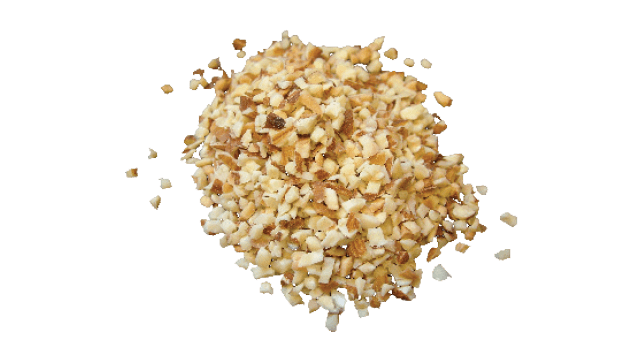

Almond
1/8″ (3.2 mm) Granulation
Peas
Scarified
Pecan
5/16″ (7.9 mm)

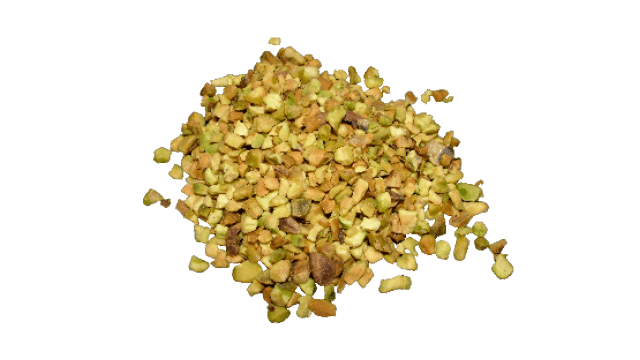

Pistachio
1/8″ (3.2 mm)
Walnut
1/4″ (6.4 mm)
Graham Cracker
3/16″ (4.8 mm)
Specs
| LENGTH | 40.30″ (1024 mm) |
| WIDTH | 26.57″ (675 mm) |
| HEIGHT | 30.21″ (767 mm) |
| NET WEIGHT | 450 lb (204 kg) |
| MOTOR | 3/4 HP (.56 kW) |

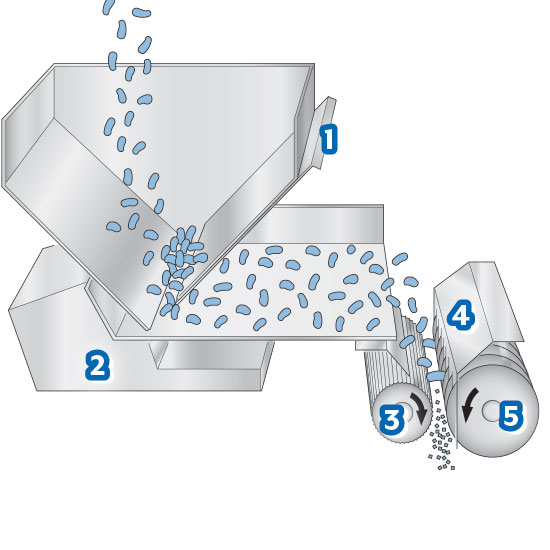

Operating Principle
Model N Granulator
- Adjustable Gate
- Vibratory Feeder
- Adjustable Feed Roll
- Adjustable Stripper Plate
- Circular Knives
Types of Cuts
Granulation
3/32 to 3/8″ (2.4 to 9.5 mm)
Want to Test Cut Your Specific Product?
Contact Urschel to learn more about the product test cutting process.
Media & Brochures
Photography

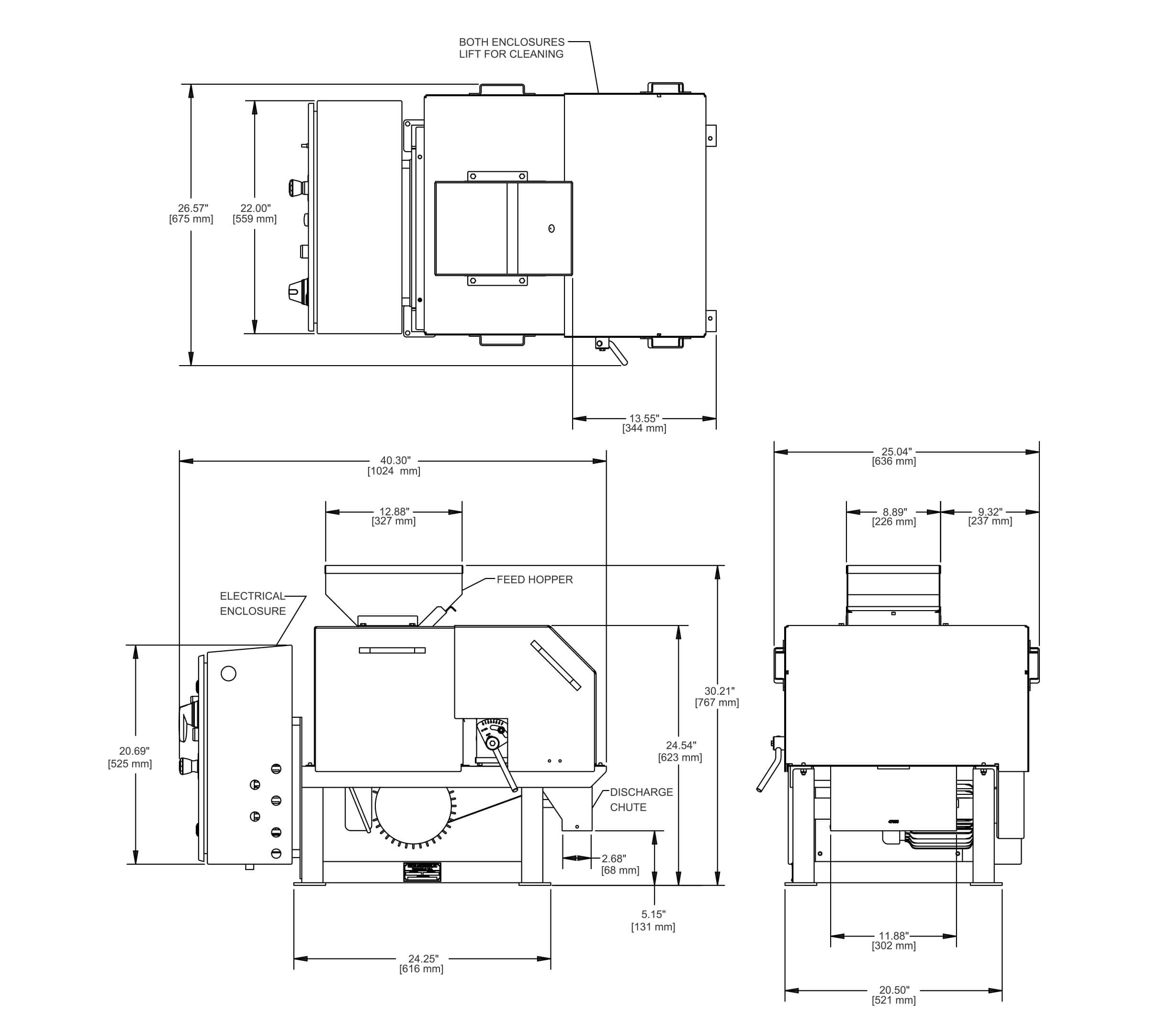

Dimensional Drawings
