Comitrol® Processor Model 1500
Liquid & Finishing Applications
The Comitrol® Processor Model 1500 is specifically designed for viscous and liquid product applications.
-
Key Features
-
Applications
-
Specs
-
Types of Cuts
-
Media & Brochures
Key Features
MAX INFEED 3/8″ (9.5 MM)
Maximum input size in any dimension should not exceed 3/8″ (9.5 mm).
MICROCUT HEAD EQUIPPED
Offers the smallest in particle sizes from .0012 to .0237″ (.03 to .6 mm)
LIQUID FINISHER
Recommended for specific applications including finishing liquids or slurries.
UNINTERRUPTED PRODUCTION
Features continuous operation for uninterrupted production and simplified design to ease cleaning and maintenance.
Applications
The Comitrol® Processor Model 1500 is specifically designed for viscous and liquid product applications including finishing. It utilizes the Microcut 6″ (152.4 mm) diameter style reduction heads. Recommended for specific applications where refining or finishing of free-flowing liquids or viscous slurries is desired. Product input is dependent on the style of reduction head, impeller selection, and spacing within the head. Generally, maximum input size in any dimension should not exceed 3/8″ (9.5 mm).
The Model 1500 is equipped with the microcut cutting head and corresponding impeller to process a variety of products including fruit nectars, soy beans, ketchup, barbecue sauce, vegetable purees, beverage concentrates, and creams and ointments. The machine features continuous operation for uninterrupted production, and is designed for easy cleanup and maintenance.
Almond
Paste
Benzoyl Peroxide
Emulsion
Buffalo Sauce
Puree
Chili Paste
Puree
Collagen
Emulsion
Elbow Macaroni
Powder
Gelatin Capsule Ingredient
Mango
Puree
Seaweed
Flake
Soy, Rice, Oat, Almond, Coconut
Milk
Tomato Catsup
Puree
Specs
Comitrol® Processor Model 1500
| LENGTH | 51.89″ (1318 mm) |
| WIDTH | 33.03″ (839 mm) |
| HEIGHT | 72.17″ (1833 mm) * |
| NET WEIGHT | 1100 lb (499 kg) |
| MOTOR | 15, 30, or 40 HP (11.2, 22.4, or 30 kW) |
*Usual height with 40 HP motor is shown.
Measurements and weights may vary depending on machine configuration.

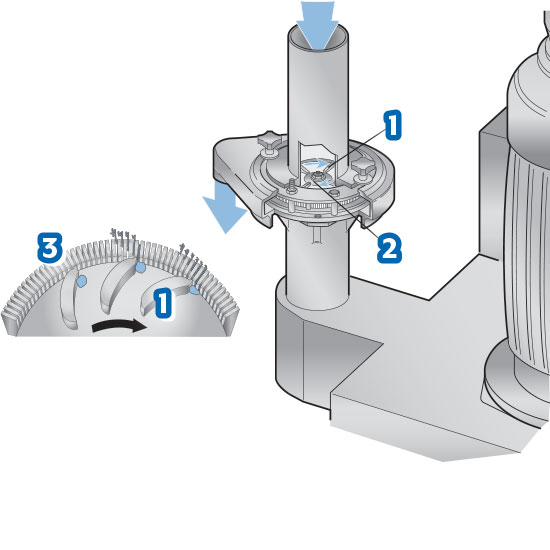

Operating Principle
Comitrol® Processor Model 1500
- Impeller
- Microcut Head
- Microcut Blades
Types of Cuts
Microcut Head
Utilizes 6″ (152.4 mm) diameter Microcut Head to produce particle sizes ranging from coarse to fine emulsions. To ensure the proper combination of cutting parts, Urschel recommends a free-of charge test cut of your application. Contact Urschel for more information.
Note: Products that are explosive or create a potentially explosive atmosphere should not be processed by any standard Urschel machine. A potentially explosive atmosphere could be created if processing your product creates fumes or dust in sufficient concentrations. In such cases, customers may work with Urschel to develop a customized solution through a certified print (CP) process.
Want to Test Cut Your Specific Product?
Contact Urschel to learn more about the product test cutting process.
Media & Brochures
Photography

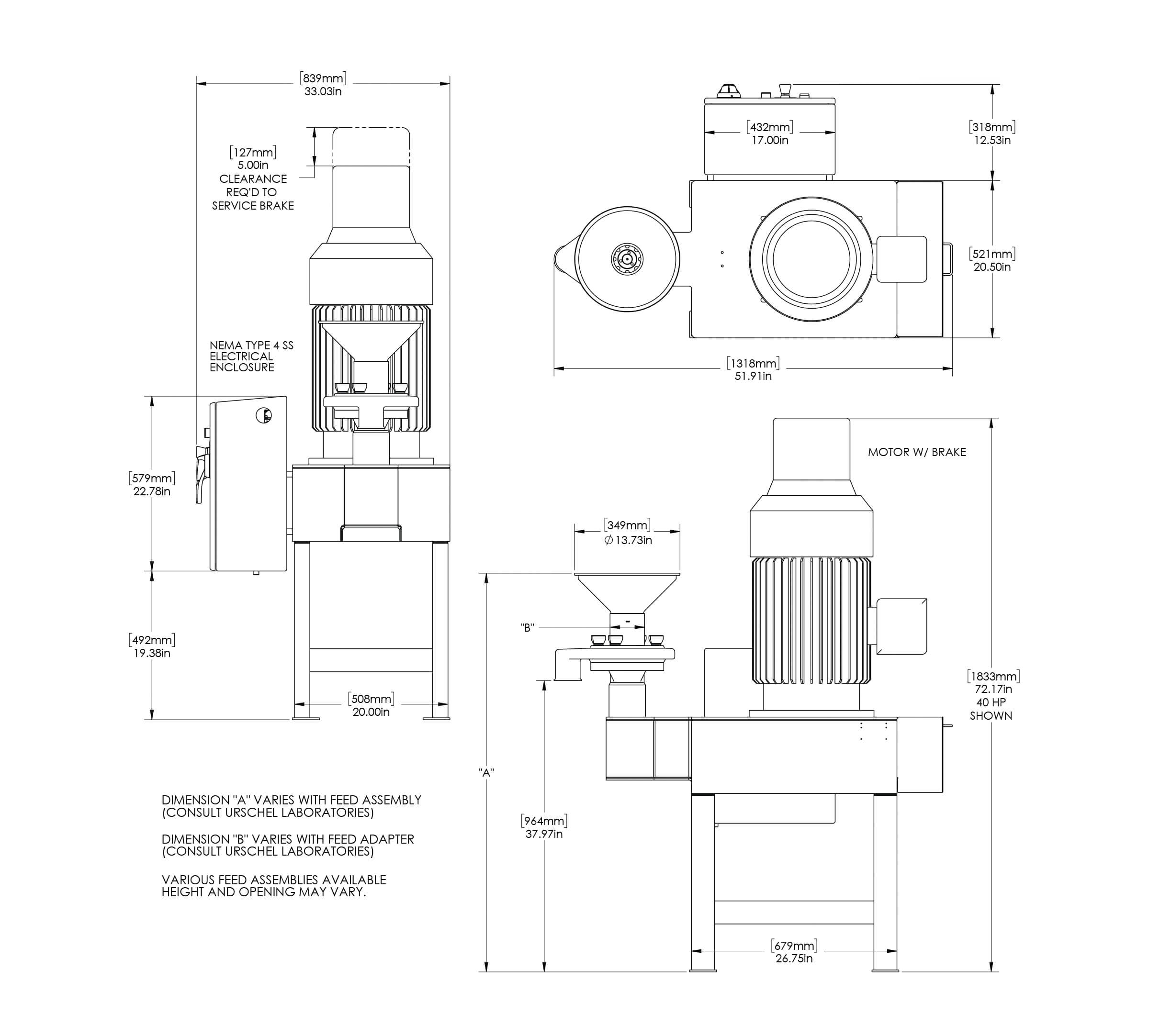

Dimensional Drawings
