Comitrol® Processor Model 3000
High Moisture Content Applications
The Comitrol Processor Model 3000 is ideally suited for milling products with a high moisture content such as whole kernel sweet corn, cooked meats, and vegetables.
-
Key Features
-
Applications
-
Specs
-
Types of Cuts
-
Media & Brochures
Key Features
HIGH MOISTURE CONTENT MILLING
Ideally suited for milling products with a high moisture content such as vegetables and cooked meats.
MULTIPLE MOTOR OPTIONS
Available 15, 30, or 40 HP (11.2, 22.4, or 30 kW) motor.
EASE OF MAINTENANCE
The two piece enclosure simplifies disassembly, cleaning, and care of the cutting parts.
UNINTERRUPTED PRODUCTION
Features continuous operation for uninterrupted production and simplified design to ease cleaning and maintenance.
Applications
The Comitrol Processor Model 3000 is ideally suited for milling products with a high-moisture content such as whole kernel sweet corn, cooked meats, and vegetables. Product input is dependent on the style of reduction head, impeller selection, and spacing within the head. Generally, maximum input size in any dimension should not exceed 2-1/2″ (63.5 mm).
The two piece enclosure simplifies disassembly, cleaning, and care of the cutting parts. Stainless steel construction ensures maximum durability and sanitation. The machine features continuous operation for uninterrupted production, and is designed for easy cleanup and maintenance.
Beef Tissue
Emulsion
Corn Kernel
Reduction
Creamed Corn
Puree
Red Bean
Paste
Ricotta
Puree
Soybean
Paste
Squid/Fish Mixture
Emulsion
Specs
| LENGTH | 51.69″ (1313 mm) |
| WIDTH | 32.92″ (836 mm) |
| HEIGHT | 71.75″ (1822 mm) * |
| NET WEIGHT | 1100 lb (499 kg) |
| MOTOR | 15, 30, or 40 HP (11.2, 22.4, or 30 kW) |
*Usual height with 40 HP motor is shown.
Measurements and weights may vary depending on machine configuration.

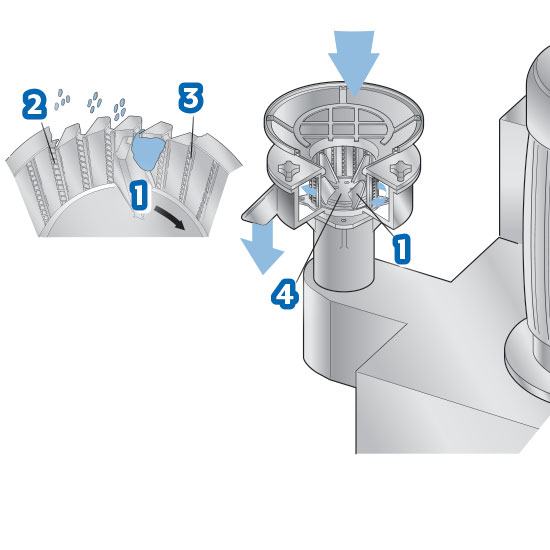

Operating Principle
Comitrol® Processor Model 3000
- Impeller
- Horizontal Separators
- Vertical Knives
- Cutting Head
Types of Cuts
Cutting Head
Utilizes 6″ (152.4 mm) diameter Cutting Heads paired with a variety of impellers to produce coarse to fine reductions.
Note: Products that are explosive or create a potentially explosive atmosphere should not be processed by any standard Urschel machine. A potentially explosive atmosphere could be created if processing your product creates fumes or dust in sufficient concentrations. In such cases, customers may work with Urschel to develop a customized solution through a certified print (CP) process.
Want to Test Cut Your Specific Product?
Contact Urschel to learn more about the product test cutting process.

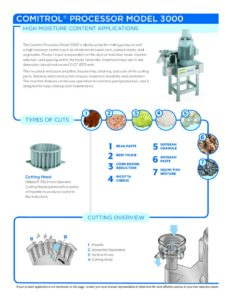

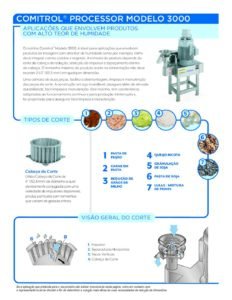

Media & Brochures
Photography

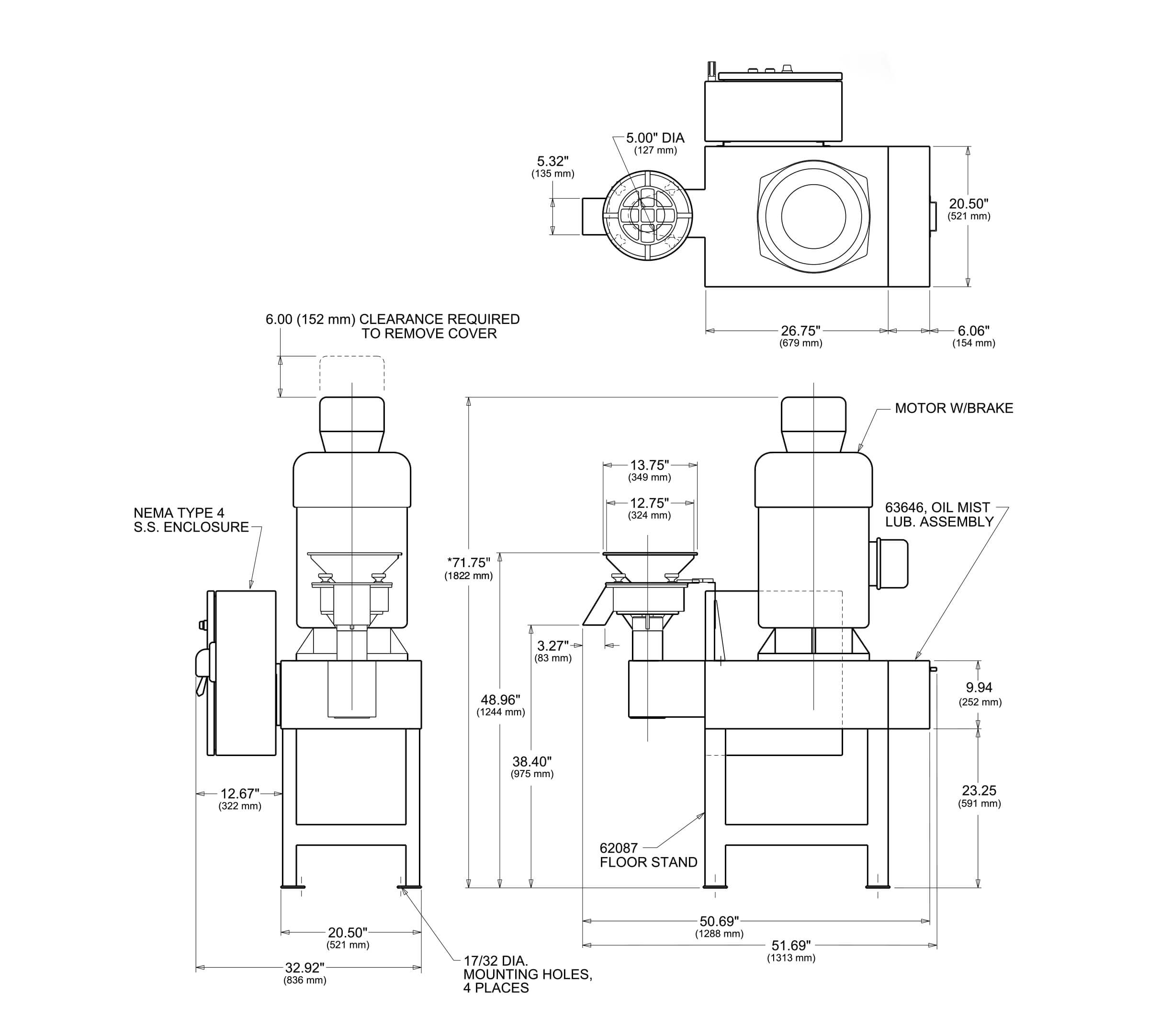

Dimensional Drawings
