Affinity® CD-L Dicer
Dried or Sticky Fruits
The Affinity® CD-L successfully processes difficult-to-cut products including dried, sticky, or candied fruits and bakery products.
-
Key Features
-
Applications
-
Specs
-
Knife Info
-
Types of Cuts
-
Media & Brochures
Key Features
SMALL FOOTPRINT
The Affinity® CD-L Dicer takes up minimal space on the production floor.
EASE OF SANITATION AND MAINTENANCE
Rounded tube frame and angled/rounded surfaces ease washdowns and deter bacterial growth. Hinged swingaway panels ease maintenance.
PROCESS DIFFICULT-TO-CUT PRODUCTS
The Affinity® CD-L Dicer excels at processing challenging, difficult-to-cut applications such as dried or candied fruits.
SANITARY ZONE DESIGN
Sanitary design with all mechanical components completely separate from the food zone.
OPTIONAL OIL SPRAY SYSTEM
Optional integrated oil spray system lubricates circular knives to assist in the processing of sticky products.
HIGH CAPACITY PRODUCTION
High capacity capabilities and continuous operation for uninterrupted production.
HEAVY DUTY
Optional outboard bearing supports the cutting spindles to assist in the processing of tough, heavy-duty applications.
URSCHEL SERVICE & SUPPORT
Urschel cutting machinery is backed by solid service and support. Urschel customer service is just as reliable and dependable as the rugged equipment Urschel manufactures.
Applications
The new Affinity® CD-L Dicer produces uniform dices in the small to intermediate size range. The CD-L combines the utility of Urschel Models CD-A and L-A, plus working design elements from the Affinity Integra® Dicer. Processors replacing Model L-A’s with the CD-L achieved more than twice the capacity.
Sanitary in design, the food zone is completely separated from the mechanical zone. Hinged access panels ease maintenance and washdowns, and offer full access to conveniently changeover parts. Feed spindle, feed drum, and 5 HP (3.7 kW) motor work effectively with the cutting components in the successful processing of dried fruits and other products. Optional integrated oil spray system lubricates circular knives to assist in the processing of sticky products. Equipped with stainless steel product contact parts, the dicer offers simple operation at the push of a button and may be operated at high or low speed depending on processing goals. The dicer features continuous operation and is designed for easy cleanup and maintenance. Maximum infeed product should not exceed 1/2″ (12.7 mm) depending on the compressibility of the product.

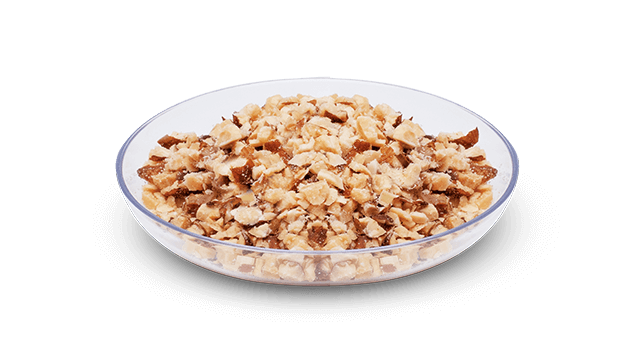

Almond
1/8″ (3.2 mm) Dice

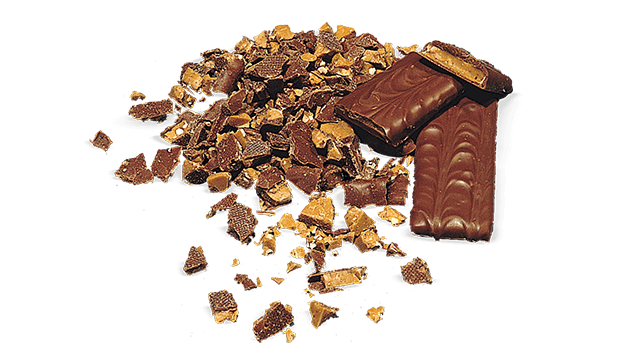

Chocolate Covered Toffee Bar
3/16″ (4.8 mm) Granulation

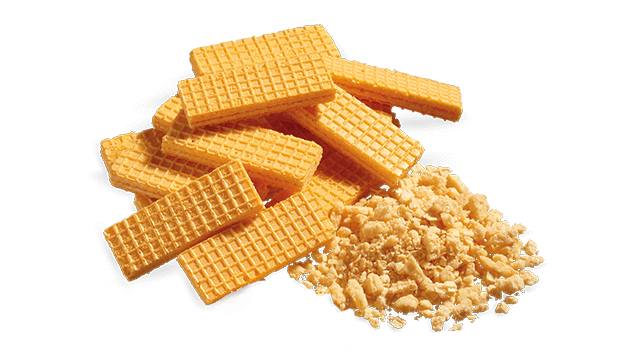

Cream Filled Wafer Cookie
1/4″ (6.4 mm) Granulation

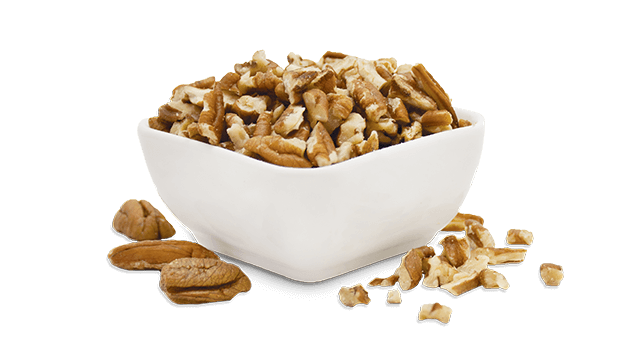

Pecan
3/16″ (4.8 mm) Granulation
Bacon Jerky
1/4″ (6.4 mm) Dice

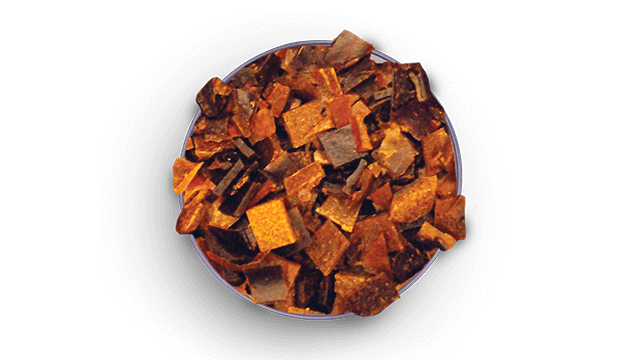

Fruit Leather
3/8″ (9.5 mm) Dice
Chocolate
1/8″ (3.2 mm) Granulation

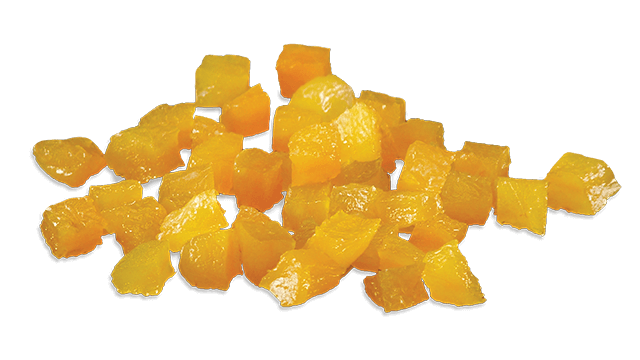

Dried Apricot
3/8″ (9.5 mm) Dice
Dried Date
3/8″ (9.5 mm) Dice
Sugar Infused Cranberry
5/32″ (4 mm) Strip
Specs
| LENGTH | 42.25″ (1073 mm) |
| WIDTH | 45.89″ (1166 mm) |
| HEIGHT | 67.53″ (1715 mm) |
| NET WEIGHT | 1100 lb (499 kg) |
| MOTOR | 5 HP (3.7 kW) |

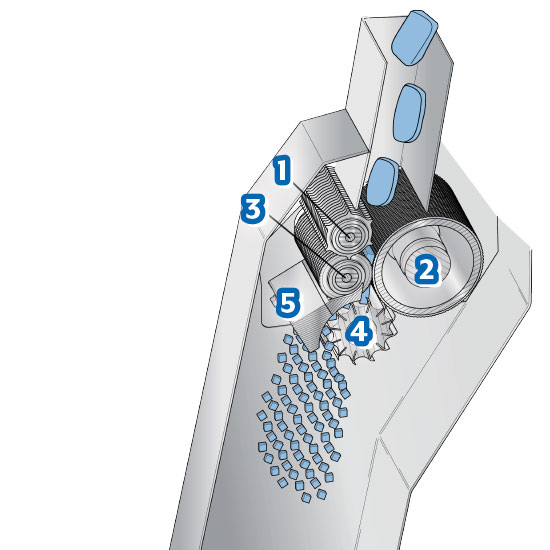

Operating Principle
Affinity® CD-L Dicer
- Feed Spindle
- Feed Drum
- Circular Knives
- Crosscut Knives
- Stripper Plate
Knife Info
2-Dimensional Cutting
Dices/Strips/Granulations
2-dimensional cutting is achieved by using the appropriate circular and crosscut spindle set-up.
Controlled Precision
Specially Designed Feed Drum
Specially designed feed drum profile assists in the positive movement of product throughout the cutting components.
Takes on Heavy Duty Applications
Outboard Bearing
Optional outboard bearing works with heavy duty knives and components to overcome tough applications such as frozen-tempered bacon dicing.
Cantilevered Cutting Spindles
Simplify Cleaning and Maintenance
Lightweight, cantilevered spindles remove completely from the machine for cleaning and maintenance.
Need Help with Knives for Your Urschel Cutting Machinery?
Contact us today to get help with upgrading or replacing your knives with original Urschel parts.
Types of Cuts

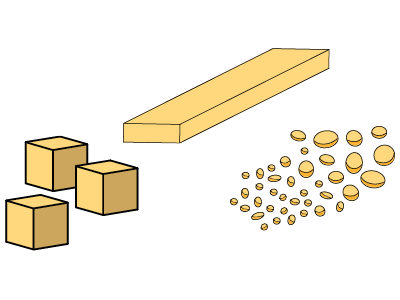

Dice/Strip/Granulate
2-dimensional cutting is achieved by using the appropriate circular and crosscut spindle set-up.
Circular Knife Cuts: 1/8 to 2″ (3.2 to 50.8 mm)
Crosscut Knife Cuts: 1/8 to 1-1/2″ (3.2 to 38.1 mm)
Want to Test Cut Your Specific Product?
Contact Urschel to learn more about the product test cutting process.
Media & Brochures
Photography

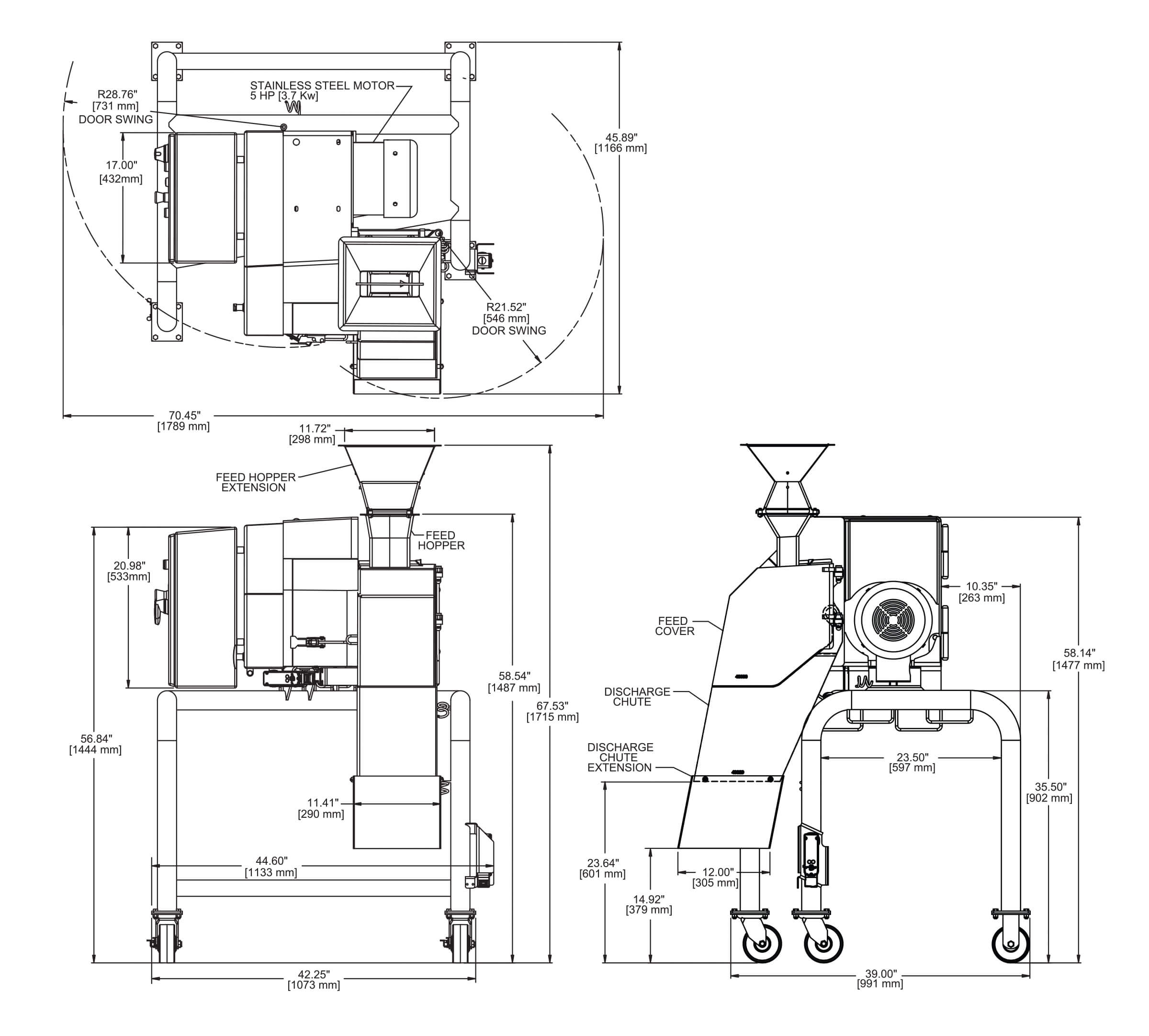

Dimensional Drawings
Find My Sales Rep
Where are you located?
Search United States
Search Globally
Brochures & Guides

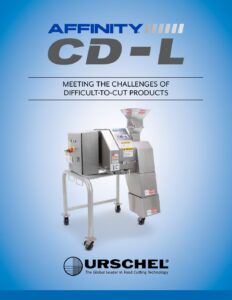

Machine Brochure Affinity® CD-L Dicer
Download (link opens in new window)

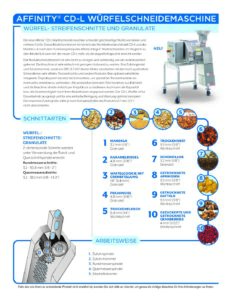

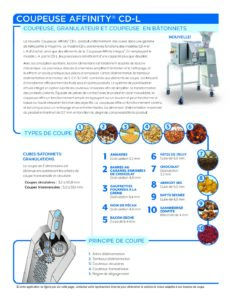

Fact Sheet Affinity® CD-L Dicer
Download (link opens in new window)
Machine Brochure Affinity® CD-L Dicer (FR)
Download (link opens in new window)
Machine Brochure Affinity® CD-L Dicer (RU)
Download (link opens in new window)
Fact Sheet Affinity® CD-L Dicer (FR)
Download (link opens in new window)
Fact Sheet Affinity® CD-L Dicer (DE)
Download (link opens in new window)
Fact Sheet Affinity® CD-L Dicer (PL)
Download (link opens in new window)

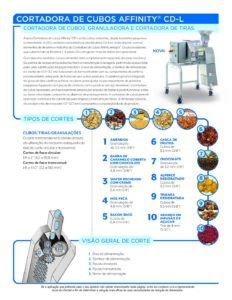

Fact Sheet Affinity® CD-L Dicer (POR)
