• High Capacity Dicer

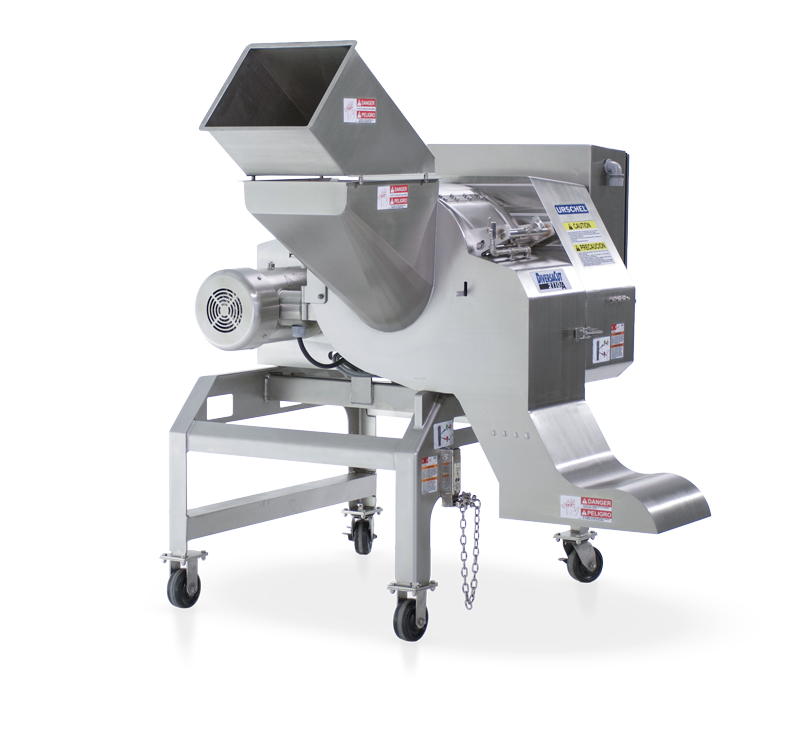

    DiversaCut 2110A® Dicer

    Accepts Products up to 10"

    Largest in the DiversaCut® Line

DiversaCut 2110A™ Dicer

THE NEWEST DICER IN THE DIVERSACUT® LINE!

  • Accepts Large Infeed Products of up to 10 inches!
  • The DiversaCut 2110A™ Dicer dices, strips, slices, granulates, and shreds at high production capacities.
  • With a maximum infeed of 10" (254 mm) in any dimension, the machine offers cost-savings by eliminating the need to pre-cut product.
  • This new dicer promotes more precise cut tolerances with slice adjustment and lockdown features.
  • The machine also features fine-tuning through adjustable collars on both cutting spindles for ultimate precision.

Applications

The largest machine in the DiversaCut line, the DiversaCut 2110A™ Dicer produces dices, strips, slices, granulations, and shreds at high production capacities. With a maximum infeed of 10" (254 mm) in any dimension, the machine offers cost-savings by eliminating the need to pre-cut product. This new dicer promotes more precise cut tolerances with slice adjustment and lockdown features. The machine also features fine-tuning through adjustable collars on both cutting spindles for ultimate precision. Products widely processed include: potatoes, carrots, onions, cabbage, peppers, celery, tomatoes, aloe vera, apples, cooked bacon, cooked turkey or beef roasts, candy granulations, papaya, breads, cookie granulations, ham, fish, pepperoni, squash, pet food, cassava, kohlrabi, cucumbers, eggplant, zucchini, mango, ginger, kale, leek, peaches, pineapple, and strawberries.

  • Apples

    3/8 inch (9.5 mm) Dice

  • Bread

    1/4 x 3/8 x 3/16 inch (6.4 x 9.5 x 4.8 mm) Dice

  • Beet

    Crinkle Vegetable Noodle Cut

  • Butternut Squash

    Crinkle Vegetable Noodle Cut

  • Cabbage

    1/8 x 1-1/2 x 1-1/2 inch (3.2 x 38.1 x 38.1 mm)

  • Candy Bar with Caramel and Nuts

    1/2 inch (12.7 mm) Granulation

  • Carrot

    Crinkle Strip

  • Carrot

    1/8 inch (3.2 mm) Strip Cuts

  • Carrot

    5/16 x 5/16 x 1-1/2 inch (7.9 x 7.9 x 38.1 mm)

  • Chocolate Chip Cookie Dough

    3/8 inch (9.5 mm) Dice

  • Eggplant

    3/4 inch (19.1 mm) Dice

  • Cooked Ham

    3/8 inch (9.5 mm) Dice

  • Hard Shell Candy

    Granulation

  • Onion

    1/4 inch (6.4 mm) Dice

  • Peaches

    1/2 inch (12.8 mm) Dice

  • Pepper

    Strip Cuts

  • Peppers

    1 inch (25.4 mm) Dice

  • Pepperoni

    1/4 inch (6.4 mm) Dice

  • Potatoes

    1/2 inch (12.7 mm) Deep Crinkle Strip Cut

  • Potatoes

    3/8 inch (9.5 mm) Crinkle Strips

  • Potatoes

    3/8 x 3/8 inch (9.5 x 9.5 mm) Crinkle Strips 1/4 x...

  • Yellow Squash

    Vegetable Noodle Cut

  • Sweet Potatoes

    1 x 1-3/4 x 1-1/2 inch (25.4 x 44.5 x 38.1 mm)

  • Sweet Potato

    Vegetable Noodle Cut

  • Tomatoes

    5/8 inch (15.9 mm) Dice

  • Preformed Turkey Roast

    1/2 inch (12.7mm) Dice

  • Cooked Turkey Breast

    Short Shreds

  • Preformed Turkey Roast

    1/4 x 1/4 inch (6.4 x 6.4 mm) x various lengths strips

  • Zucchini

    Crinkle Vegetable Noodle Cut

  • Zucchini

    Vegetable Noodle Cut

  • Zucchini

    1/4 inch (6.4 mm) Crinkle Slice

View this video featuring the DiversaCut 2110A (DCA) producing vegetable noodle cuts.

Machine Specs

Length:
64.07" (1627 mm)
Width:
63.62" (1616 mm)
Height:
68.44" (1738 mm)
Net Weight:
1500 lb (681 kg)
Motor:
5 or 10 HP (3.7 or 7.5 kW)

Dimensional Drawing

Operating Principle

DiversaCut 2110A® Dicer

  1. Product is delivered to a feed hopper, then enters a rotating impeller [ 1 ].
  2. The resulting centrifugal force holds the product against the inside of the case as the impeller paddles carry the product past the slicing knife [ 2 ].
  3. An adjustable case gate [ 3 ] on the impeller case allows product to move outward across the edge of the slicing knife. The distance between the edge of the slice gate and the slicing knife edge determines the slice thickness
  4. As the slices emerge, they are guided between the slicing knife and stripper plate [ 4 ]
  5. before entering circular knives [ 5 ] where they are cut into strips.
  6. The strips pass directly into the crosscut knives [ 6 ] which make the final cut.

Types of Cuts

SLICES

The machine can make a full range of slices by removing the crosscut and circular knife spindles.

Flat or crinkle slices

1/16 to 1" (1.6 to 25.4 mm)

DICES/GRANULATIONS

A slicing knife, circular knife spindle, and crosscut knife spindle are used for dicing. Changing the dice size is done by using the required cutting spindles and adjusting the slice thickness.

Circular knife cuts

1/8 to 3" (3.2 to 76.2 mm)

Crosscut knife cuts

3/32 to 1-1/2" (2.4 to 38.1 mm)

Crosscut knife crinkle cuts (.076" depth)

9/32 to .583" (7.1 to 14.8 mm)

Crosscut knife deep crinkle cuts (.125" or .145" depth)

3/8 to 1/2" (9.5 to 12.7 mm)

Crosscut knife V-cuts

5/16 to 1/2" (7.9 to 12.7 mm)

STRIP CUTS

Flat and crinkle strip cuts in a variety of widths can be made by removing either the crosscut knife spindle orcircular knife spindle assembly.

SHREDS

Fine, medium, and coarse shreds can be produced on hot or chilled cooked meat products.
