Affinity® Integra-D Dicer

U.S.D.A., Dairy Division Accepted

  • A smaller version of the large Affinity® Dicer, the new U.S.D.A., Dairy Division accepted Affinity Integra-D features superior sanitation.
  • The clean cutting action achieves high yields of precise, targeted cut sizes well within customer parameters. Feed spindle and feed drum maintain positive feeding of sticky or moisture-rich products to promote controlled, precision cutting.
  • Stainless steel design. The food zone is completely separate from the mechanical zone. Hinged panels provide full access to facilitate and expedite cleaning and maintenance procedures.
  • The Integra-D effectively processes all types of cold-temperature cheeses including high-fat or imitation varieties.
  • The Integra-D's turnkey approach fits easily into production lines and is also designed to replace in-line RA series machines offering processors a beneficial upgrade.
  • The machine features continuous operation for uninterrupted production.

Applications

The Affinity® Integra-D Dicer is the newest U.S.D.A., Dairy Division accepted model manufactured by Urschel. The Integra-D's turnkey approach fits easily into production lines, and is also designed to replace in-line RA series machines - offering processors a beneficial upgrade with the ultimate in sanitation, a larger infeed, larger impeller case, newer design, and potentially 20 to even 50 percent higher capacities. The dicer produces precision small to mid-range cut sizes and is a scaled-down version of the large Affinity Dicer. The high-performance dicer offers simple operation at the push of a button, and easy to follow steps for maintenance and changeovers. It accepts infeed product up to 4.5" (114 mm). With similar characteristics as the large Affinity, it effectively processes all types of cold-temperature cheeses including high-fat or imitation varieties. The machine features continuous operation for uninterrupted production.

  • Blue Cheese

    3/8 inch (9.5 mm) Crumble

  • Cheddar

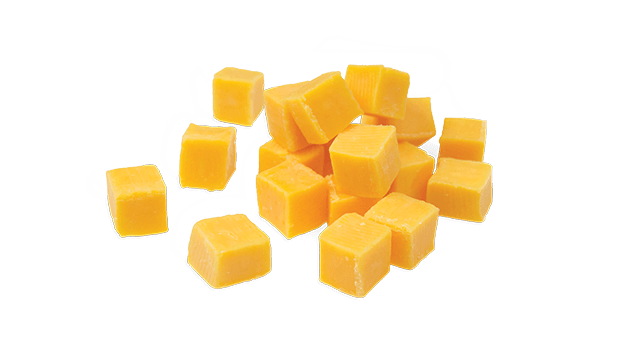

    1/4 inch (6.4 mm) Dice

  • Colby Jack

    3/8 inch (9.5 mm) Dice

  • Imitation Mozzarella

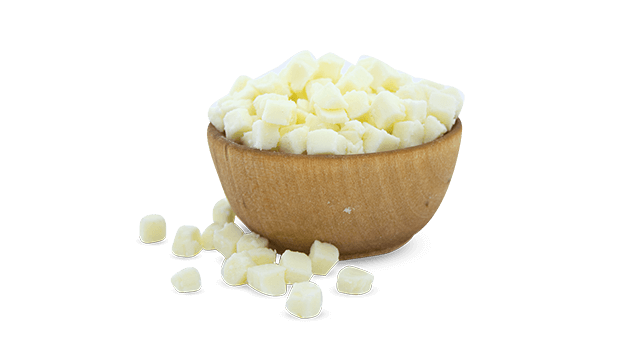

    1/4 x 1/4 x 1/8 inch (6.4 x 6.4 x 3.2 mm) Dice

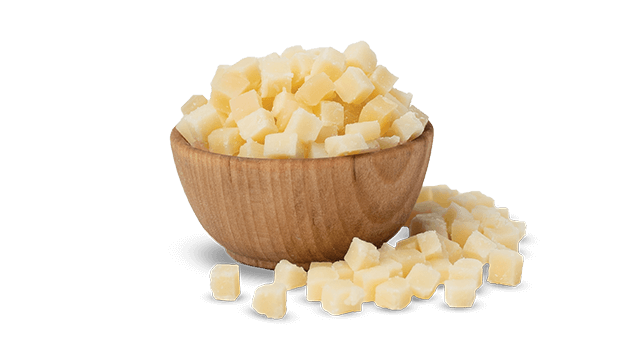

  • Parmesan

    1/4 inch (6.4 mm) Dice

  • Reduced Fat Cheddar

    5/64 x 25/32 x 25/32 inch (2 x 20 x 20 mm) Strip

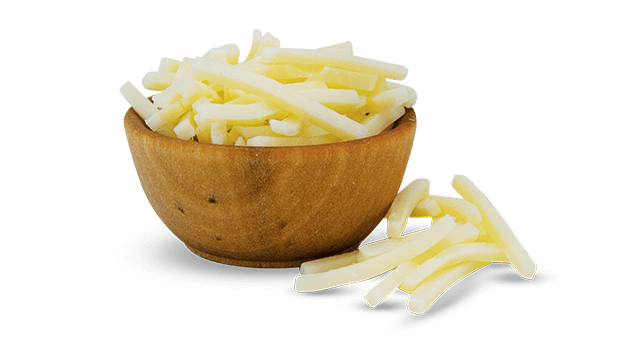

  • Mozzarella

    5/32 x 5/32 x 3/4 inch (4 x 4 x 19.1 mm) Strip

Machine Specs

Affinity® Integra-D Dicer

Length:
55.53" (1410 mm)
Width:
58.40" (1483 mm)
Height:
70.93" (1802 mm)
Net Weight:
1500 lb (680 kg)
Motor:
10 HP (7.5 kW)
Note:
The Affinity Integra-D is accepted by the U.S.D.A., Dairy Division.

Dimensional Drawing





Operating Principle

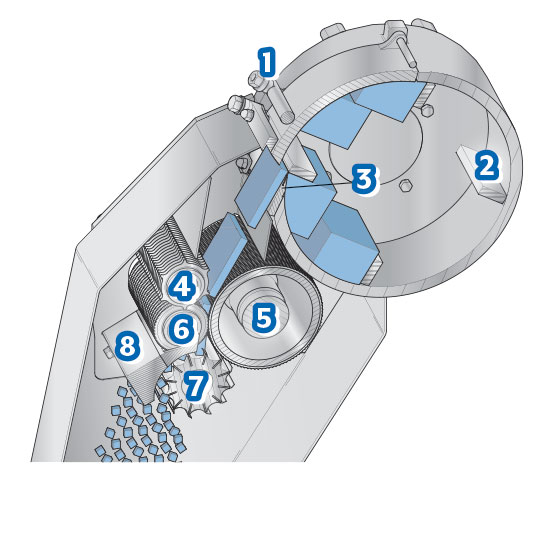

Affinity® Integra-D Dicer

  1. Slice Adjustment Knob
  2. Impeller Paddles
  3. Slicing Knife
  4. Feed Spindle
  5. Feed Drum
  6. Circular Knives
  7. Crosscut Knives
  8. Stripper Plate

Types of Cuts

FLAT SLICES

1/8 - 1/2" (3.2 - 12.7 mm)

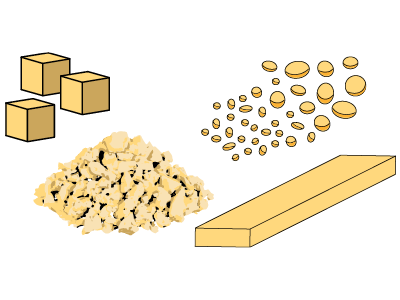

DICES/CRUMBLES/GRANULATIONS/STRIPS

2- and 3-dimensional cutting involves adjusting the slice thickness, and the using the required circular or crosscut spindle.

Circular Knife Cuts

1/8 - 2-1/2" (3.2 - 63.5 mm)

Crosscut Knife Cuts

1/8 - 1-1/2" (3.2 - 38.1 mm)

  • Blue Cheese

    3/8 inch (9.5 mm) Crumble

  • Cheddar

    1/4 inch (6.4 mm) Dice

  • Colby Jack

    3/8 inch (9.5 mm) Dice

  • Imitation Mozzarella

    1/4 x 1/4 x 1/8 inch (6.4 x 6.4 x 3.2 mm) Dice

  • Parmesan

    1/4 inch (6.4 mm) Dice

  • Reduced Fat Cheddar

    5/64 x 25/32 x 25/32 inch (2 x 20 x 20 mm) Strip

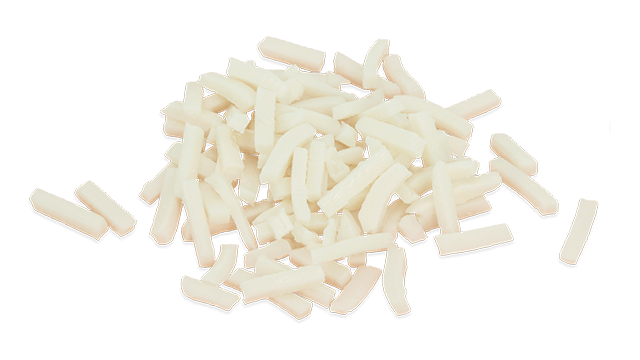

  • Mozzarella

    5/32 x 5/32 x 3/4 inch (4 x 4 x 19.1 mm) Strip
