Model CCX-D Shredder

Slicer/Shredder/Strip Cutter in a Highly Polished Design

  • Similar to the CC-DL cheese grating machine, this model features several characteristics for easy and efficient slicing of dairy products.
  • The Model CCX-D uniformly produces several different types of cuts including New Grating Options, Oval Shreds, Full Shreds, "V” Shreds, Flat-V™ Shreds, Crescent Shreds, and a wide variety of slices.
  • U.S.D.A., Dairy Division accepted.
  • To promote sanitation, the machine features an attached swingaway feed hopper, hinged access panels, sloped surfaces, and stainless steel highly polished to U.S.D.A., Dairy Division accepted standards.
  • Features interchangeable quick locking double ring, single adjustment cutting heads enabling the changeover to different cuts in just minutes. Specially designed knives do not require sharpening, and are inexpensive to replace.
  • New 2-piece enclosure allows easy access for complete cleaning and maintenance.
  • Features a large 32" (813 mm) diameter cutting zone. The 10 HP (7.5 kW) motor promotes a higher capacity and lessens product build-up. The machine is also available with a 24" (610 mm) diameter cutting enclosure.
  • The Model CCX-D will accept products measuring up to 3-1/2" (89 mm) in any dimension.
  • Features continuous operation for uninterrupted production.
  • NEW MicroAdjustable® SH-14 Shred Head, U.S.D.A., Dairy Division accepted, now available.


MicroAdjustable® SH-14 Shred Head:
​​

Applications


The Model CCX-D Shredder features a large 32" (813 mm) diameter cutting zone. This large cutting zone combined with the 10-horsepower (7.5 kW) motor promotes a higher capacity and lessens product build-up. The machine is also available with a 24" (610 mm) diameter cutting enclosure. New 2-piece enclosure allows easy access for complete cleaning and maintenance. The versatile CCX-D features interchangeable quick locking double ring, single adjustment cutting heads enabling the changeover to different cuts in just minutes. Specially designed knives do not require sharpening and are inexpensive to replace. To promote sanitation, the machine features an attached swing-away feed hopper, hinged access panels, sloped surfaces, and stainless steel highly polished to U.S.D.A., Dairy Division accepted standards. The machine features continuous operation for uninterrupted production and is designed for easy clean-up and maintenance. The Model CCX-D will accept products measuring up to 3-1/2" (88.9 mm) in any dimension.


  • Cheddar Cheese

    .125 inch (3.2 mm) Full Shred

  • Cheddar Cheese

    .097 inch (2.5 mm) Full Shred

  • Cheddar Cheese

    Oval Shred

  • Mozzarella Cheese

    Crescent Shred

  • Potato

    Flat-V® Shred *Limited availability based on customer application. Contact your local Urschel office to verify salability

  • Mozzarella Cheese

    .070 inch (1.8 mm) Full Shred

  • Parmesan Cheese

    Strip Cut

  • Parmesan Cheese

    Coarse Granules

  • Parmesan Cheese Strip

    .080 x .75 (2 x 19 mm)

  • Parmesan Cheese

    Full Wide Oval Shred

  • Potato

    Flat-V® Slice *Limited availability based on customer application. Contact your local Urschel office to verify salability

  • Sweet Potato

    Flat-V® Slice *Limited availability based on customer application. Contact your local Urschel office to verify salability

Machine Specs

Length:
58.78" (1493 mm) - 24" (610 mm) diam. encl.
:
66.28" (1684 mm) - 32" (813 mm) diam. encl.
Width:
32.95" (837 mm)
Height:
31.61" (803 mm) - 24" (610 mm) diam. encl.
:
34.11" (866 mm) - 32" (813 mm) diam. encl.
Net Weight:
1,000 lb (454 kg)
Motor:
10 HP (7.5 kW)

Dimensional Drawing

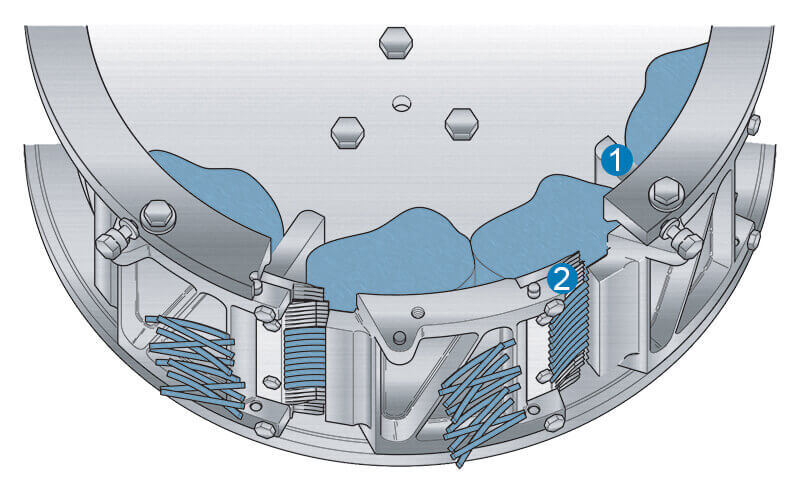

Operating Principle

Model CCX-D Shredder

  1. Product enters the rotating impeller [ 1 ] and is held against the inner surface of the cutting head assembly by centrifugal force.
  2. The cutting head assembly consists of eight individual stationary cutting stations. Slices or shreds are produced as product passes each knife [ 2 ] in a smooth and uninterrupted manner. Length is controlled by input product size.

Types of Cuts

Full Shred

Diamond-shaped cross section available in four thicknesses: .070, .097, .125, or *.285" (1.8, 2.5, 3.2, or *7.2 mm)

Reduced Flat-V Shred

"V”-shaped cross section

Oval Shred

Oval-shaped cross section approximately .125" (3.2 mm) thick by .250" (6.4 mm) wide

Crescent Shreds

Crescent-shaped cross section

Flat Slice

Slice thickness up to .500" (12.7 mm)

Wide Oval Shred

.152" (3.7 mm) thick by .480" (12.2 mm) wide

Wide Crescent Shred

Wide crescent-shaped cross section

Full Flat-V Shred

Hexagonal-shaped cross section approximately .150" (3.8 mm) on all sides.

Reduced Flat-V Shred

Flattened top and bottom that form a corrugated shred.

NEW! *Flat-V® Slice

Slice thickness up to .180" (4.6 mm) with 2.1 corrugations per inch (25.4 mm). Corrugation depth of .125" (3.2 mm); Centers: .473" (12 mm).

NEW! *Z-Cut Slice

Slice thickness up to .325" (8.3 mm) with 2.1 corrugations per inch (25.4 mm). Corrugation depth of .135" (3.4 mm); Centers: .394" (10 mm).

Standard Crinkle Slices

Slice thickness up to .500" (12.7 mm) with 3-1/2 waves per inch (25.4 mm). Crinkle depth of .080" (2 mm); Centers .300" (7.6 mm)

Strip Cuts

Rectangular cross section. Widths: 3/32, 1/8, 3/16, 1/4, 3/8, 1/2, 9/16, and 3/4" (2.4, 3.2, 4.8, 6.4, 9.5, 12.7, 14.3, and 19 mm)

Grating Options

Grating heads offer cuts including powdered parmesan, coarse granules, and a variety of shreds.
