Model CC-DL Shredder
High Capacity Shredder, Slicer, & Strip Cutter
Large cutting zone and 10 HP motor promotes higher capacity.

-
Key Features
-
Applications
-
Specs
-
Knife Info
-
Types of Cuts
-
Media & Brochures
-
FAQs
Key Features
VERSATILE
Rely on the Model CC-DL to shred, slice, strip cut, or granulate a variety of products including cheese, potatoes, other vegetables/fruits, cooked meats, and pet food.
POWERFUL
Large 10 HP (7.5 kW) motor.
LARGE CUTTING ZONE
The CC-DL comes equipped with a large 32-inch diameter cutting zone enclosure to promote a higher capacity and diminish product build-up.
PRECISION SHREDS, LESS WASTE
The CC-DL cutting principle employs centrifugal force, impeller, and acutely sharpened cutting stations to fully engage and direct cut product flow. This promotes precision shreds and maximizes profit.
SANITARY DESIGN
The CC-DL Shredder design features attached swing away infeed hopper offers accessibility for sanitation and ease of maintenance.
MAXIMUM CAPACITY
The CC-DL Shredder delivers continuous operation for uninterrupted production to maximize run times and capacity.
Applications
Food processors rely on the Model CC-DL to shred, slice, strip cut, or granulate a variety of products including cheese, potatoes, other vegetables/fruits, cooked meats, and pet food. It features a large 32-inch diameter cutting zone enclosure to promote a higher capacity and diminish product build-up. The machine features continuous operation for uninterrupted production, and is designed for easy clean-up and maintenance. The Model CC-DL will accept products measuring up to 3-1/2″ (88.9 mm) in any dimension.

Carrot
.125″ (3.2 mm) Full Shred

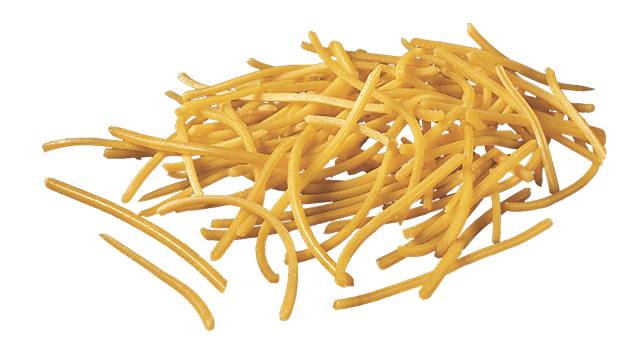

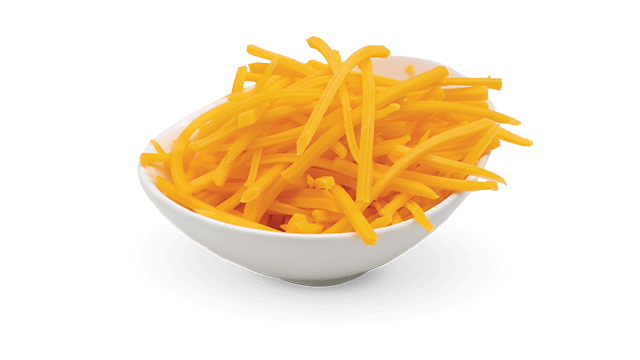

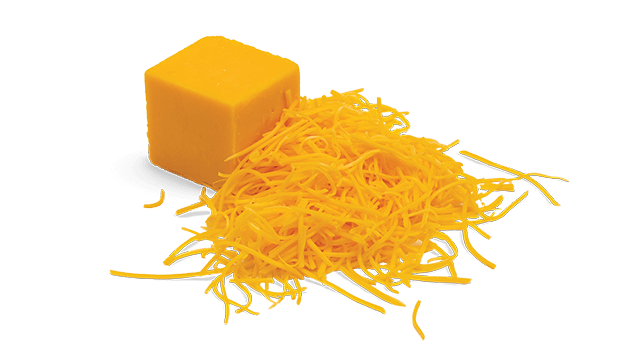

Cheddar Cheese
.097″ (2.5 mm) Full Shred

Cheddar Cheese
.125″ (3.2 mm) Full Shred

Cheddar Cheese
.070″ (1.8 mm) Full Shred

Cheddar Cheese
Oval Shred

Mozzarella Cheese
.060″ (.635 mm) Reduced Crescent Shred

Mozzarella Cheese
Crescent Shred

Mozzarella Cheese
Wide Oval Shred

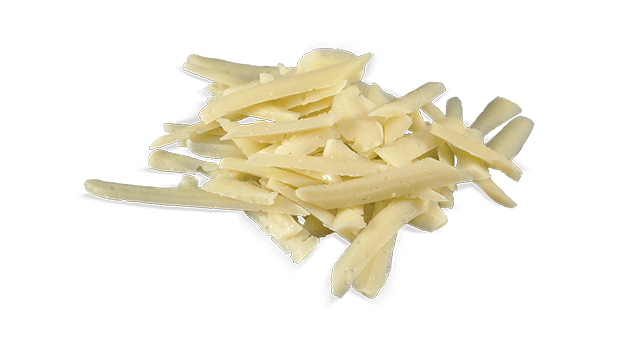

Parmesan Cheese
Full Wide Oval Shred

Parmesan Cheese
Strip Cut

Parmesan Cheese
Coarse Granules

Potato
Flat-V® Slice
*Limited availability based on customer application. Contact your local Urschel office to verify salability

Potato
Flat-V® Shred
*Limited availability based on customer application. Contact your local Urschel office to verify salability

Potato
.125″ (3.2 mm) Full Shred

Sweet Potato
Flat-V® Slice
*Limited availability based on customer application. Contact your local Urschel office to verify salability

Purple Potato
.125″ (3.2 mm) Full Shred

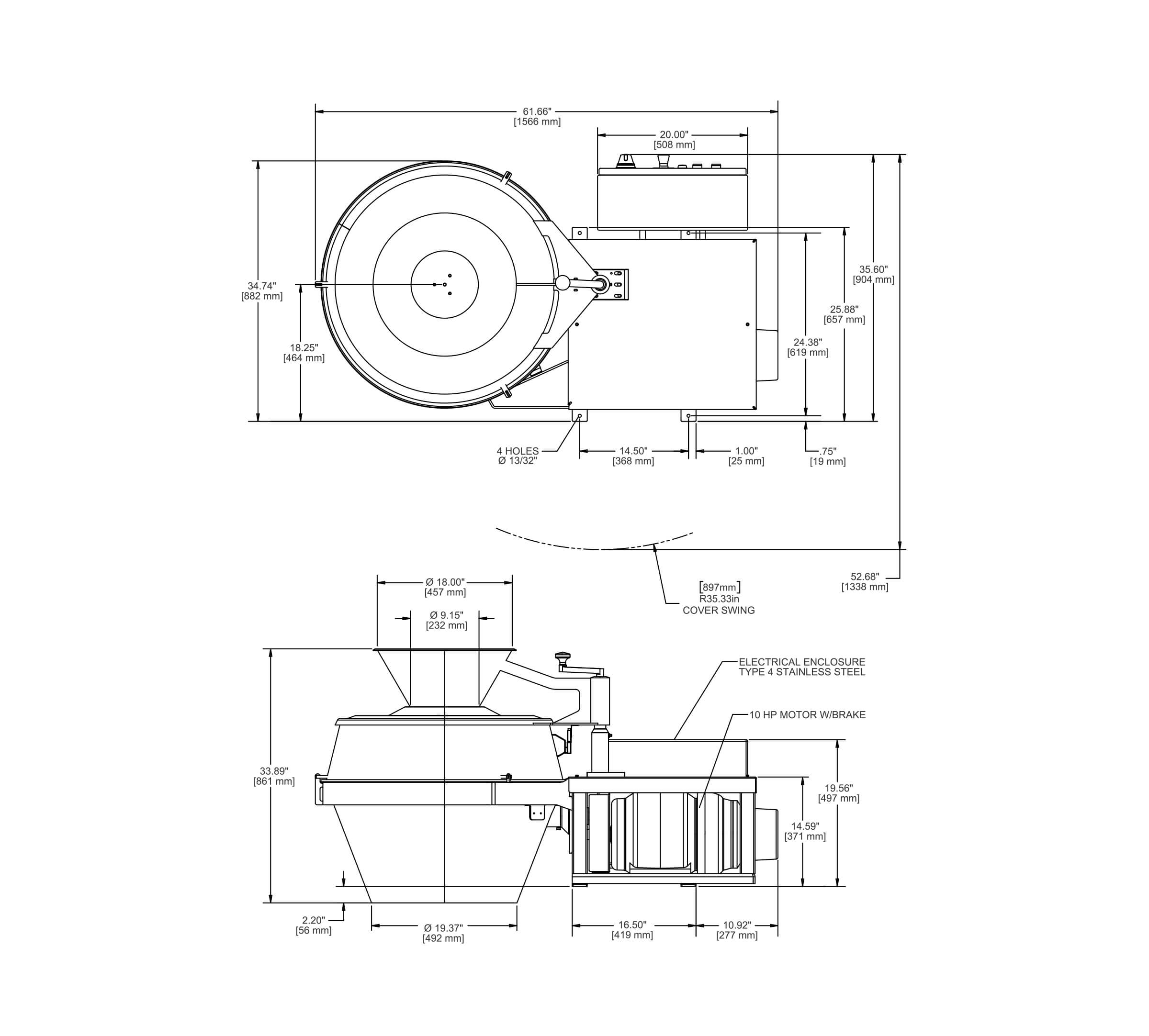

Specs
LENGTH | 61.66″ (1566 mm) |
WIDTH | 35.60″ (904 mm) |
HEIGHT | 33.89″ (861 mm) |
NET WEIGHT | 740 lb (336 kg) |
MOTOR | 10 HP (7.5 kW) |

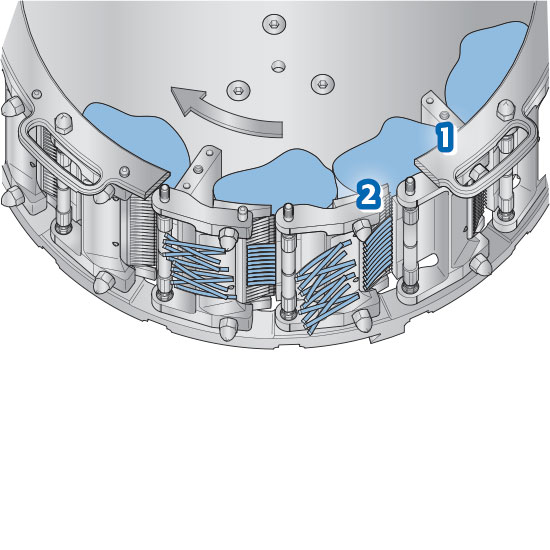

Operating Principle

Model CC-DL Shredder
- Impeller Paddle
- Shredding Knife
Knife Info
Need Help with Knives for Your Urschel Cutting Machinery?
Contact us today to get help with upgrading or replacing your knives with original Urschel parts.

Types of Cuts
Shred

Full & Reduced Flat-V® Shreds
Full Flat-V® Shred: Hexagonal-shaped cross section approximately .150″ (3.8 mm) on each side using the .473 V knife.
Reduced Flat-V® Shred: Flattened top and bottom that form a corrugated shred.

Full Shred & Reduced V Shreds
Full Shred: Diamond-shaped cross section available in four thicknesses: .070″ (1.8 mm) using the .125 V knife, .097″ (2.5 mm) using the .170 V knife, .125″ (3.2 mm) using the .212 V knife, or *.285″ (7.2 mm) using the .445 V knife.
Reduced V Shred: “V”-shaped cross section.
*Limited availability based on customer application. Contact your local Urschel office to verify salability.

Oval & Reduced Oval (Crescent) Shred
Oval Shred: Oval-shaped cross section approximately .125″ (3.2 mm) thick by .250″ (6.4 mm) wide using the .300 crinkle knife.
Wide Oval Shred: Wide oval-shaped cross section .125″ (3.2 mm) thick by .375″ (9.5 mm) wide using the .480 crinkle knife.
Crescent Shred: Crescent-shaped cross section.
Wide Crescent Shred: Wide crescent-shaped cross section.
Slice

Flat-V® Slices*
Slice thickness range of .040 to .180″ (1.0 to 4.6 mm) with 2.1 corrugations per inch (25.4 mm). Corrugation depth of .125″ (3.2 mm); Center depth: .473″ (12 mm).
*Limited availability based on customer application. Contact your local Urschel office to verify salability.

Z-Cut Slices*
Slice thickness range is .030 to .115″ (0.8 to 2.9 mm) with 2.54 corrugations per inch (25.4 mm). Corrugation depth is .135″ (3.4 mm); Center depth: .394″ (10 mm).
*Z-Cut is only available in non-European countries.

V Slices
Slice thickness range is .040″ (1.0 mm) to .500″ (12.7 mm) available in two different “V” depths.
.125″ Slice: 8 “V’s” per inch, “V” depth of .050″ (1.3 mm), Center depth: .125″ (3.2 mm).
.212″ Slice: 4.7 “V’s” per inch, “V” depth of .084″ (2.1 mm), Center depth: .212″ (5.4 mm).

Crinkle Slices
Slice thickness range is .040″ (1.0 mm) to .500″ (12.7 mm). Available in three different crinkle depths.
.175″ Slice: Crinkle depth .084″ (2.1 mm), Center depth .175″ (4.4 mm).
.300″ Slice: Crinkle depth .080″ (2.0 mm), Center depth .300″ (7.6 mm).
.480″ Slice: Crinkle depth .076″ (1.9 mm), Center depth .480″ (12.2 mm).

Flat Slices
Slice thickness range is .030 to .500″ (0.8 to 12.7 mm).

Strip Cuts
Rectangular cross section available in a variety of widths: 3/32, 1/8, 3/16, 1/4, 1/2, or 3/4″ (2.4, 3.2, 4.8, 6.4, 12.7, or 19.1 mm).
Granulate

Grating Options
Grating heads offer cuts including powdered parmesan, coarse granules, and a variety of shreds.
Want to Test Cut Your Specific Product?
Contact Urschel to learn more about the product test cutting process.

Frequently Asked Questions
Ask a Question
"*" indicates required fields
Find My Sales Rep
Where are you located?
Search United States
Search Globally
Looking for Global Sales Reps?
Looking for U.S. Sales Reps?
Brochures & Guides

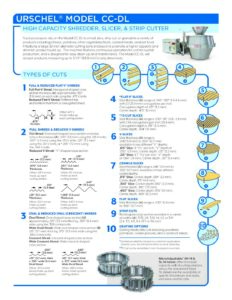

Fact Sheet Model CC-DL
Download (link opens in new window)

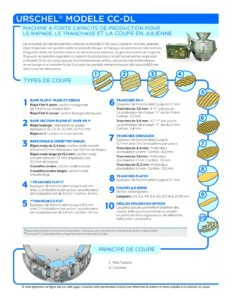

Fact Sheet Model CC-DL (FR)
Download (link opens in new window)

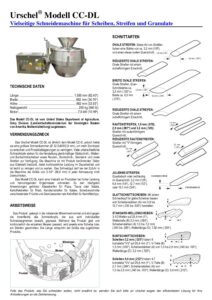

Fact Sheet Model CC-DL (DE)
Download (link opens in new window)

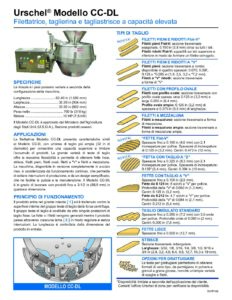

Fact Sheet Model CC-DL (IT)
Download (link opens in new window)

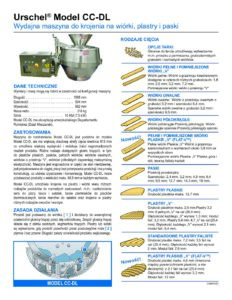

Fact Sheet Model CC-DL (PL)
Download (link opens in new window)

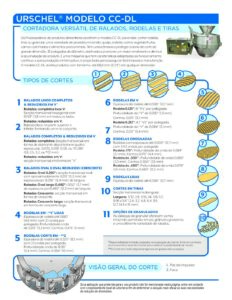

Fact Sheet Model CC-DL (PT)
Download (link opens in new window)

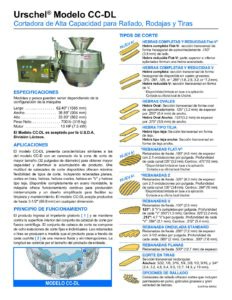

Fact Sheet Model CC-DL (ES)
