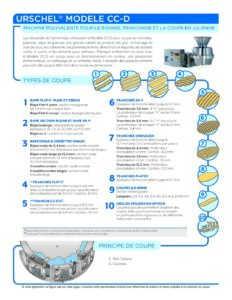

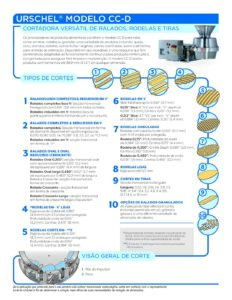

Media & Brochures
-
FAQs
Key Features
MULTIPLE TYPES OF CUTS
The Model CC-D uniformly produces several different types of shreds including Oval Shreds, Full Shreds, “V” Shreds, Flat-V® Shreds, and Crescent Shreds.
MAX INFEED IS 3-1/2″ (89 MM)
The Model CC-D will accept products measuring up to 3-1/2″ (89 mm) in any dimension.
TWO MOTOR OPTIONS
Available 5 or 10 HP (3.7 or 7.5 kW) motor.
UNINTERRUPTED PRODUCTION
Features continuous operation for uninterrupted production.
Applications

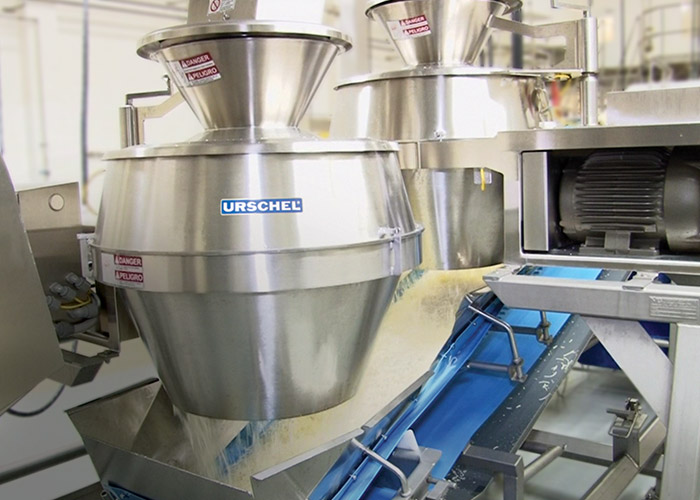

Food processors choose the Model CC-D to shred, slice, strip cut, or granulate a variety of products including cheese, coconut, cranberries, potatoes, other fruits/vegetables, cooked meats, surimi, and pet food. Available in all stainless steel, the machine features continuous operation for uninterrupted production and is designed for easy clean-up and maintenance. The Model CC-D will accept products measuring up to 3-1/2″ (88.9 mm) in any dimension.

Carrot
.212″ (5.4 mm) Full Shred

Cheddar Cheese
.097″ (2.5 mm) Full Shred

Cheddar Cheese
.125″ (3.2 mm) V Shred

Cheddar Cheese
.212″ (5.4 mm) Full Shred

Cheddar Cheese
.070″ (1.8 mm) Full Shred

Cheddar Cheese
Oval Shred

Mozzarella Cheese
.060″ (1.5 mm) Reduced Crescent Shred

Mozzarella Cheese
Crescent Shred

Mozzarella Cheese
Wide Oval Shred

Parmesan Cheese
Full Wide Oval Shred

Parmesan Cheese
Strip Cut

Parmesan Cheese
Coarse Granules

Potato
Flat-V® Slice
*Limited availability based on customer application. Contact your local Urschel office to verify salability

Potato
Flat-V® Shred
*Limited availability based on customer application. Contact your local Urschel office to verify salability

Potato
.212 inch ( mm) Full Shred

Potato
.212 inch ( mm) Full Shred

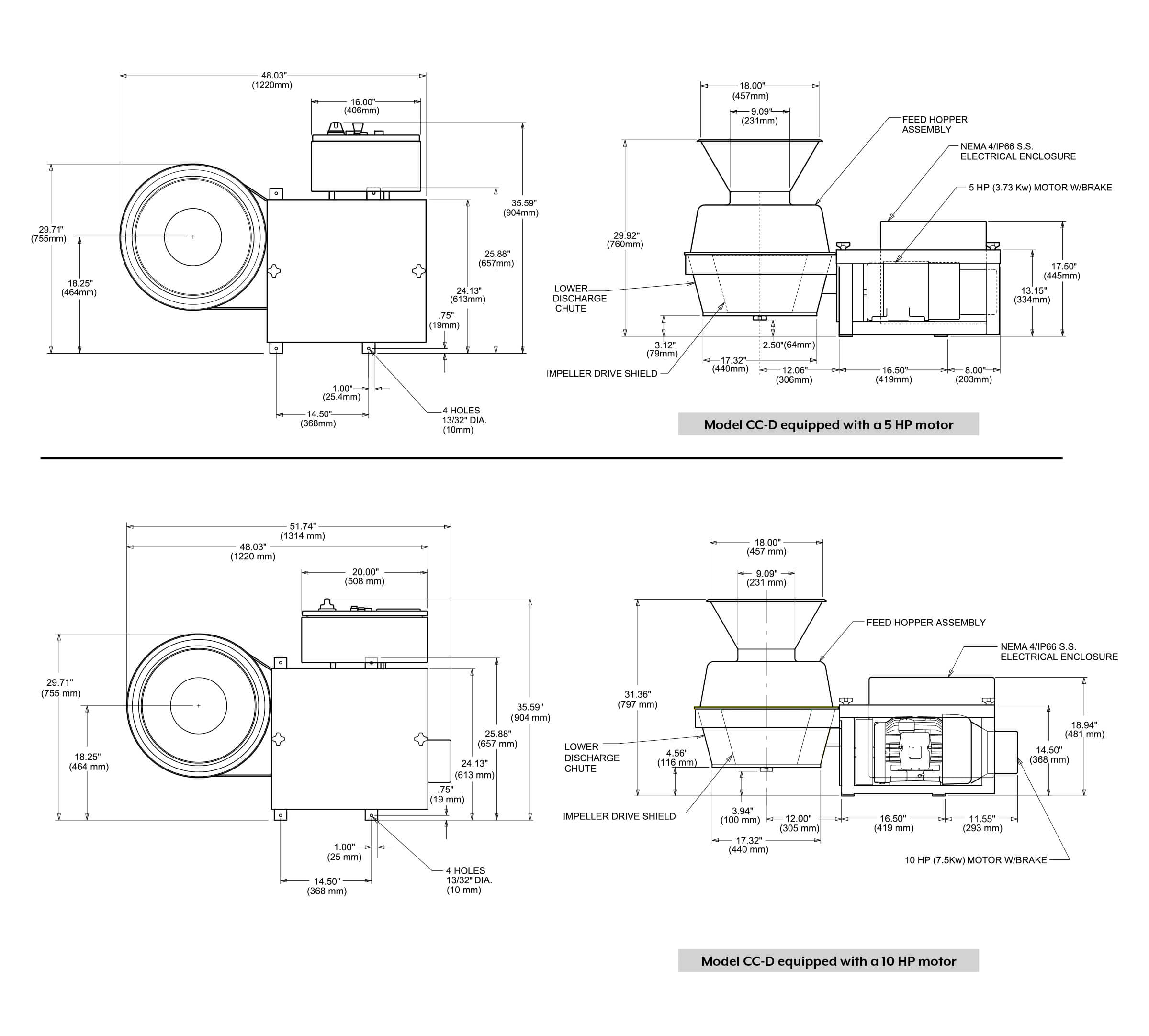

Specs
LENGTH | 48.03″ (1220 mm) |
WIDTH: 5 HP (3.7 kW) | 35.59″ (904 mm) |
WIDTH: 10 HP (7.5 kW) | 51.74″ (1314 mm) |
HEIGHT: 5 HP (3.7 kW) | 29.92″ (760 mm) |
HEIGHT: 10 HP (7.5 kW) | 31.36″ (797 mm) |
NET WEIGHT: 2 or 5 HP (1.5 or 3.7 kW) | 550 lb (250 kg) |
NET WEIGHT: 10 HP (7.5 kW) | 680 lb (310 kg) |
MOTOR: | 5 or 10 HP (3.7 or 7.5 kW) |
Operating Principle

Model CC-D
- Impeller
- Shredding Knife
Knife Info
Need Help with Knives for Your Urschel Cutting Machinery?
Contact us today to get help with upgrading or replacing your knives with original Urschel parts.

Types of Cuts
Shred

Full & Reduced Flat-V® Shred
Full Flat-V® Shred: Hexagonal-shaped cross section approximately .150″ (3.8 mm) on each side using the .473 V knife.
Reduced Flat-v® Shred: Flattened top and bottom that form a corrugated shred.

Full Shred & Reduced V Shred
Full Shred: Diamond-shaped cross section available in four thicknesses: .070″ (1.8 mm) using the .125 V knife, .097″ (2.5 mm) using the .170 V knife, .125″ (3.2 mm) using the .212 V knife, or *.285″ (7.2 mm) using the .445 V knife.
Reduced V Shred: “V”-shaped cross section.
*Limited availability based on customer application. Contact your local Urschel office to verify salability.

Oval & Reduced Oval (Crescent) Shred
Oval Shred: Oval-shaped cross section approximately .125″ (3.2 mm) thick by .250″ (6.4 mm) wide using the .300 crinkle knife.
Wide Oval Shred: Wide oval-shaped cross section .125″ (3.7 mm) thick by .375″ (9.5 mm) wide using the .480 crinkle knife.
Crescent Shred: Crescent-shaped cross section.
Wide Crescent Shred: Wide crescent-shaped cross section.
Slice

Flat-V® Slice*
Slice thickness range of .040 to .180″ (1.0 to 4.6 mm) with 2.1 corrugations per inch (25.4 mm). Corrugation depth of .125″ (3.2 mm); Center depth: .473″ (12 mm).
*Limited availability based on customer application. Contact your local Urschel office to verify salability.

Z-Cut Slice*
Slice thickness range is .030 to .115″ (0.8 to 2.9 mm) with 2.54 corrugations per inch (25.4 mm). Corrugation depth is .135″ (3.4 mm); Center depth: .394″ (10 mm).
*Z-Cut is only available in non-European countries.

V Slice
Slice thickness range is .040″ (1.0 mm) to .500″ (12.7 mm) available in two different “V” depths.
.125″ (3.2 mm) Slice: 8 “V’s” per inch (25.4 mm). “V” depth of .050″ (1.3 mm); Centers: .125” (3.2 mm).
.212″ (5.4 mm) Slice: 4.7 “V’s” per inch (25.4 mm). “V” depth of .084″ (2.1 mm); Centers: .212” (5.4 mm).

Crinkle Slice
Slice thickness range is .040″ (1.0 mm) to .500″ (12.7 mm). Available in three different crinkle depths.
.175″ Slice: Crinkle depth .084″ (2.1 mm), Center depth .175″ (4.4 mm).
.300″ Slice: Crinkle depth .080″ (2.0 mm), Center depth .300″ (7.6 mm).
.480″ Slice: Crinkle depth .076″ (1.9 mm), Center depth .480″ (12.2 mm).

Flat Slice
Slice thickness range is .030 to .500″ (0.8 to 12.7 mm).

Strip Cut
Rectangular cross section available in a variety of widths: 3/32, 1/8, 3/16, 1/4, 1/2, or 3/4″ (2.4, 3.2, 4.8, 6.4, 12.7, or 19.1 mm).
Granulate

Grating Options
Grating heads offer cuts including powdered parmesan, coarse granules, and a variety of shreds.
Want to Test Cut Your Specific Product?
Contact Urschel to learn more about the product test cutting process.
