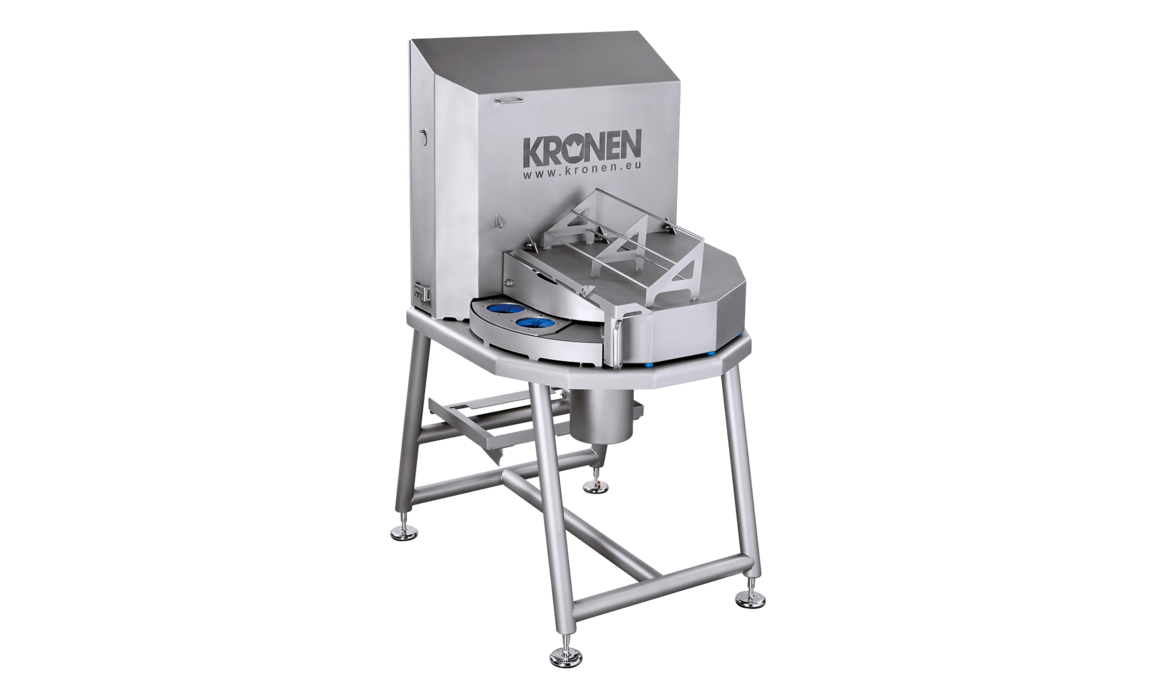

Tona V cutting machine
Cutting
The Tona V is used to cut fruit and vegetables into slices, segments or sticks. It is easy to clean and comes with several cutting inserts that are easy to change, thus making it ideal for frequently alternating between different cutting types and products.
3,600 pieces/h Max. capacity
- Features
- Specs
- Resources
Overview
Flexible due to a quick change of cutting inserts for producing slices, segments and sticks
The Tona V cuts fruit and vegetables into slices, segments or sticks in a continuous process. Its different cutting inserts can be changed quickly and the machine is easy to clean, thus enabling efficient processing even when frequently alternating between different products. The machine can process products with a diameter of up to 120 mm (4.7″) and a height of up to 150 mm (6″).
The Tona V can be used to prepare products such as:
- tomato segments, potato wedges, lime segments (quarters, eighths, etc.)
- onion rings, kiwi or mushroom slices, long zucchini strips
- carrot sticks
- pepper chunks, for example for kebabs

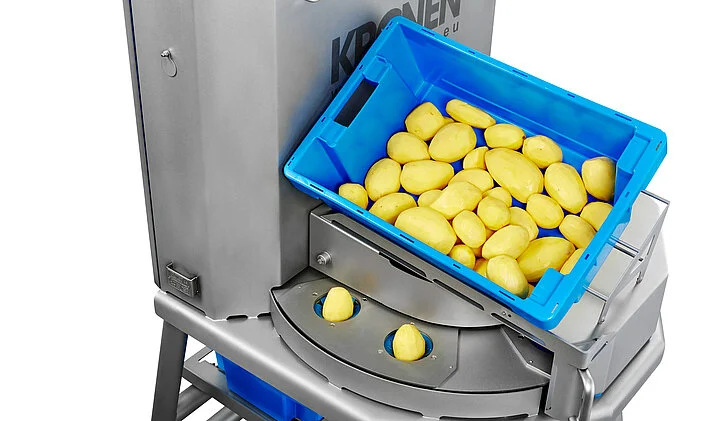

The products are manually placed in the rotating product holders and remain in this position when transported to the cutting process, thus enabling users to achieve an optimal cutting result. The automatic cutting process is performed electrically, and the cut good product is discharged into a crate placed in the crate holder provided below the machine.
Your Benefits
- Top cutting quality
- Suitable for flexible use due to quick cutting insert replacement
- User-friendly, ergonomic operation
- Fast cleaning thanks to a hygienic design
Highlights

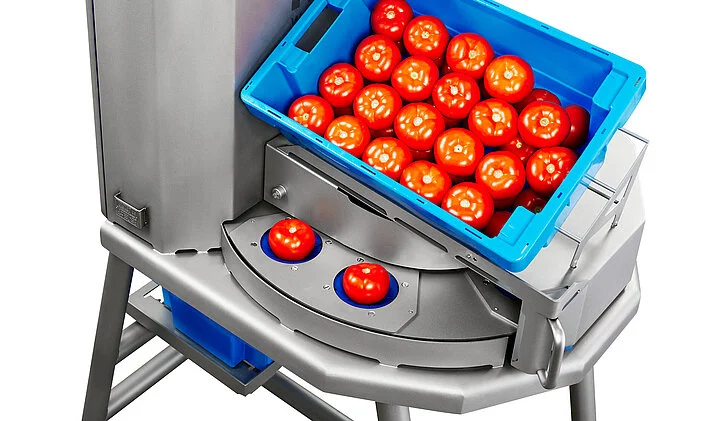

Perfect cutting results thanks to alignment into product holders
The product holders keep the inserted products in the desired position until the cutting process so that they can be cored or cut into the desired shape. This makes the cutting machine particularly suitable for processing products for which alignment is essential for a good cutting result.
Large selection of cutting inserts and easy tool change
Due to the variety of cutting and dividing inserts available, the cutting machine enables versatile use for processing different products. It is easy to quickly switch from one cutting type to another simply by changing the cutting inserts and pushers. Each insert is comprised of a knife insert and a pusher.
Cutting inserts and product holders compatible with other Tona models
Most of the cutting inserts and product holders from the Tona S180K and Tona Rapid cutting machine models can also be used in the Tona V. For this purpose, they are attached to an adapter plate available as an optional addition.
Easy cleaning
The hygienic design and good accessibility enable easy cleaning.
User-friendly, ergonomic operation
Holders for crates for the raw produce or cut products are attached to the product infeed area and under the product discharge for ergonomic operation. The clearly arranged control panel, the seven speed levels and the quick change of cutting inserts ensure easy operation of the cutting machine.
Specs
| Max. Capacity | 3,600 pieces/h (The capacity depends on factors such as the product.) |
| Operator | Semi-automatic |
| Sanitation | Wet disinfection |
| Loading Type | Continuous |
| Electrical power | Power: 3 kW (4 HP) Voltage: 400 V Frequency: 50 Hz |
| Dimensions | LxWxH: 1172 x 930 x 1668 mm (46.1 x 36.6 x 65.7″) Weight: 280 kg (618 lb) Infeed/placement height: 867 mm (34.1″) Outfeed/delivery height: 730 mm (28.7″) |
| Miscellaneous | Diameter of raw product: max. 120 mm (4.7″) Height of raw product: max. 150 mm (6″) Cycles per hour: max. 1800 |
