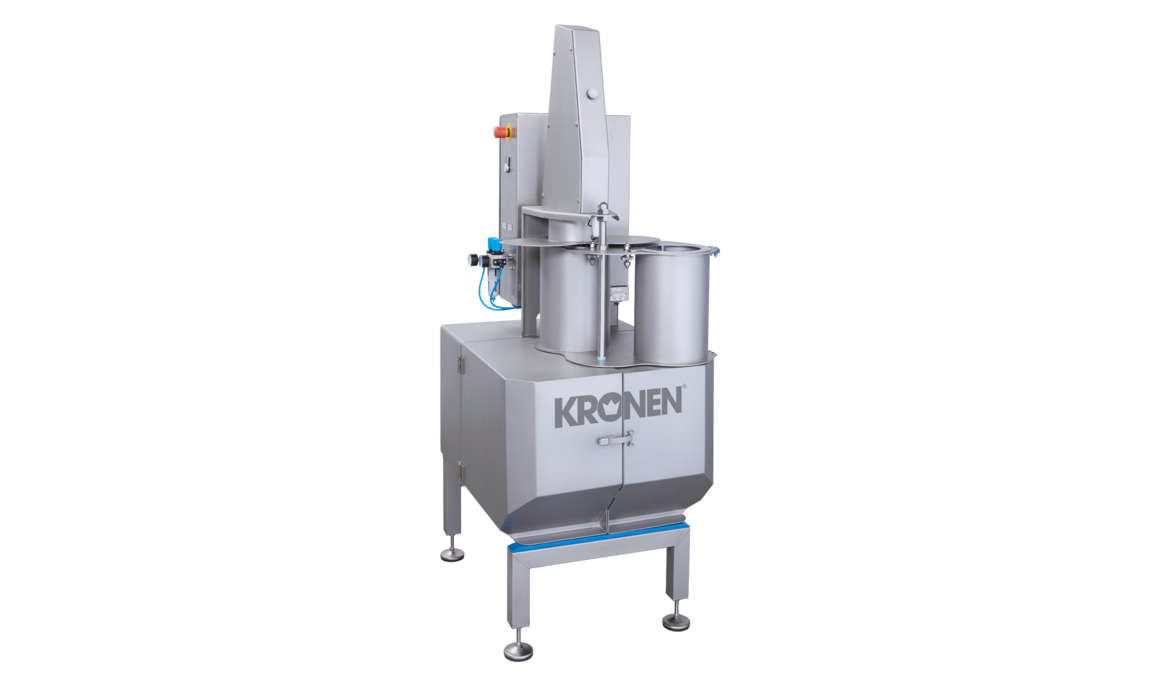

SPIRELLO 150 vegetable spiral cutting machine
Cutting
The classic model for modern and fresh cuisine: automatic cutting of decorative vegetable spirals or strips of supreme quality – for vegan spaghetti or in fresh salads
340 kg (750 lb)/h Max. capacity
- Features
- Specs
- Resources
Overview
Exemplary in precision and performance: cuts large quantities of colorful vegetable spirals
The SPIRELLO 150 is a cutting machine for processing large quantities of vegetables into perfect and decorative spirals or strips. A colorful variety of products such as carrots, potatoes, pumpkin, radishes, zucchini/courgettes, celery or other firm vegetables and fruits can be cut cleanly and in a matter of seconds. The SPIRELLO 150 impresses users with its high precision, durability and efficiency.
With up to 680 revolutions per minute, the SPIRELLO 150 cuts vegetables into meter-long spirals within seconds. These spirals can then optionally can be shortened using a length limit knife via interval switching with seven levels.
The machine is equipped with removable magazines, one of which can be fitted with the raw product while the vegetable in the second magazine is processed. This means that the SPIRELLO 150 can be operated without interruption. An optimal cutting result is achieved via a variable speed control with seven levels depending on the nature of the product.
The machine has an automatic separation system for good product and waste product. The SPIRELLO 150 impresses users with a extremely minimal amount of waste because the vegetable product is completely cut into spirals – except for a very small piece from the top.
An optional discharge belt is available for fast and effective discharge.
Your Benefits
- Perfect and consistent cutting quality at high processing speeds
- High yield with minimal waste thanks to intelligent cutting technology
- Large selection of cutting tools for different product sizes
- Low personnel requirement: only 1 person is necessary to operate the machine
- Easy operation and cleaning due to good accessibility
Highlights
High productivity – minimal waste
Good product and waste product are automatically separated. The SPIRELLO 150 impresses users with an extremely minimal amount of waste because the vegetable product is completely cut into spirals – except for a small piece from the top. The integrated PLC control also allows flexible conversion of the machine to suit the product or product size being processed.
Excellent cutting results – in every format
The SPIRELLO 150 cuts large quantities of vegetables into meter-long, decorative spirals quickly and cleanly. These spirals can optionally be shortened using a length limit knife via interval switching (seven levels). An optimal cutting result is always achieved. The vegetables are held in place by product centering devices, which are adapted to the product according to the customer’s wishes (processing of vegetables with a diameter of up to 150 mm (5.9″), length of up to 300 mm (11.8″), and weight of max. 2.5 kg (5.5 lb)).
Simple operation and outstanding performance
The SPIRELLO 150 can be operated by just one person and without interruption – at up to 680 revolutions per minute.
Equipped with two interchangeable magazines, the SPIRELLO 150 can be filled with raw product without having to interrupt the processing of the vegetables. Knives can be changed quickly and effortlessly to suit different products or product characteristics.
Optimal maintenance and cleaning
The robust stainless steel construction makes the SPIRELLO 150 ideal for long, low-maintenance use. The fully accessible interior and smooth surfaces allow quick and easy cleaning and maximum hygiene.
Specs
| Max. Capacity | up to 340 kg (750 lb)/h (The capacity depends on factors such as the product.) |
| Operator | Semi-automatic |
| Electrical Power | Power: 0.9 kW (1.2 HP) Voltage: 230 V N/PE Frequency: 50 Hz |
| Dimensions | L x W x H: 600 x 845 x 1700 mm (23.6 x 33.3 x 66.9″) Weight: 180 kg (397 lb) |
| Air | Working pressure: 6 bar |
| Miscellaneous | Length of raw product: max. 300 mm (11.8″) |
