RVT 20/25 roller sorting table

Preparing, Conveying

The roller sorting table can be used to sort raw products or check the peeling and cutting quality of processed whole products. As the products rotate, they can be visually inspected from all sides.

Contact A Sales Rep
Brochure

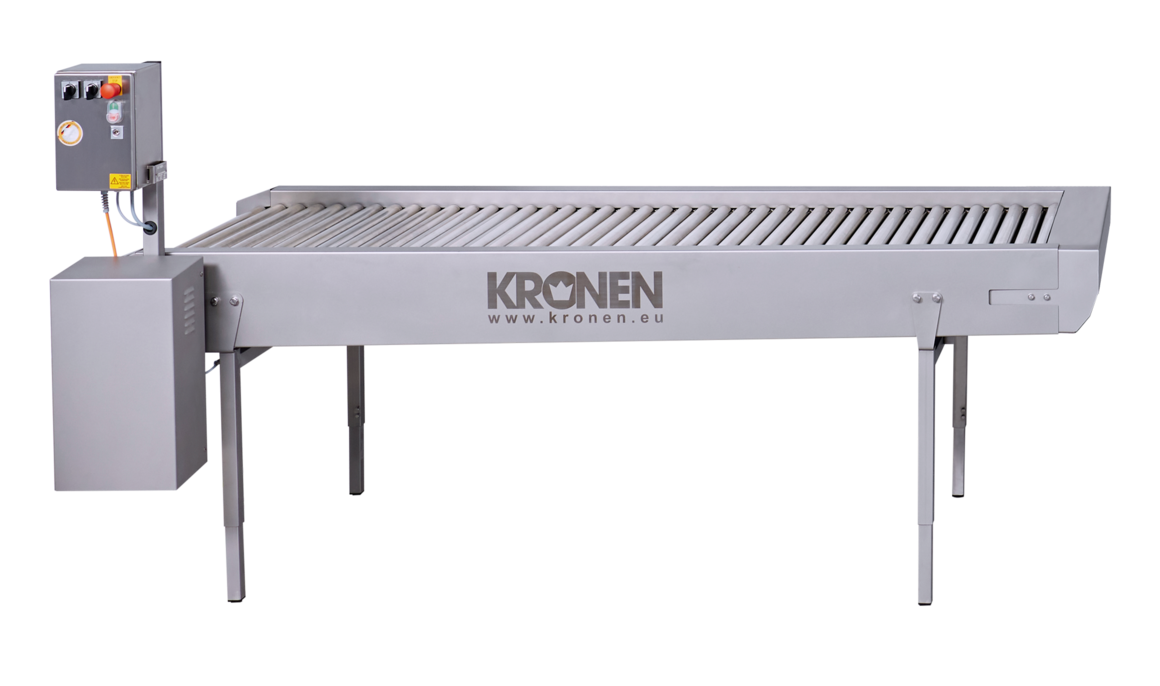

c pe sorting table rvt 20 25 roller inspection table machine

Overview

Efficiently sorting raw material and checking peeling and cutting quality

The roller sorting table enables efficient manual sorting and trimming of whole products. It can be used for the visual inspection of raw products or for checking the peeling and cutting quality of processed products.
The products, for example peeled potatoes, are automatically conveyed across the table and are rotated so that the personnel working at the roller sorting table can inspect the product from all sides. The processing result from previous machines is thus visually checked and individual products can be sorted out or trimmed manually.
The roller sorting table is made completely of stainless steel and is particularly low-maintenance and easy to clean. It is available in two lengths: 2 m or 2.5 m (6.6 or 8.2 ft).

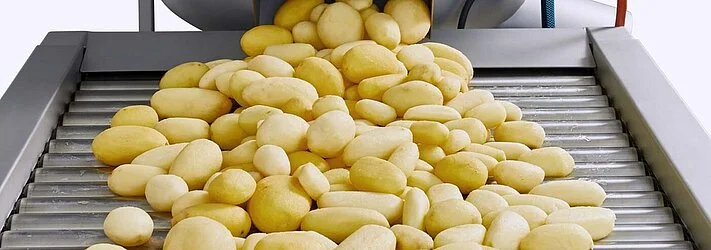

c pe sorting table rvt 20 25 roller inspection table peeled potatoes overview
On the roller sorting table, for example, the peeling quality of peeled potatoes can be visually inspected (image shows RVT and a PL potato peeling machine).

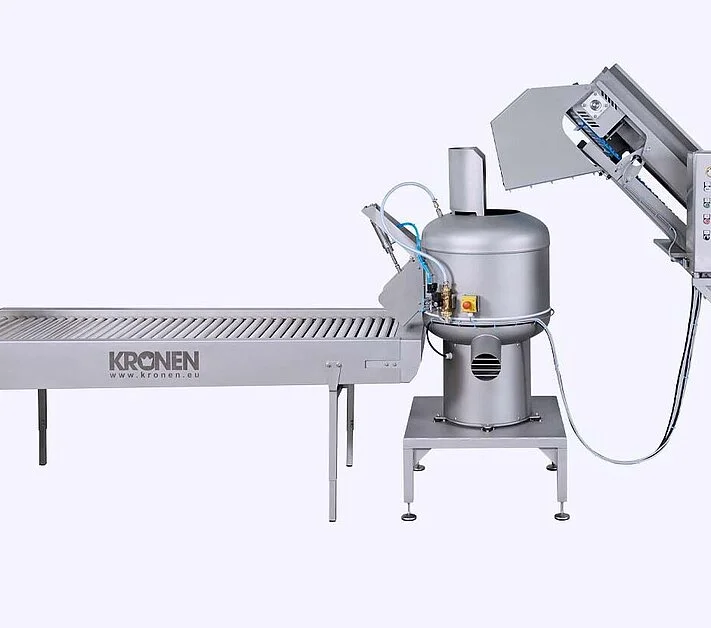

c pe sorting table rvt 20 25 roller inspection table integrated potato line overview
The roller sorting table is suitable for optimum integration in lines e.g. for processing potatoes.

Your Benefits

  • Robust construction made completely of stainless steel
  • Models with different table lengths available
  • Height adjustment for optimal adjustment to upstream and downstream processing steps
  • Adjustable speed

Highlights

checkmark highlights

Height adjustment for optimal integration into production lines

The height of the roller sorting table can be adapted to upstream or downstream processing machines so that the product is easily transferred. The table is therefore ideal for integration into production lines or combination with different stand-alone machines. Its height adjustment function also enables ergonomic work.

checkmark highlights

Adjustable speed for an adaptable product flow

Thanks to the adjustable speed at which the products are transported, the product flow can be adapted to meet different production requirements.

Specs

Electrical PowerPower: .45 kW (0.6 HP)
Voltage: 1~230 V N/PE
Frequency: 50-60 Hz
DimensionsL x W x H: 2554 x 1391 x 865 mm (RVT 25) (100.6 x 54.8 x 34.1″)
Weight: 323 / 335 kg (712 / 740 lb)
Infeed/placement height: 865 mm (34.1″)
Outfeed/delivery height: 654 mm (25.8″)
The data indicated are standard information. In addition, adaptation to other supply networks (e.g. 230V/60 Hz) is optionally possible (except for manual and pneumatic machines). Subject to changes.
