Processing line for potatoes – up to 1,200 kg/h
Disinfection, Peeling, Preparing, Cutting, Washing, Drying, Conveying
Semi-automatic complete system for peeling, preparing, cutting, washing and drying potatoes and other tuber vegetables, as well as for carrot processing: for more efficiency, gentle processing and high product quality – with high-quality machines that can also be used as stand-alone units.
Up to 1,200 kg (2,600 lb)/h max. capacity.
- Features
- Specs
- Resources
Overview
For peeling, trimming, cutting, washing and drying up to 1,200 kg (2,600 lb)/h of tuber vegetables
In the semi-automatic continuous processing line, the product is first transported via the water bunker belt into the two peeling machines where it is peeled and then trimmed directly afterwards on the roller sorting table. It is subsequently automatically transported to a cutting machine via the water buffer conveyor, cut and forwarded to the washing machine. In a parallel step, a second cutting machine is used for cutting, and this cut product is filled into the washing machine manually. After the washing process, the product is placed into spin baskets situated on a basket carousel. One person places the filled baskets into the two spinners one after the other. The product can then be further processed.
Excellent final results are achieved due to the exact and continuous cut with the KUJ-V, the professional preparation at the sorting table and the effective yet gentle washing and spinning. The line also has a low personnel requirement during processing due to automatic conveying.
The following machines or solutions are integrated into the line:

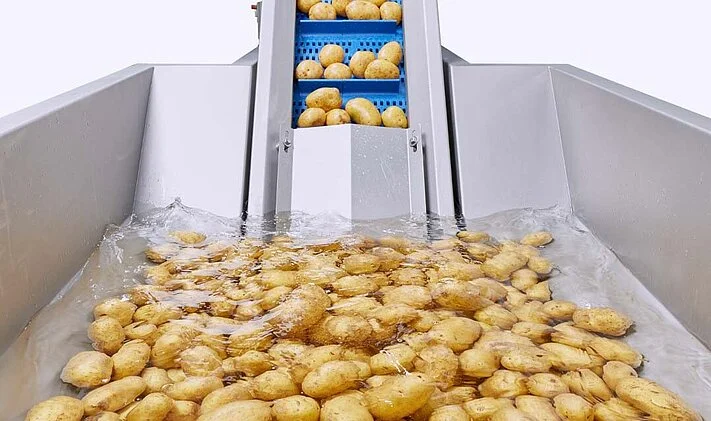

- Preparation and conveying: Water bunker belt

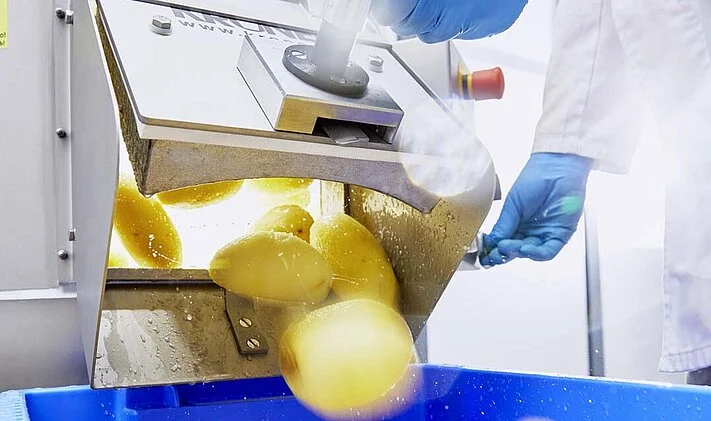

- Peeling: Two PL 40K potato peeling machines with different abrasive grain sizes, an optional peel collector and a peeling basket reinforced with a perforated plate
- Preparation and conveying: RVT 20/25 roller sorting table and water buffer conveyor
- Cutting:
- GS 10-2 belt cutting machine with a belt extension and optionally with a wide range of various knives

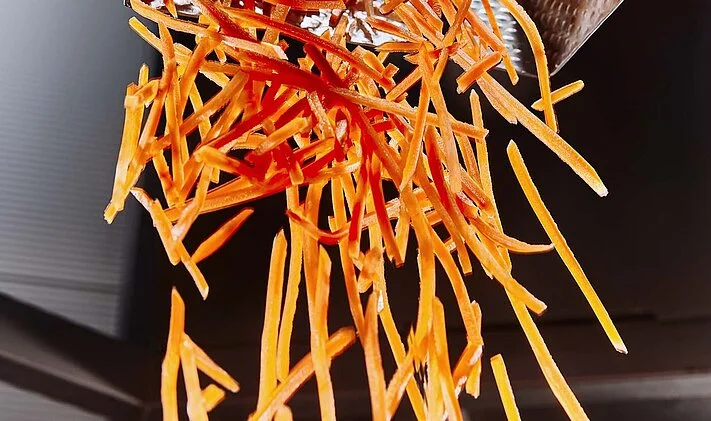

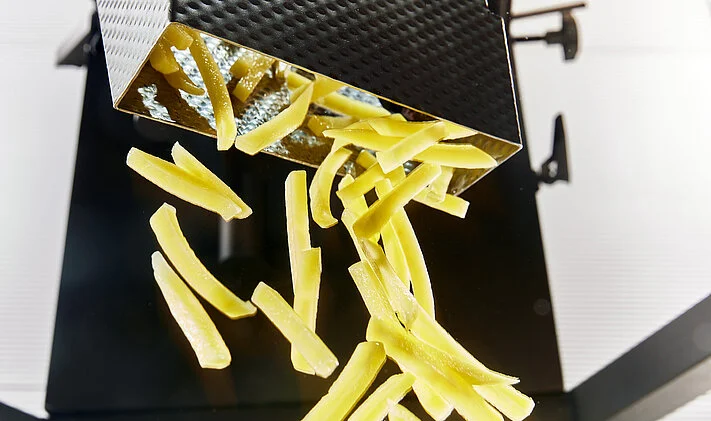

- KUJ-V cube, strip & slice cutting machine, optionally with various cutting inserts
- Conveying: PLUS inclined conveyor belt

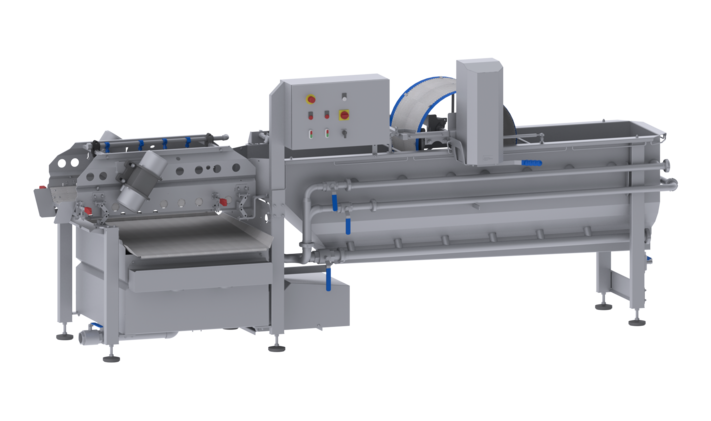

- Washing: GEWA 3800 ECO HELICAL washing machine with vibration outfeed and an optional measuring and dosing system or UVC water reactor.
- Drying: two KS-100 PLUS with a basket carousel
Application options and capacities:
The line processes up to 1,200 kg (2,600 lb) of product per hour. It is used for the abrasive peeling and preparation of tuber vegetables including potatoes, carrots, beets and celery. The products can then be further processed – whole or cut – for example packaged as raw, blanched, cooked or frozen products.
The raw products are processed whole. Only long products such as carrots or radishes should be previously cut into two or three parts to achieve a perfect peeling result. The diameter of the product should not exceed 150 mm (6″).
Pumpkins and squashes cannot be processed on this line. The line can be optionally offered with the AMS 220 peeling machine for flat pumpkins.
Your Benefits
- Semi-automatic processing for increased efficiency in production and high capacities
- High-quality machines that can also be used as stand-alone units: PL 40K, KUJ-V, GEWA 3800 ECO, KS-100 PLUS, among others.
- Gentle, continuous processing and high product quality
- Low personnel requirement – simple operation without complex overall control
- Can be extended at any time to accommodate higher capacities and to meet individual requirements
Highlights
Automatic, hygienic and flexible processing
The KRONEN cutting, washing and drying machines are also designed for frequent product or recipe changes during a production shift. The belt cutting machines guarantee quick knife replacement. The washing machines fully empty in a very short time. The drums of the large centrifuges are blown dry during emptying. The hygienic design of the KRONEN machines allows all areas to be easily accessed and makes the machines easy to clean. User-friendly operation and the safety of operating personnel are guaranteed.
Complete solutions from a single source
KRONEN is a reliable partner, even when it comes to implementing automated processing lines. With a high level of planning and consulting expertise, the company implements the right solution for every customer requirement. KRONEN offers complete lines from a single source and integrates suitable machines from partners as required.
Specs
| Max. Capacity | up to 1,200 kg (2,600 lb)/h (The capacity depends on factors such as the product.) |
| Operator | Semi-automatic |
| Miscellaneous | Abrasive peeling |
| Sanitation | Wet disinfection |
| Loading Type | Batch |

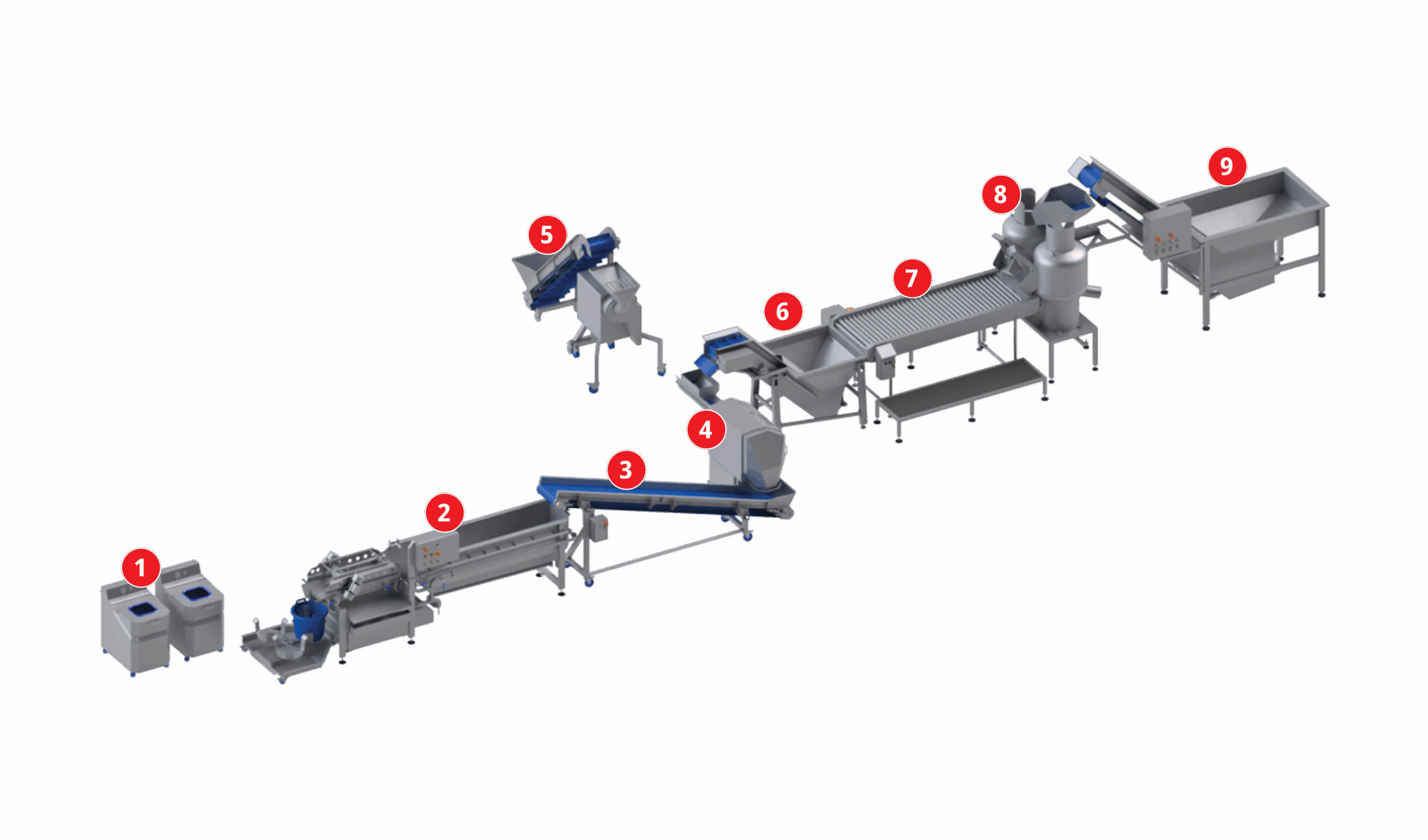

- Two KS-100 PLUS vegetable and lettuce spin-dryers with a basket carousel
- GEWA 3800 ECO with vibration outfeed
- PLUS inclined conveyor belt
- GS 10-2 belt cutting machine with belt extension
- KUJ-V cube, strip and slice cutting machine with PLUS inclined conveyor belt with cleats
- Water buffer conveyor
- RVT 20/25 roller sorting table
- Two PL 40K potato peeling machines
- Water bunker belt
Industries
Vegetables
Resources
Photography

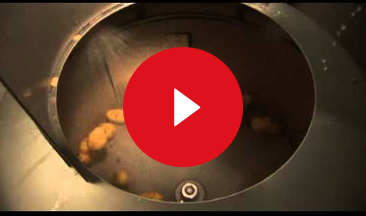

Videos

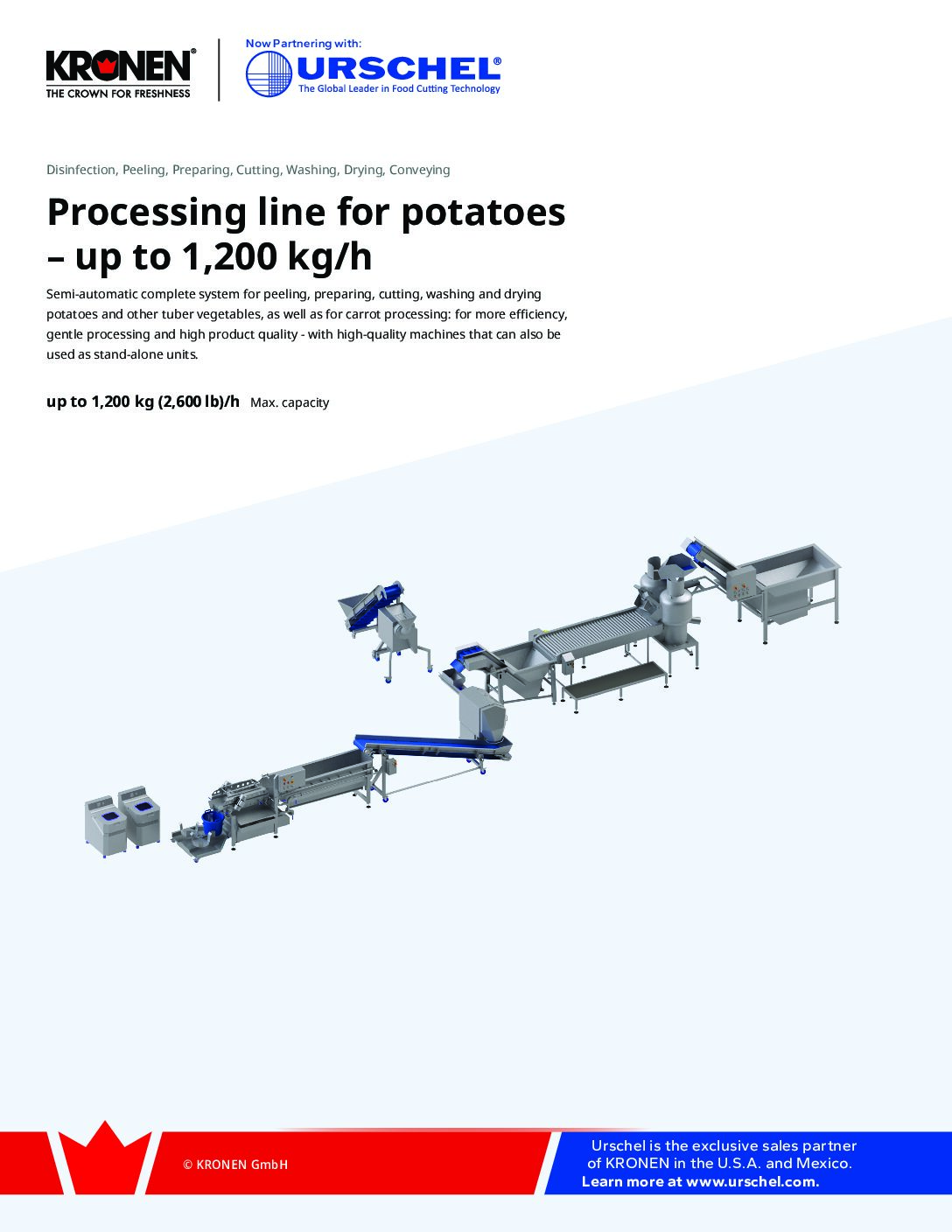

Brochures
