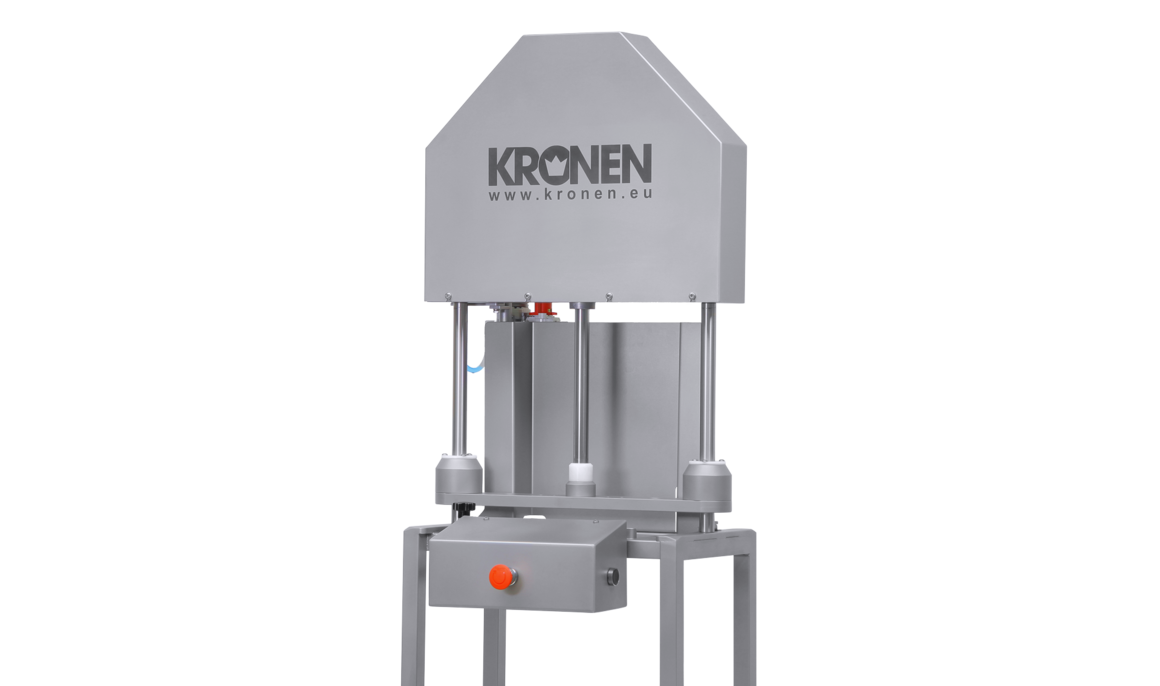

PGW pneumatic grid cutter
Peeling, Cutting
The PGW pneumatic grid cutter is suitable for cutting fruit and vegetables with a large diameter into many different cutting shapes. This is made possible by a wide variety of grid cutting inserts.
600 cuts/h Max. capacity
- Features
- Specs
- Resources
Overview
A wide variety of cutting shapes and processing without manual effort
Due to the variety of grid cutting inserts available, the pneumatically operated PGW can be used to process a wide range of fruit and vegetables. It can be used to core, segment or cut products into many different shapes such as cubes, strips, slices, segments or sticks. Special punching forms such as apple or pepper corers, kiwi corers and mango corers are also available. Pineapple can additionally be peeled, cored and cut. Inserts are also available for special cuts such as diamonds, boats and disks in various sizes, as well as decorative shapes (stars, hearts and many more).
The product to be processed is manually positioned onto the cutting insert mounted on the PGW. Pressing the buttons activates the cutting process and, depending on the knife used, the product is punched into the appropriate shape. The cut product drops down into a prepared container or onto an optionally available conveyor belt for product discharge.
In the standard version, the PGW is a tabletop device; a mobile base frame is optionally available.
Your Benefits
- Versatile use due to a large selection of cutting inserts
- Fast tool change
- Simple operation
Highlights
User-friendly and quick to clean
The PGW is easy to operate, quick to clean and requires little maintenance, which makes it particularly user-friendly. The two-hand operation ensures a high level of work safety.
Quick change of product or cutting form
The PGW can be quickly cleaned and converted. No additional tools are required to change the grid cutting inserts.
Flexibly adjustable to process different products
Thanks to the large selection of grid cutting inserts, the PGW can process a large number of products with various cutting shapes. In addition to the standard cutting types, inserts for peeling, dividing and coring pineapples and many special punching forms for special shapes or even customer-specific designs are available.
Specs
| Max. Capacity | 400-600 cuts/h (The capacity depends on factors such as the product.) |
| Operator | Semi-automatic |
| Air | Working pressure: 6 bar Air consumption: 17 NL/min |
| Dimensions | LxWxH: 440 x 500 x 1,100 mm (17.3 x 19.7 x 43.3″) (tabletop version) Weight: 55 kg (121 lb) Infeed/placement height: 1140 mm (44.9″) (with mobile base frame) |
| Miscellaneous | Diameter of raw product: max. 170 mm (6.7″) Length of raw product: max. 220 mm (8.7″) |
Industries
Vegetables
Fruit
Salads
Vegan Products
Baked Goods
