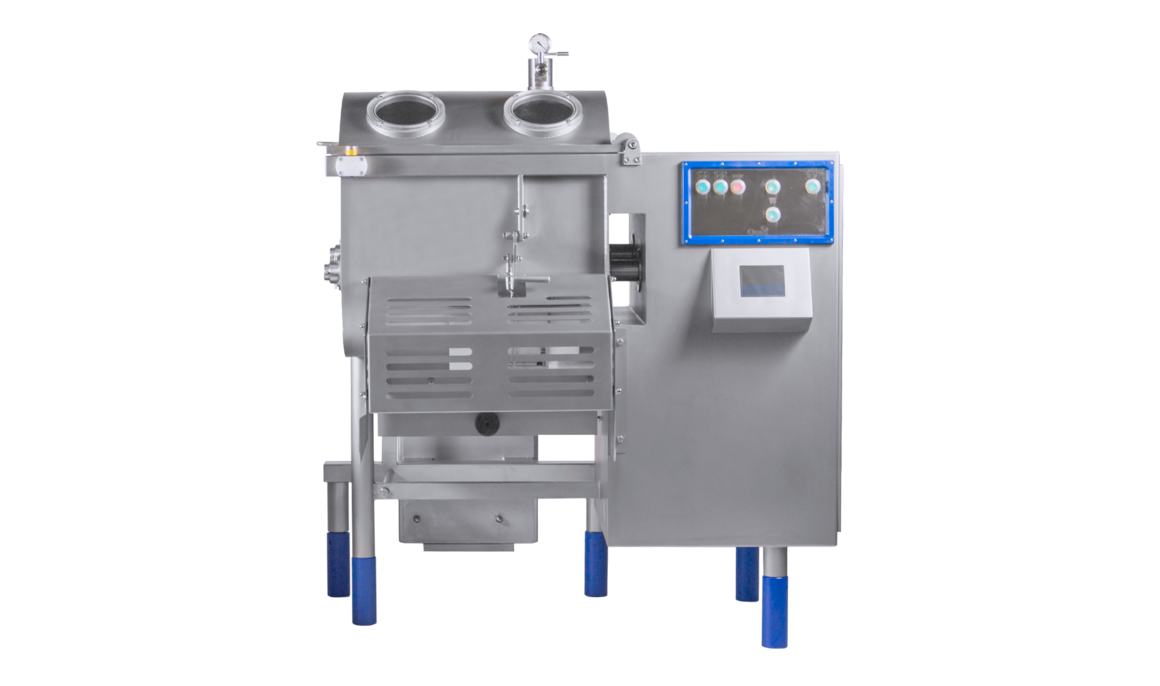

K230 salad and delicatessen mixing machine
Drying
Homogeneous mixing in industrial and versatile applications for the production of sausages and cold meats, hamburgers, crunchy salad mixtures, delicatessen products and ingredients for pizza production.
up to 1800 kg (3968″)/h max. capacity
- Features
- Specs
- Resources
Overview
Gentle and homogeneous mixing of food products for industrial applications
The K230 salad and delicatessen mixing machine gently and quickly mixes any type of product used for the production of sausages and cold meats, hamburgers, crunchy salads and delicatessen products, as well as ingredients for pizza production and pet food.
The mixing system with a double mixing shaft with intersecting paddles guarantees gentle treatment of the products and homogeneous mixtures. The product is filled into the spacious mixing container with a volume of 300 liters (79.3 gallos) by hand or from above with the help of a tilting device.
The large drainage opening enables complete unloading of the product into buggies of various sizes within a few seconds. The machine’s easy accessibility and smooth surface design guarantee fast and effective cleaning.
Other mixer models for larger production volumes are available on request, for example the K400 mixing machine for a 550-liter (145.3-gallon) volume.
Your Benefits
- Easy-to-clean spinning area prevents dirt deposits
- Optimal water drainage
- Robust design and safe operation
Highlights
Gentle product handling thanks to an intelligent mixing procedure
The mixing system with a double mixing shaft with intersecting paddles guarantees gentle treatment of the food products and homogeneous mixtures.
Optimal maintenance, cleaning and operation
The robust stainless steel construction and reliable mechanism make the K230 ideal for long periods of maintenance-free use. The bearings of the mixing shafts, which are sealed against wastewater, the easy removal of the mixing paddles, and smooth surfaces without sharp edges enable fast and effective cleaning.
The sensor-induced safety check at both the filling and draining openings causes the machine to stop immediately in the event that it is opened during operation.
Specs
| Capacity | up to 1,800 kg (3,968 lb)/h (The capacity depends on factors such as the product.) |
| Loading Type | Semi-automatic |
| Electrical Power | Voltage: 3~400 V N/PW Power: 3.75 kW (5 HP) Infeed/placement height: 1260 mm (49.6″) Outfeed/delivery height: 700 mm (27.6″) |
| Dimensions | LxWxH: 1715 x 1725 x 1340 mm (67.5 x 67.9 x 52.8″) Weight: 750 kg (1653.5 lb) |
| Miscellaneous | Total volume: 300 l (79.3 gal) |
Industries
Vegetables
Salads
Fish
Meat
Vegan Products
Fish
Resources
Photography
Brochures
K230 salad and delicatessen mixing machine
