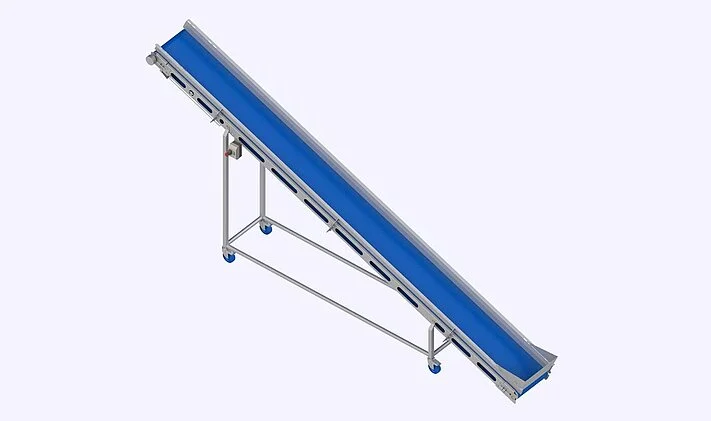

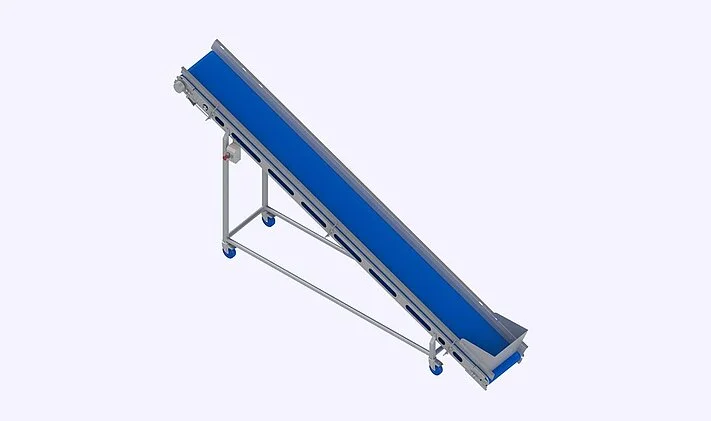

ECO inclined conveyor belt
Conveying
Cost-reduced ECO model: The inclined conveyor belt is available with a flexible design, for example with and without cleats and with different lengths, widths, heights and inclination angles. It ensures a continuous process and a higher level of automation in production.
- Features
- Specs
- Resources
Overview
Cost-reduced conveyor belt: flexibly adaptable to different food products and requirements
The ECO conveyor belt enables the continuous transport of food products (cut and whole) to the next processing step, for example to the peeling or cutting machine, and from here to the washing machine. Among other things, it is also suitable for the discharge of waste products.
The ascending conveyor belt is available in a wide variety of designs and can be individually customized to meet specific requirements in the food industry. A hopper for product infeed is included and can be adapted to the machine or product used in each case. The belt also comes with a mobile base frame and, in the case of smooth belts, a scraper.
Compared to the Conveyor PLUS, the ECO version is always suitable when the conveyor belt does not need to be removed, for example in order to be submerged in a cleaning solution. Due to the quick tension relief function, the ECO conveyor belt can be manually cleaned very well from all sides. The side guides can be folded down and the hopper is removable.
Your Benefits
- Cost-reduced ECO model
- A wide variety of versions are available and can be customized
- The more continuous filling enables a higher level of automation and improved hygiene
Highlights
Optimal maintenance and easy cleaning
The open stainless steel design enables fast cleaning. The belt tension can be released easily. The deflection roller can be folded up. With regard to hygienic design, the belt body is manufactured in such a way that horizontal surfaces are avoided. (Fig. PLUS)
Flexible designs can be ordered individually

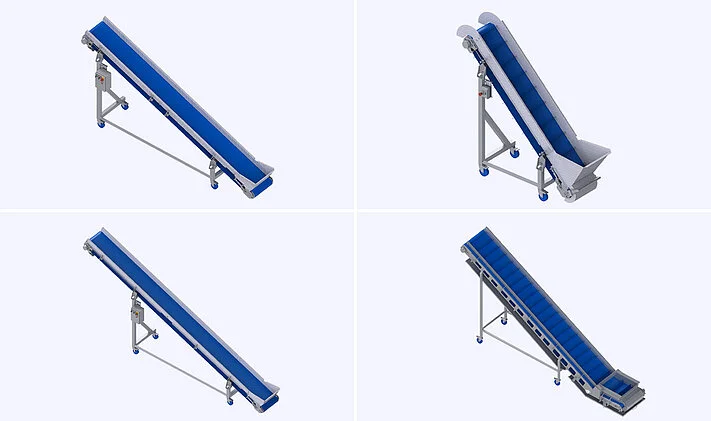

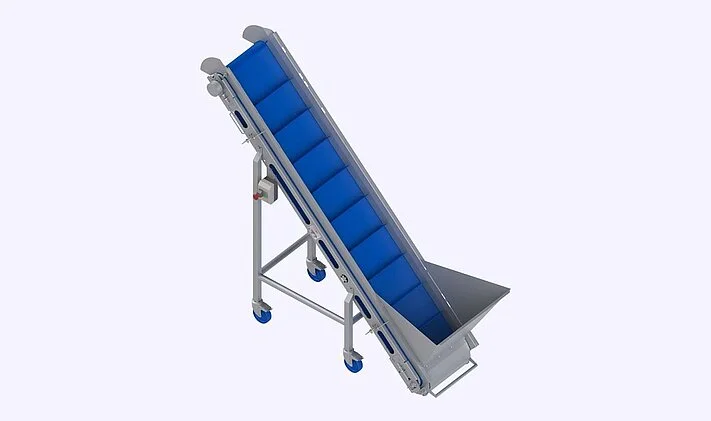

The belts can be ordered in various lengths, widths, heights and inclination angles and are therefore ideal for use in the food industry. They are available with and without cleats: a belt with cleats is recommended for steep belts or products that could easily roll away. In addition, various conveyor belts and materials are available. The fold-down side guide plates are available in various heights. The removable hopper is manufactured specifically for application with the respective machine or product. The PLUS version is also available as an adjustable incline conveyor belt (flat-to-inclined, inclined-flat or gooseneck). (Fig. PLUS)
Specs
| Electrical Power | Power: Depending on the design Voltage: 400 V N/PE (without frequency converter) 230 V N/PE (with frequency converter) Frequency: 50 Hz |
| Dimensions | Depending on the design |
Industries
Vegetables
Fruit
Salads
Fish
Meat
Vegan Products
Baked Goods
Pet Food
Resources
Photography
Brochures

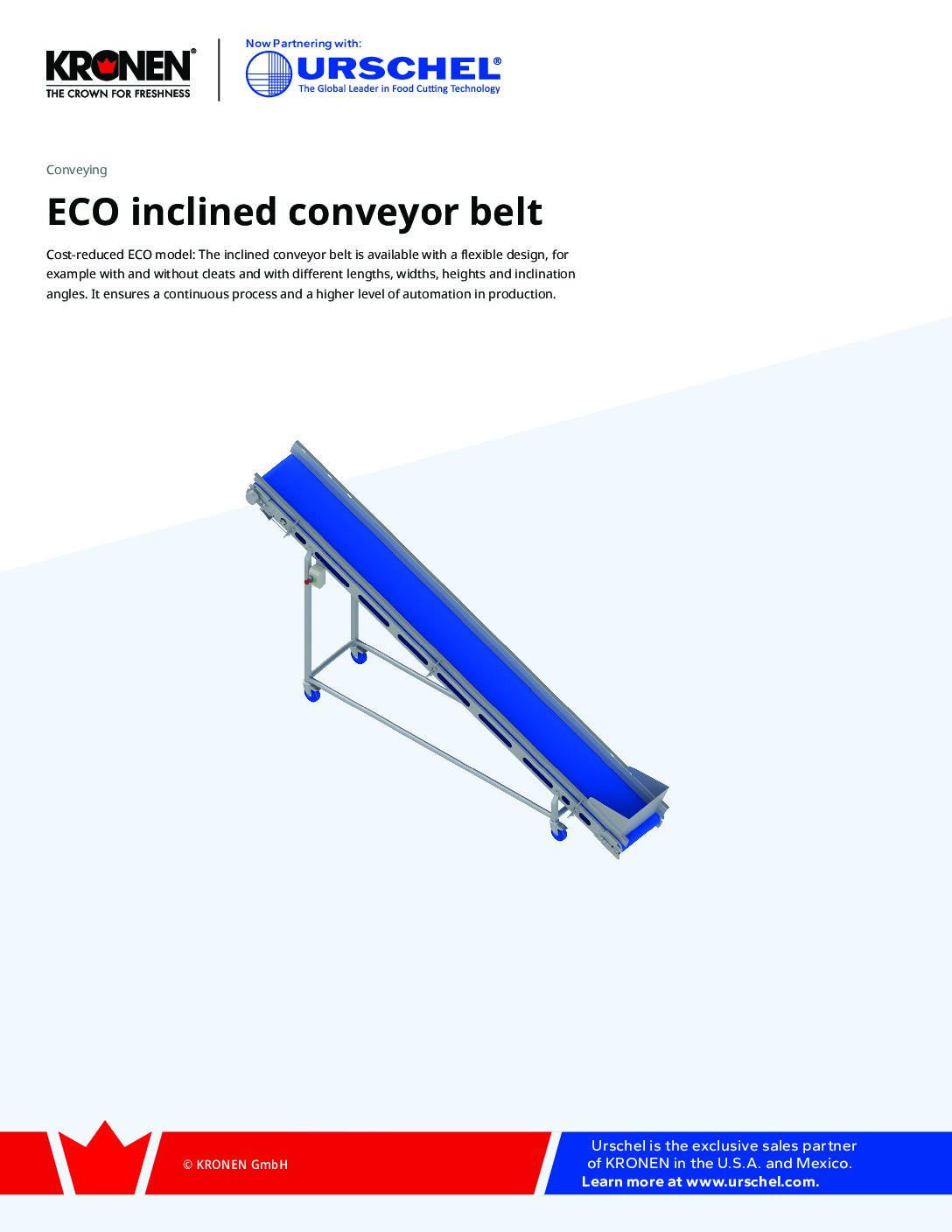

ECO inclined conveyor belt brochure
