CAP 350 cabbage cutting machine
Cutting
The CAP 350 cabbage cutting machine is suitable for efficiently processing large quantities of whole cabbages (e.g. white and red cabbage) up to a diameter of 350 mm (13.8″).
5,000 kg (11,023 lb)/h max. capacity
- Features
- Specs
- Resources
Overview
Perfect cutting results when processing whole cabbages
The CAP 350 cabbage cutting machine is ideal for cutting large quantities of whole cabbages. Red cabbage and white cabbage can be processed up to a diameter of 350 mm (13.8″) with optimal cutting quality. The machine can be filled continuously using its large feeding hopper.
The CAP 350 is a further development of the CAP 68 cabbage cutting machine. It is able to process particularly large heads of cabbage and therefore offers an increased processing capacity. The cutting machine features an open, user-friendly design that has been optimized in terms of hygiene and cleaning and places a strong focus on operational safety.
Cutting disks are available as standard in the following cutting thicknesses: 1.3 mm, 1.8 mm, 2.3 mm and 2.8 mm (.05, .07, .09, and .11″). Other cutting thicknesses can be offered on request.
Your Benefits
- Processing of whole cabbages up to a diameter of 350 mm (13.8″)
- High performance with outstanding cutting results
- Easy cleaning due to good accessibility and removable components
Highlights
Optimal product intake
The wide infeed tube ensures continuous filling. The angled blades on the cutting disk and the specially shaped product infeed ensure optimal intake of the cabbage head, thus largely preventing any possible uncontrolled movement of the cabbages.
Shred shorteners can be used to cut strips according to the specific cutting length required by the customer.
Cleaning and maximum hygiene

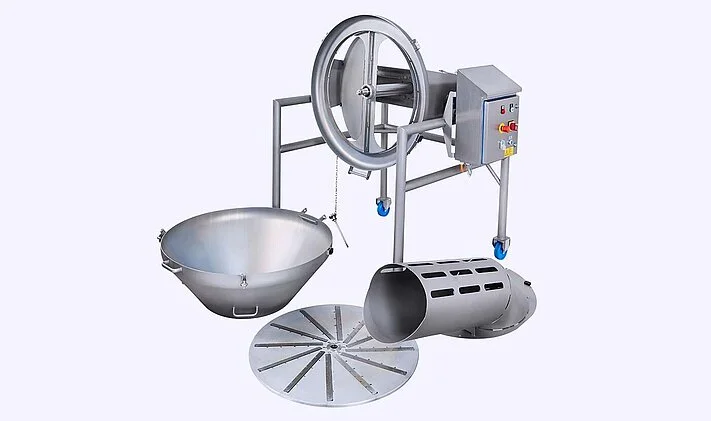

Functions that enable the machine hatch to be folded down for the easy removal of components ensure optimal hygiene and easy cleaning of the machine. The filler tube, cutting disk and discharge funnel can all be removed for quick and thorough cleaning.
Specs
| Max. Capacity | 1,000 – 5,000 kg (2,205 – 11,023 lb)/h (The capacity depends on factors such as the product.) |
| Operator | Semi-automatic |
| Electrical power | Power: 2.2 kW (3 HP) Voltage: 3-400 V N/PE Frequency: 50 Hz |
| Dimensions | LxWxH: 1,570 x 1,550 x 1,685 mm (61.8 x 61 x 66″) Weight: 281 kg (618 lb) Infeed/placement height: 1250 mm (49.2″) Outfeed/delivery height: 540 mm (21.3″) |
| Miscellaneous | Diameter of raw product: max. 350 mm (13.8″) Cutting thickness: 1.3, 1.8, 2.3, & 2.8 mm (.05, .07, .09, & .11″) |
Industries
Vegetables
Resources
Photography
Videos

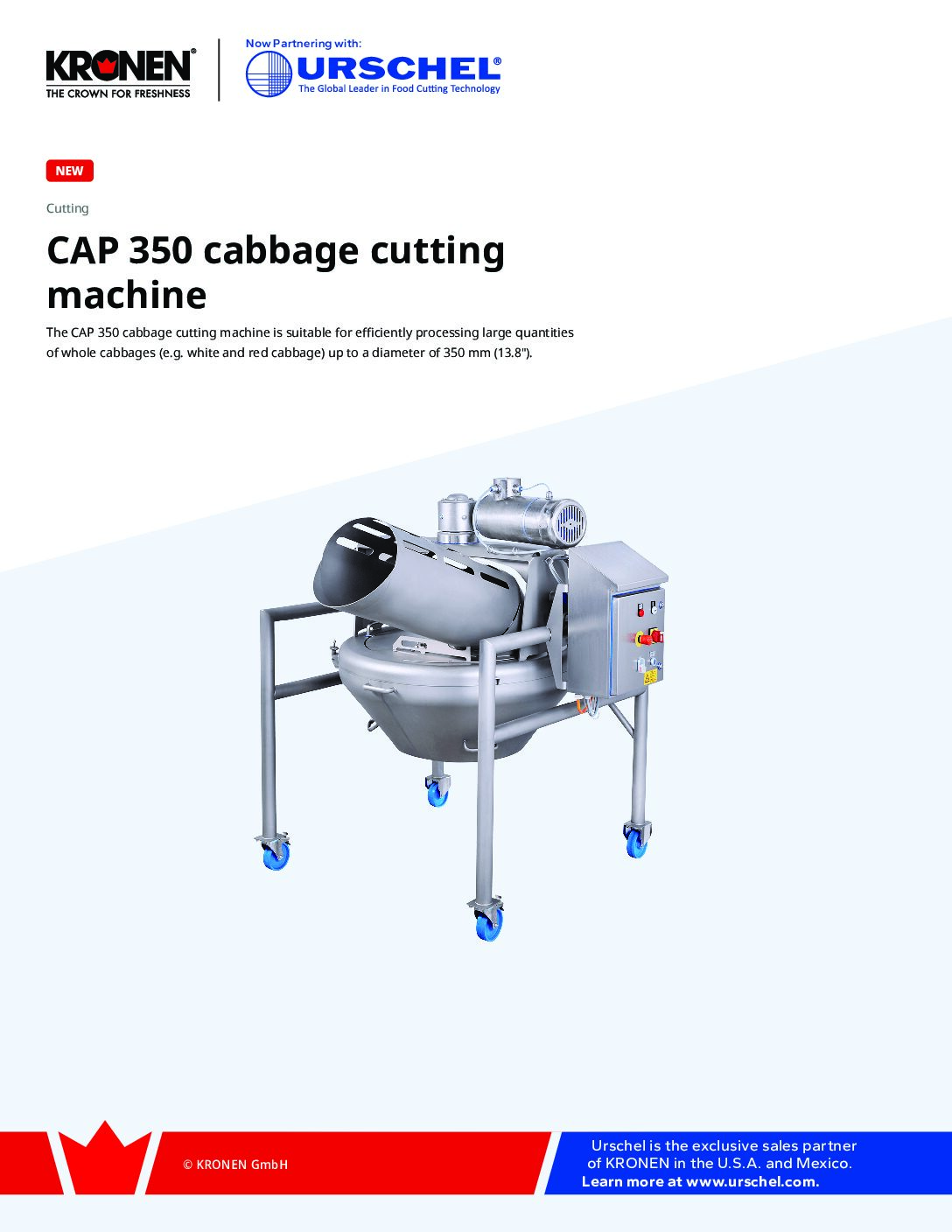

Brochures
CAP 350 cabbage cutting machine
