  • Model 30 Cutter

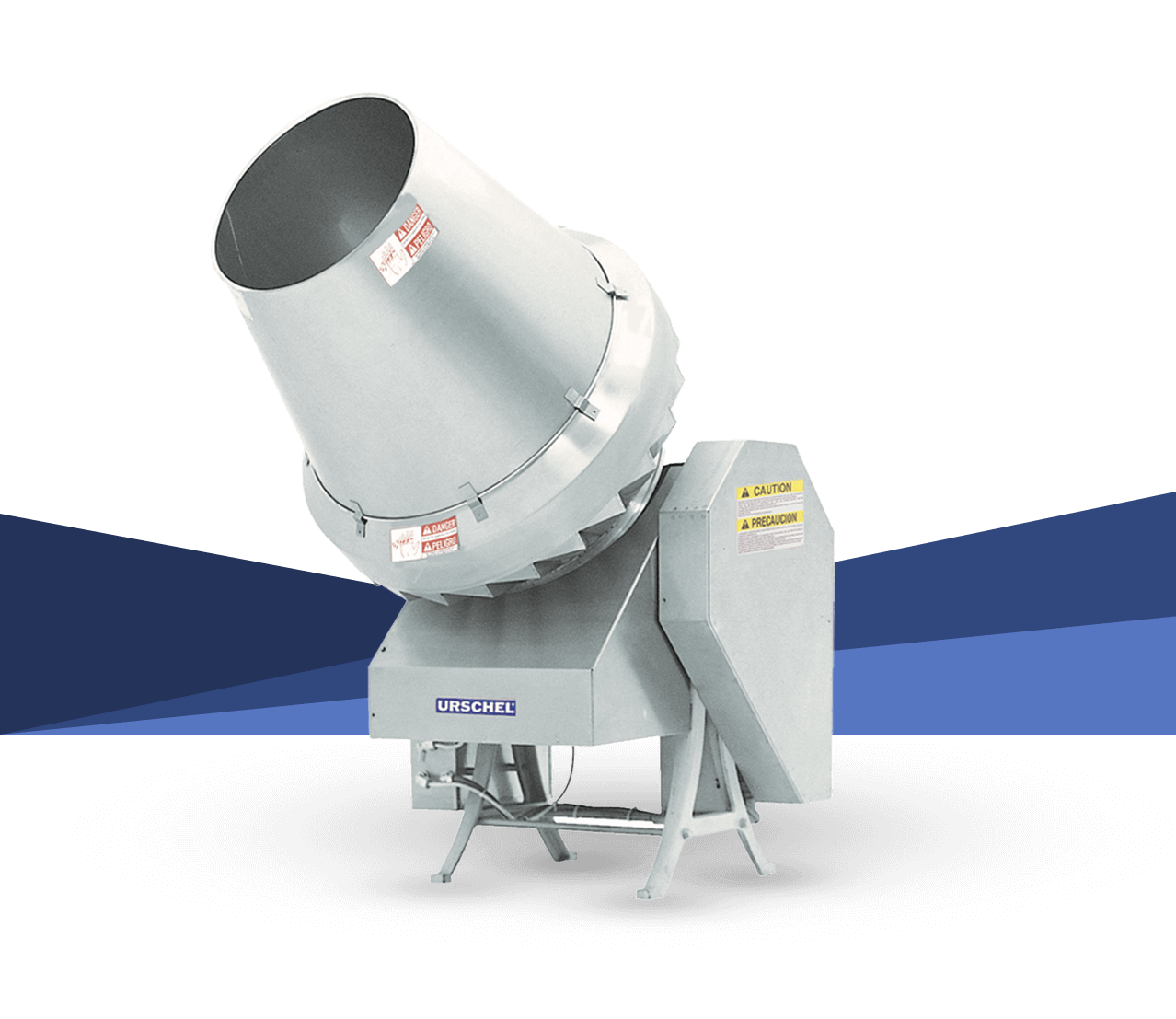

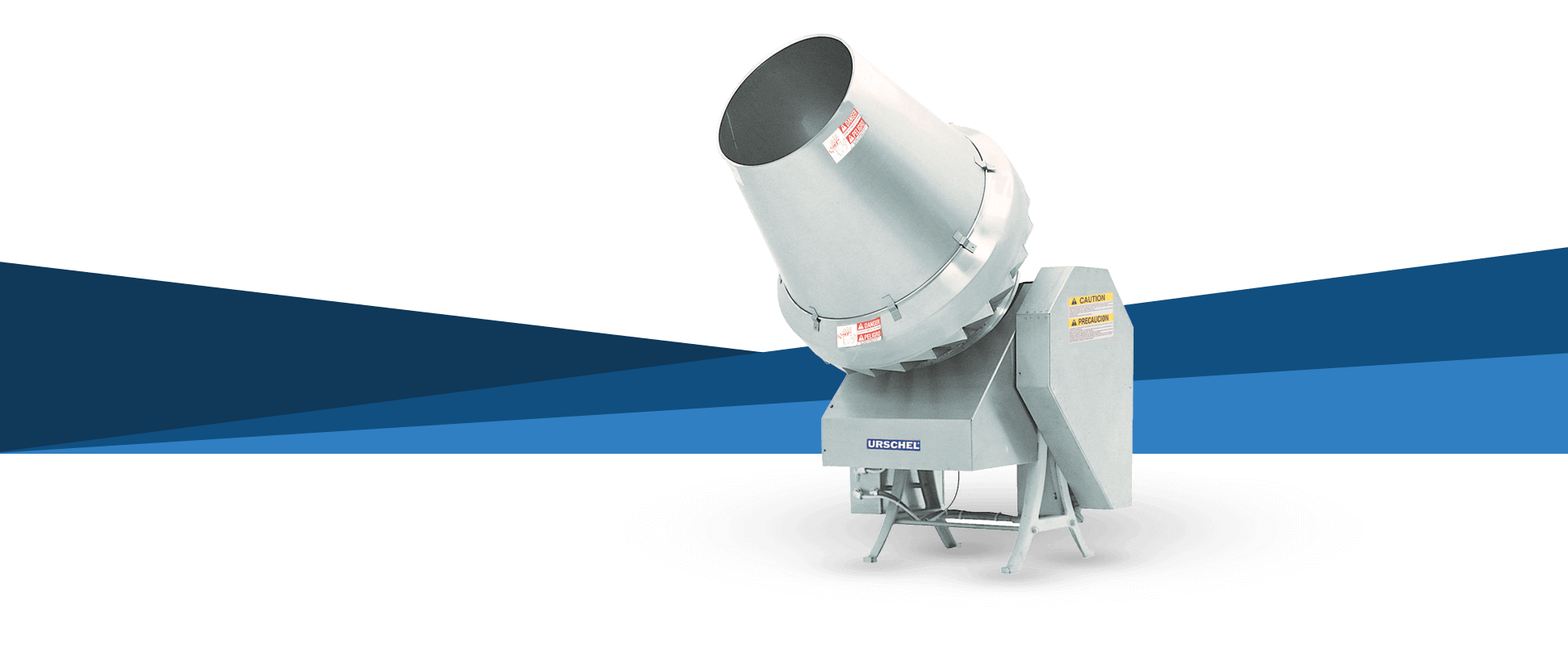

Model 30 Cutter

Crosscut Slicer for Elongated Products

  • Uniformly crosscut slices of various vegetables such as green beans, asparagus, okra, and carrots.
  • 3/4 HP (.56 kW) motor.
  • Variety of feed hoppers available to suit your application.
  • Features continuous operation for uninterrupted production and simplified design for easy cleanup and maintenance.

Applications

The Urschel® Model 30 crosscut slicer cuts across the length of elongated products while minimizing short end pieces. This slicer cuts elongated products such as green or wax beans, asparagus, okra, celery, carrots, and rhubarb.

Maximum infeed product entering either machine should not exceed 8" (203 mm) in length. Different style feed hoppers are available for use with different products. The machine features continuous operation for uninterrupted production, and simplified design for easy cleanup and maintenance.

  • Green Bean

    1-1/2" (38.1 mm) Cut

  • Cut Okra

    1/2" (12.7 mm) Chop

Machine Specs

Length:
58.10" (1476 mm)
Width:
40.02" (1016 mm)
Height:
63.95" (1624 mm)
Net Weight:
560 lb (254 kg)
Motor:
3/4 HP (.56 kW)

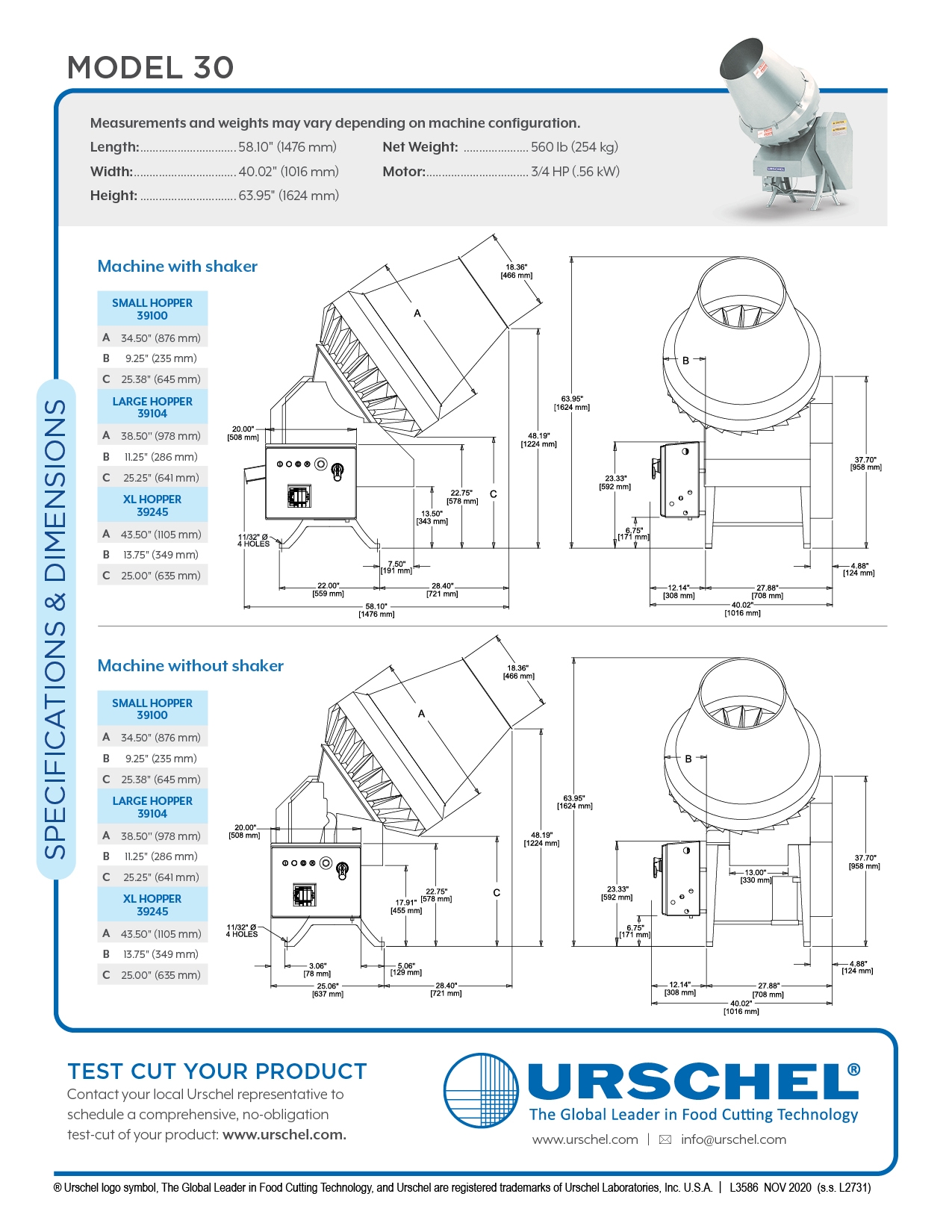

Dimensional Drawing

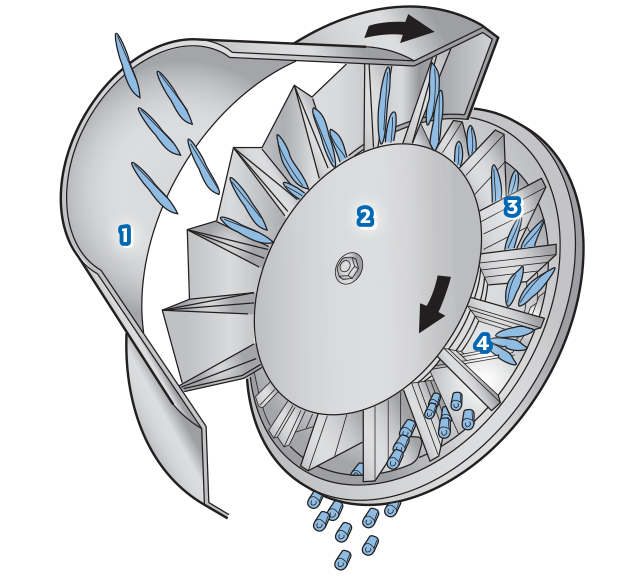

Operating Principle

Model 30 Cutter

  1. Feed Hopper
  2. Rotating Feed Hopper
  3. Narrow Cutting Pockets
  4. Stationary Knives

Types of Cuts

Length Cuts

1/2" (12.7 mm), .800" (20.3 mm), 1" (25.4 mm), 1-1/4" (31.8 mm), 1-1/2" (38.1 mm), 2" (50.8 mm)

  • Green Bean

    1-1/2" (38.1 mm) Cut

  • Cut Okra

    1/2" (12.7 mm) Chop
