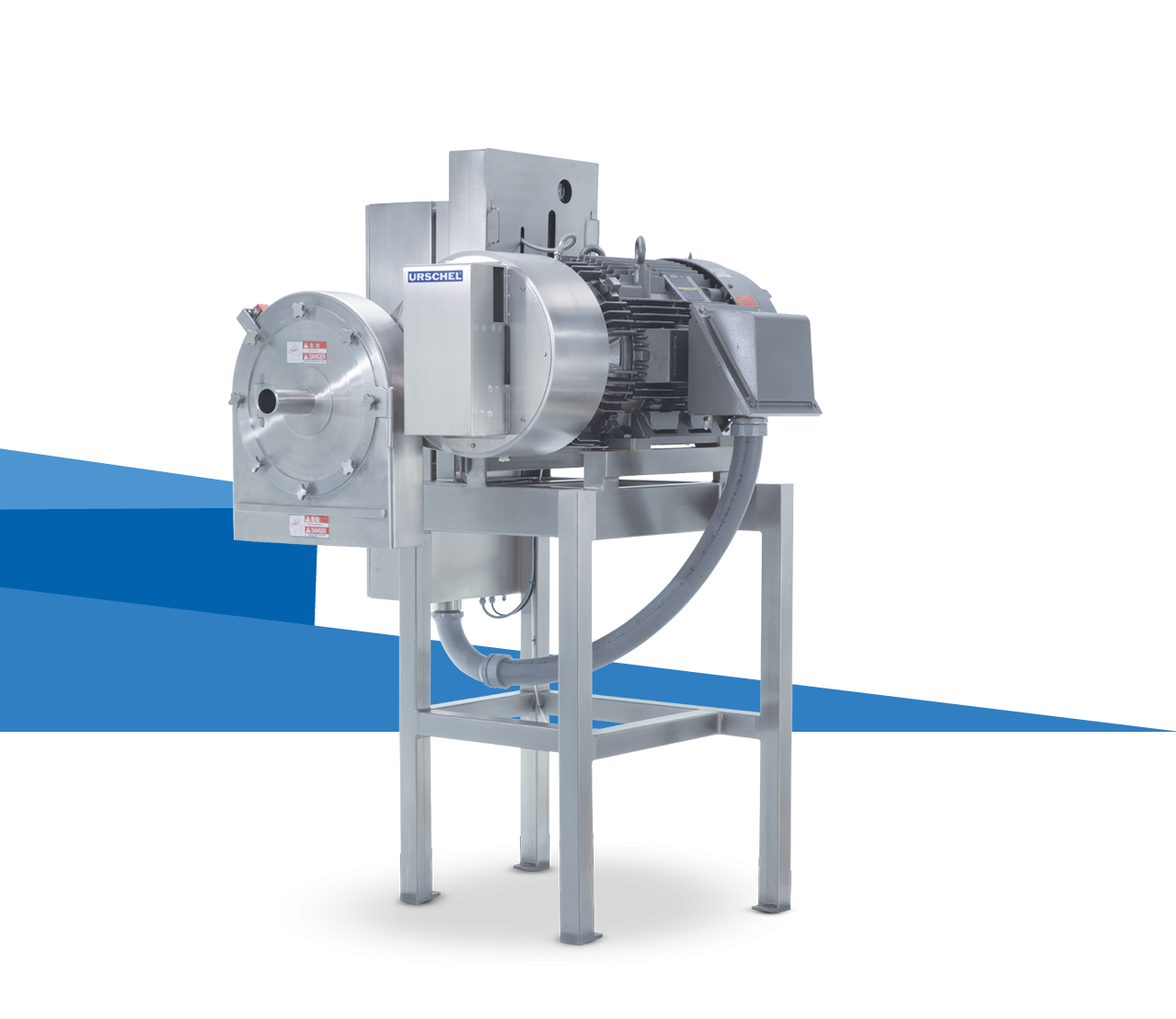

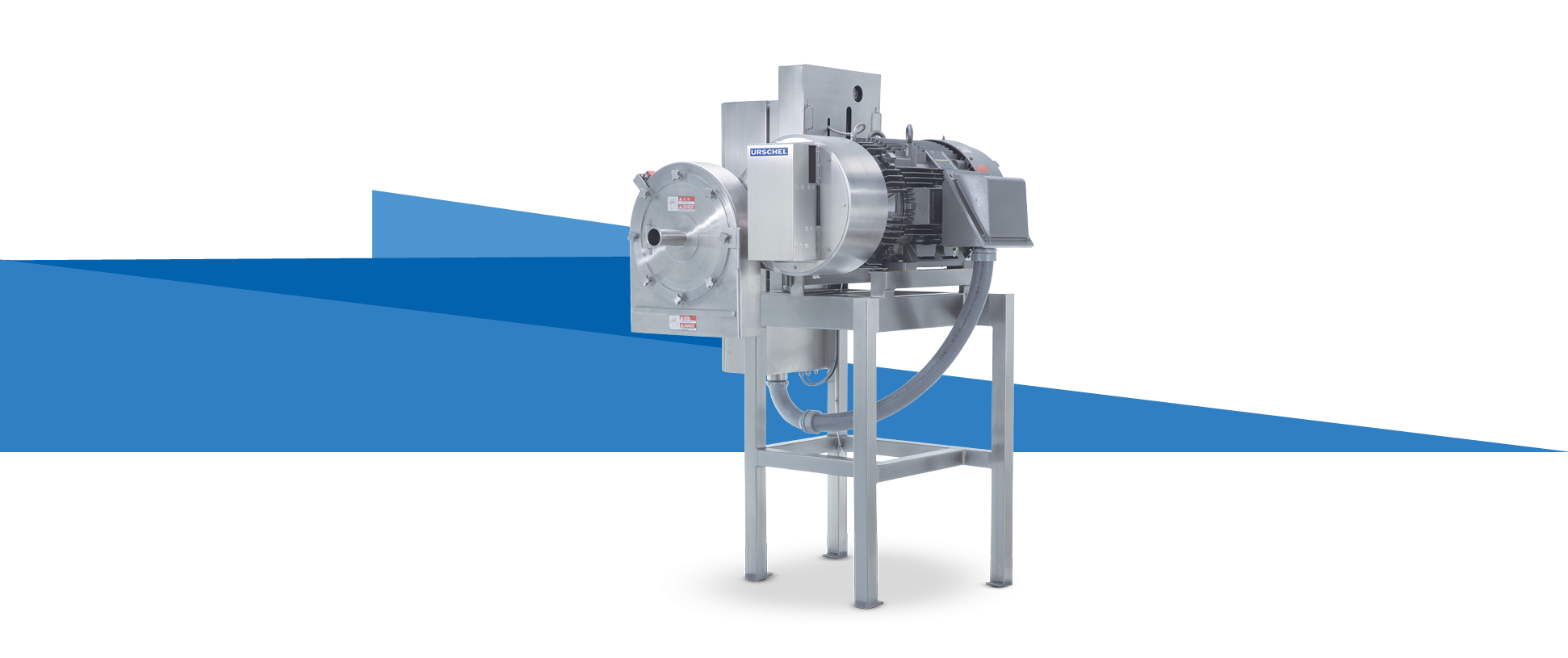

Comitrol® Processor Model 9300

High Capacity Single Pass Production of Slurries, Pastes, or Liquids

  • One-pass size reduction of products such as fruits and meats for baby food, peanut butter production, juices, and other applications where the final product will be a slurry, paste, or liquid.
  • Equipped with a 12" (305 mm) microcut head and impeller.
  • Available 150 or 200 HP (112 or 149.1 kW) impeller motor.
  • Features continuous operation for uninterrupted production and simplified design to ease cleaning and maintenance.

Applications

The ¥patented Comitrol Processor Model 9300 is recommended for particle size reduction when the final product will be a slurry, paste, or liquid. Equipped with a 12" (304.8 mm) microcut head and impeller, the 9300 is designed for one-pass size reduction of products such as fruits and meats for the production of baby food and peanuts for peanut butter. Depending on your production requirements, the Model 9300 can be pump-fed, or sold equipped with a screw feeder. The machine features continuous operation for uninterrupted production, and simplified design for easy cleanup and maintenance.

  • Deli Mustard

  • Peanut Butter

  • Baby Food - Peas

  • Pharmaceutical Milling

  • Soy Milk

  • Vegetable Juice

Machine Specs

Length:
59.74" (1517 mm)
Width:
60.06" (1526 mm)
Height:
88.00" (2235 mm)
Net Weight:
3146 lb (1427 kg)
Motor:
150 or 200 HP (112 or 149.1 kW)

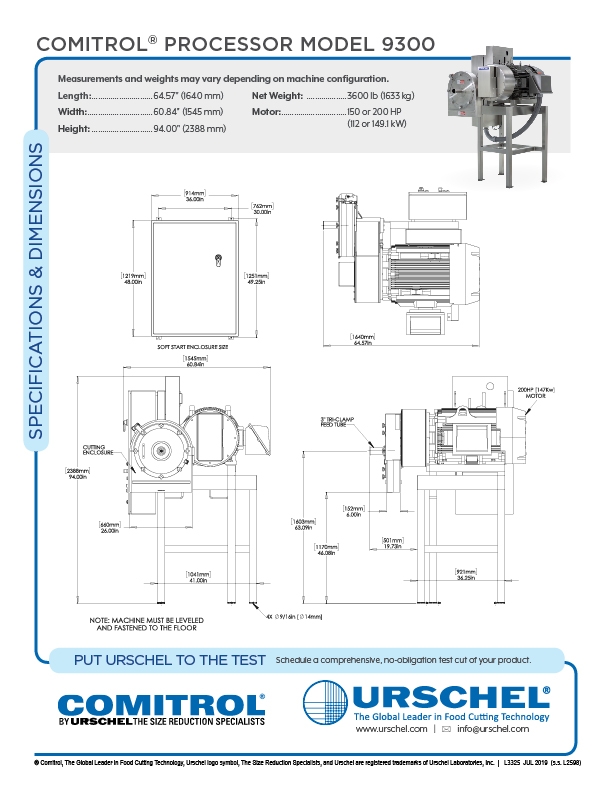

Dimensional Drawing

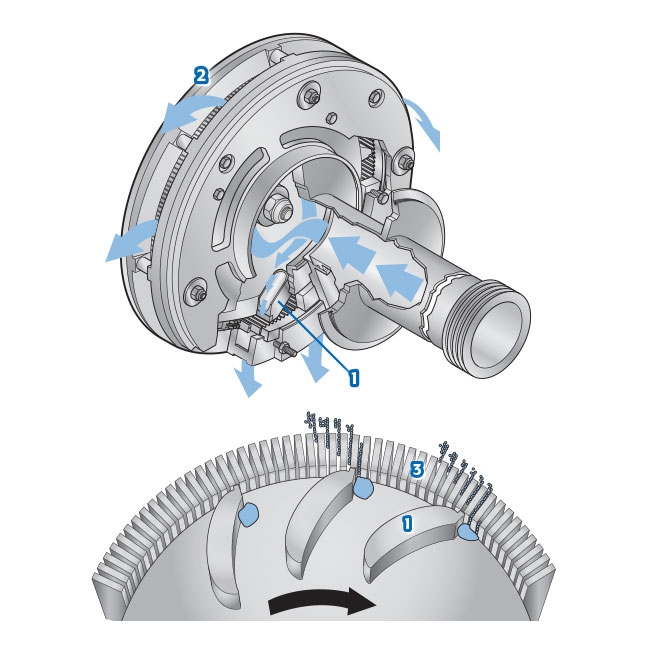

Operating Principle

Comitrol® Processor Model 9300

  1. Product is guided to the center of a high speed, rotating impeller [ 1 ].
  2. The resulting centrifugal force moves product outward to the impeller tips, which carry the product past the cutting edges of the stationary microcut head [ 2 ].
  3. The microcut head is a ring of closely spaced blades [ 3 ].
  4. Product strikes the exposed cutting edges of the blades with great velocity. This action results in the removal of small particles until reduction is completed. Particles are discharged through the spaces between the blades. Because of high impeller speeds [ 4 ], product remains in the microcut head only a fraction of a second. The product is reduced in precise increments, emerging a uniform size.

Types of Cuts

Particle sizes ranging from coarse to fine emulsions are possible.

To ensure the proper combination of cutting parts, Urschel Laboratories, Inc. recommends your product be tested in one of our worldwide Product Test Facilities free-of-charge to find the most efficient solution to your size reduction needs.
