E TranSlicer® Cutter
Precision Slicing with Maximum Versatility
-
Key Features
-
Applications
-
Specs
-
Types of Cuts
-
Media & Brochures
Key Features
INTERCHANGEABLE CUTTING WHEELS
Interchangeable 20″ (508 mm) diameter stainless steel cutting wheels: slicing, MicroSlice®, julienne, and shredding.
DYNAMIC BRAKING
Dynamic, stainless steel motors are specifically designed for demanding food production environments to withstand rigorous washdowns.
STAINLESS STEEL
Stainless steel materials; machine size designed to fit easily into existing processing lines.
EASE OF SANITATION AND MAINTENANCE
Stainless steel construction with sloped surface areas to deter bacterial growth. Hinged access panels promote sanitation and ease of maintenance.
SIMPLIFIED WHEEL CHANGEOVERS
Cutting wheel mount/holder assembly allows simple wheel changeovers.
SANITARY ZONE DESIGN
Sanitary design with all mechanical components completely separate from the food zone.
FULL ACCESS
Hinged/sliding panels offer full access to key areas and are designed to stand off of the frame to minimize overlapping joints, improve inspection, and decrease cleaning.
HIGH CAPACITY PRODUCTION
High capacity capabilities and continuous operation for uninterrupted production.
SELF-DRAINING
Sloped surfaces throughout the machine including a self-draining frame ease cleaning.
URSCHEL SERVICE & SUPPORT
Urschel cutting machinery is backed by solid service and support. Urschel customer service is just as reliable and dependable as the rugged equipment Urschel manufactures.
Applications

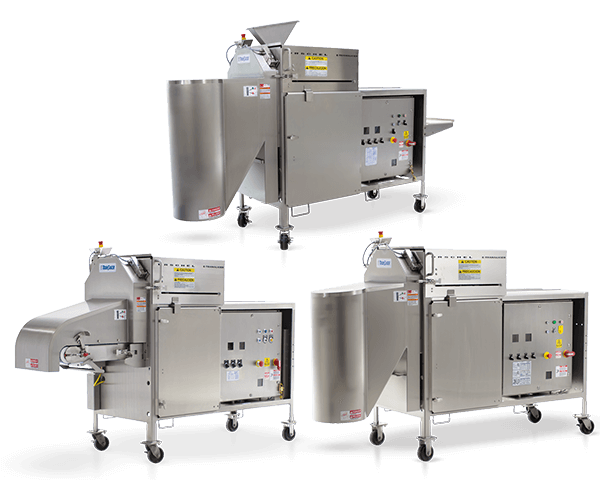

E TranSlicer® Cutter
The E TranSlicer® Cutter (METRS) accepts firm products up to 4″ (101.6 mm) in diameter and leafy-type, compressible products up to 6″ (152.4 mm) in diameter. Optional static hold-down, non-powered top belt, or powered top-belt hold-down assemblies are available to maintain positive feeding assistance.
Interchangeable stainless steel cutting wheels include: slicing wheel, patented MicroSlice® wheel, and julienne wheel. The number, placement, degree of pitch, and type of knives coordinate with the cutting wheel and feed belt speed to determine the size of cut. The unique MicroSlice delivers ultra-thin slices for popular applications such as cassava and taro chips. The machine features continuous operation for uninterrupted production.

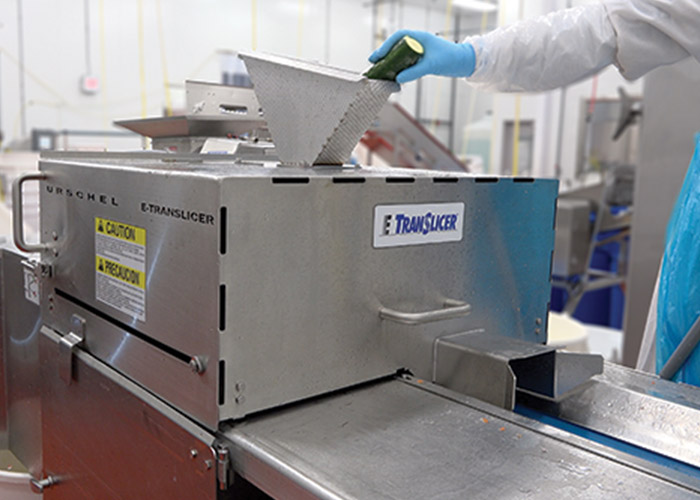

E TranSlicer® Bias Cutter
Newly developed parts transform the E TranSlicer® Cutter (METRS) from standard slicing to either 35 or 45 degree bias flat or crinkle slicing. Available when ordering a new machine, or as a retrofit kit for E TranSlicer machines in the field.

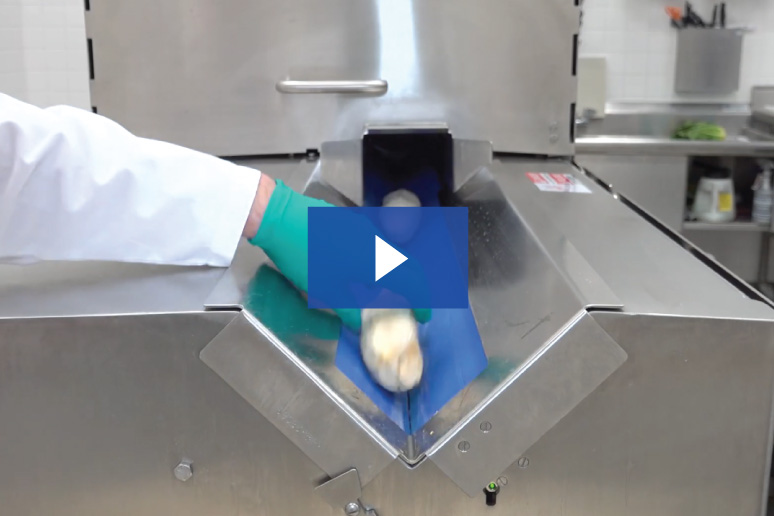

Once retrofitted, switching over from straight to bias slicing is accomplished in as little as 10 minutes. Designed for hand-fed, batch processing (running at 30 Hz) equipped with a MicroSlice® or slicing wheel set-up. Product is fed through a top chute that delivers product to the slicing wheel to produce bias slices. Infeed product should not exceed 2.5″ (63.5 mm) in diameter.

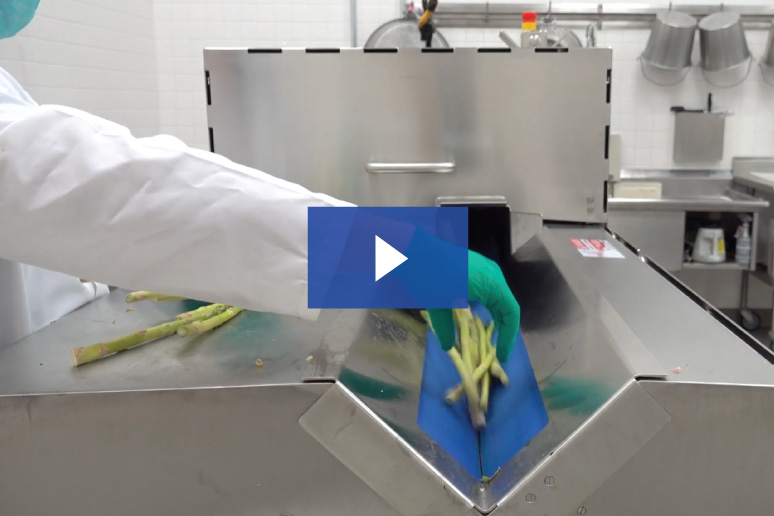

Asparagus
1″ (25.4 mm) Slice
Asparagus
1-1/2″ (38.1 mm) Slice

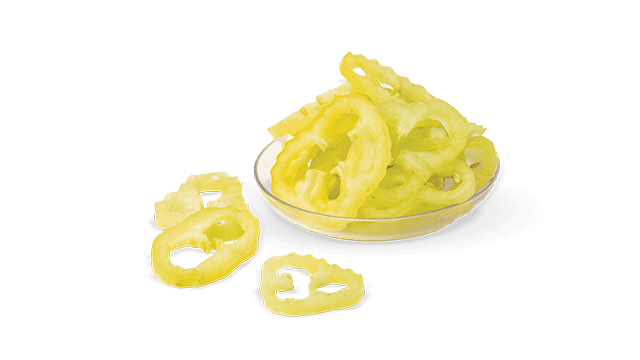

Banana Pepper
.3/16″ (4.8 mm) Crinkle Slice
Beef Stick
3/8″ (9.5 mm) Slice
Pepper
3/8″ (9.5 mm) Ring

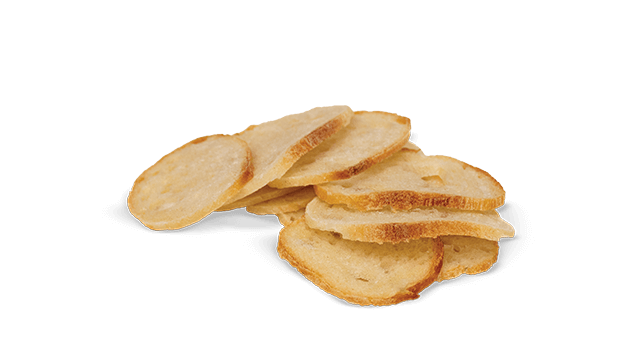

Baguette
1/8″ (3.2 mm) Slice
Carrot
3/16″ (4.8 mm) Crinkle Slice

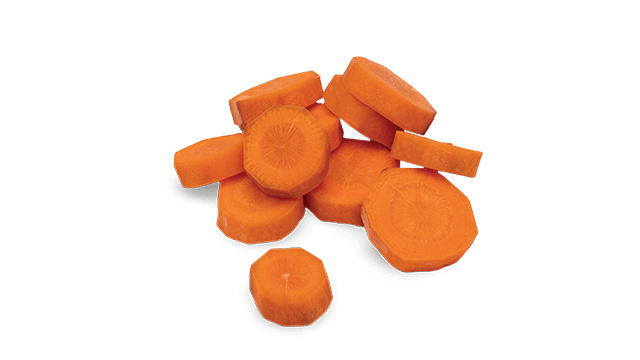

Carrot
3/8″ (9.5 mm) Slice
Cassava
.069″ (1.8 mm) Crinkle Slice
Celery
3/8″ (9.5 mm) Slice

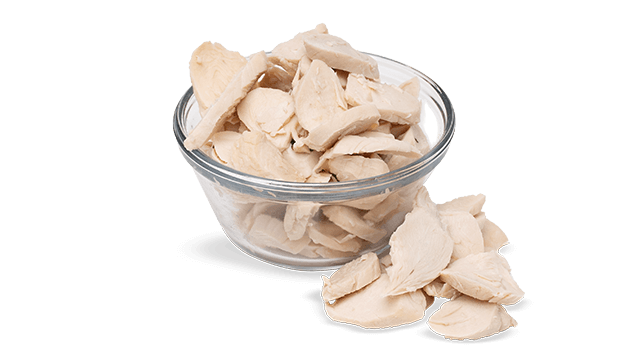

Chicken
1/4″ (6.4 mm) Slice
Cilantro
3/8″ (9.5 mm) Slice

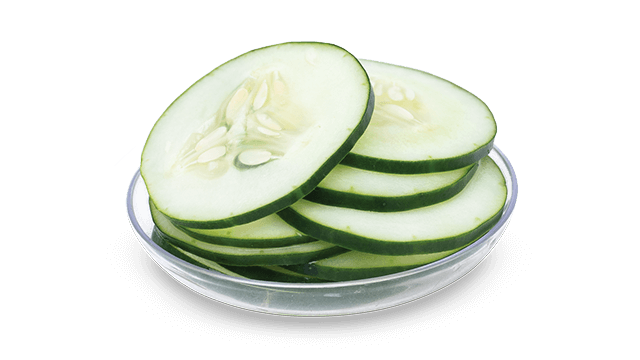

Cucumber
1/8″ (3.2 mm) Slice

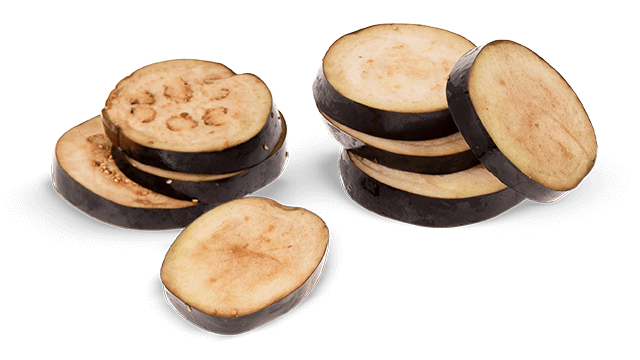

Eggplant
1/2″ (12.7 mm) Slice

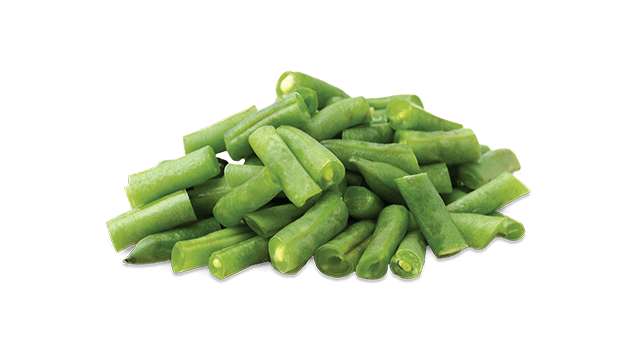

Green Bean
1″ (25.4 mm) Slice

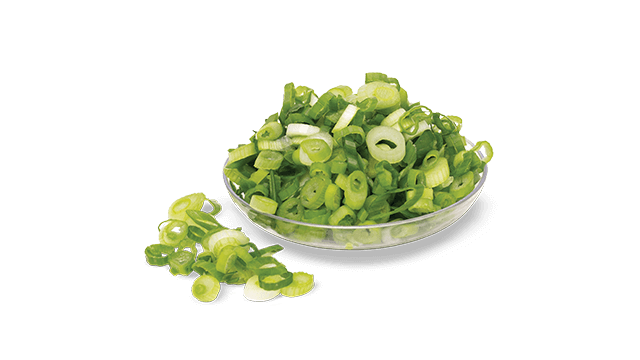

Green Onion
1/8″ (3.2 mm) Slice
Jalapeno
1/8″ (3.2 mm) Slice
Lemon
1/8″ (3.2 mm) Slice
Mango
3/8″ (9.5 mm) Slice
Onion
1/4″ (6.4 mm) Sliver

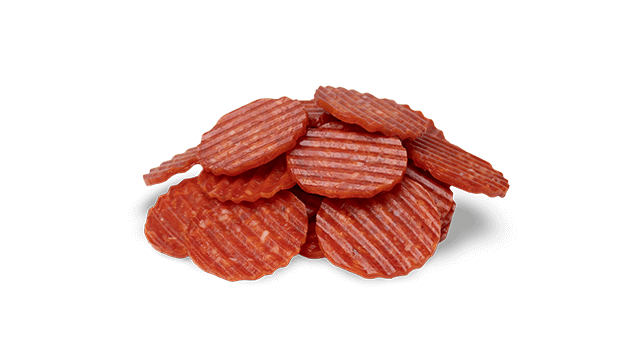

Pepperoni
1/8″ (3.2 mm) Crinkle Slice
Pickle
1/8″ (3.2 mm) Crinkle Slice

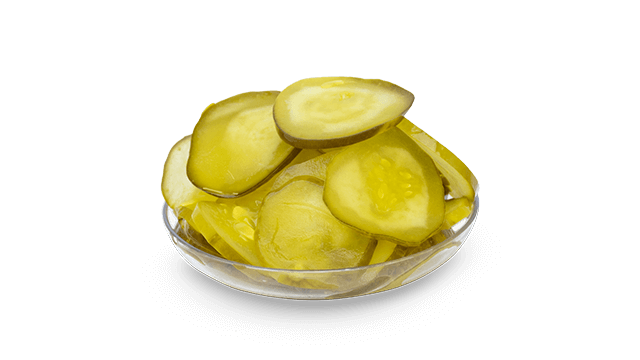

Pickle
1/8″ (3.2 mm) Flat Slice

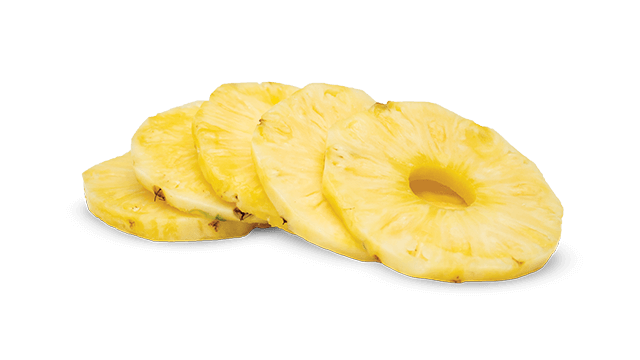

Pineapple
1/4″ (6.4 mm) Slice
Plantain
1/8″ (3.2 mm) Slice

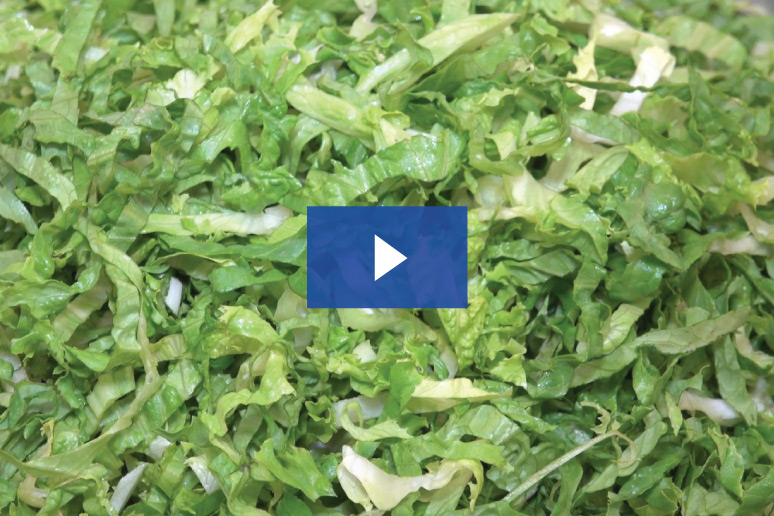

Romaine Lettuce
1 x 1-1/2″ (25.4 x 38.1 mm) Square
Sweet Potato
.065 (1.7 mm) Slice
Zucchini
1/2″ (12.7 mm) Half Moon Slice
Zucchini
3/16″ (4.8 mm) Slice

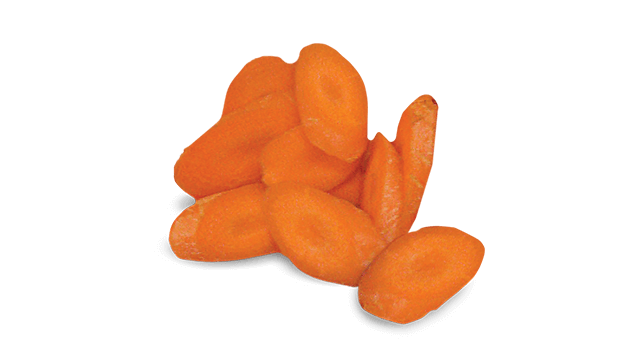

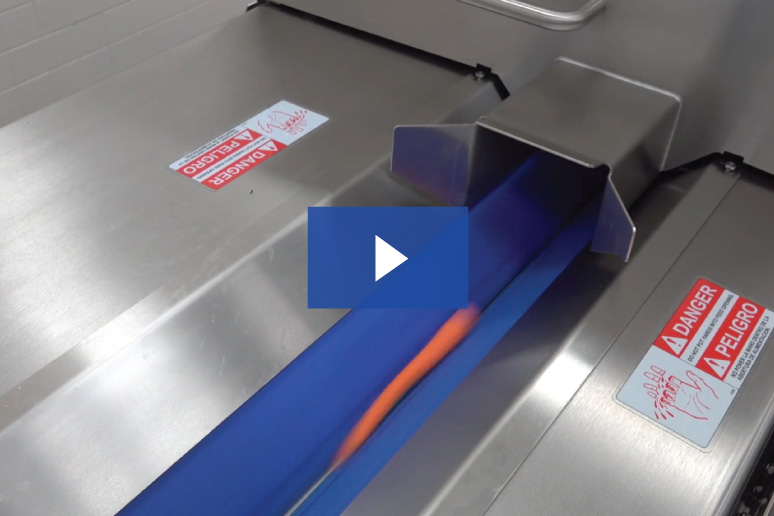

Carrot
3/16″ (4.8 mm)
Celery
1″ (25.4 mm)
Pickle
3/16″ (4.8 mm)
Specs
E TranSlicer® Cutter (METRS)
| LENGTH | 100.78″ (2560 mm) 117.26″ (2978 mm) w/ prep table |
| WIDTH | 35.31″ (897 mm) |
| HEIGHT | 61.79″ (1569 mm) 66.36″ (1686 mm) w/ remote stop |
| NET WEIGHT | 1300 lb (560 kg) |
| CUTTING WHEEL MOTOR | 3 HP (2.2 kW) |
| FEED BELT MOTOR | 1 HP (.75 kW) |
Measurements and weights may vary depending on machine configuration.

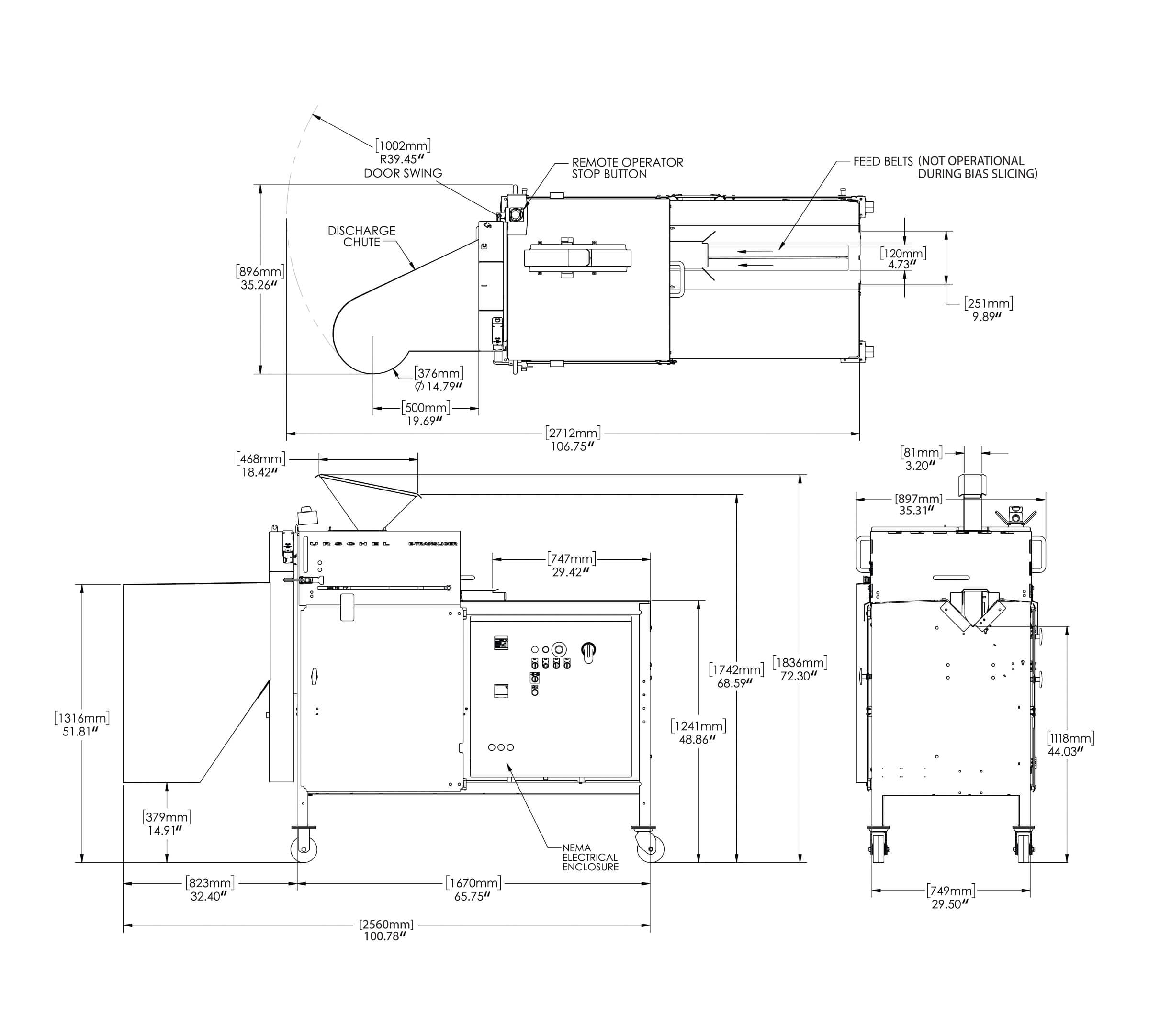

E TranSlicer® Bias Cutter
| LENGTH | 100.78″ (2560 mm) 117.26″ (2978 mm) w/ prep table |
| WIDTH | 35.31″ (897 mm) |
| HEIGHT | 72.30″ (1836 mm) |
| NET WEIGHT | 1300 lb (560 kg) |
| CUTTING WHEEL MOTOR | 3 HP (2.2 kW) |
| FEED BELT MOTOR | 1 HP (.75 kW) |

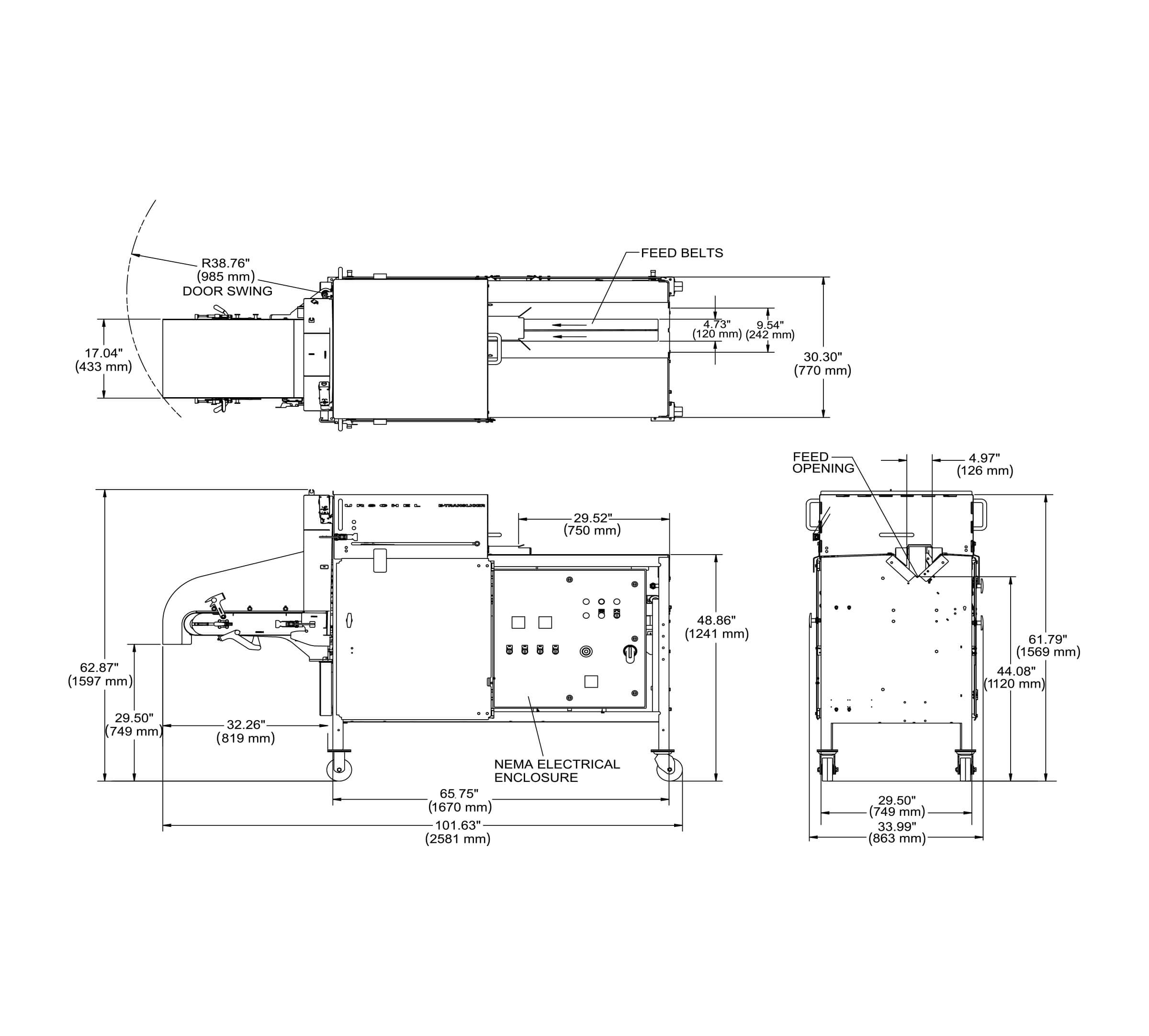

E TranSlicer® Cutter with Discharge Conveyor
| LENGTH | 101.63″ (2581 mm) |
| WIDTH | 33.99″ (863 mm) |
| HEIGHT | 62.87″ (1569 mm) |
| NET WEIGHT | 1540 Ib (700 kg) |
| CUTTING WHEEL MOTOR | 3 HP (2.2 kW) |
| FEED BELT MOTOR | 1 HP (.75 kW) |
| CONVEYOR BELT MOTOR | 1/4 HP (.19 kW) |

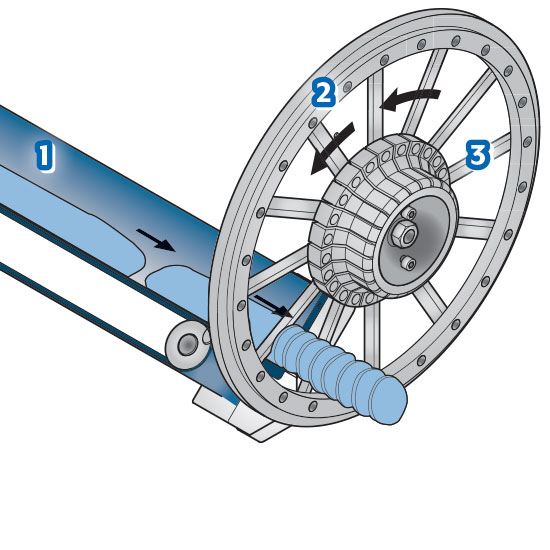

Operating Principle
E Translicer® Cutter
- Feed Belt
- Slicing Wheel
- Slicing Knives
Types of Cuts
Slicing Wheel
Flat & Crinkle Slice
1/32 to 3″ (.8 to 76.2 mm) Crinkle slices have 4-2/3 waves per inch and with a crinkle depth of 1/16″ (1.6 mm).
Julienne Wheel
Julienne Cuts
Julienne cuts ranging from 1/2 x 1/2″ (12.7 x 12.7 mm) to 2 x 2″ (50.8 x 50.8 mm).
MicroSlice® Wheel
Flat Slices
.020 to .240″ (.5 to 6 mm).
Crinkle Slices
.069″ (1.8 mm) thickness with 3-1/3 waves per inch and a crinkle depth of .080″ (2.0 mm).

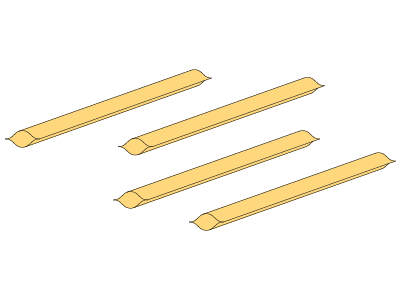

Oval Shred
This shred has an oval-shaped cross section measuring approximately .125″ (3.2 mm) thick by .250″ (6.4 mm) wide.
Julienne Strips
A wide range of julienne strips can be made from firm products. Contact your local representative for more information.

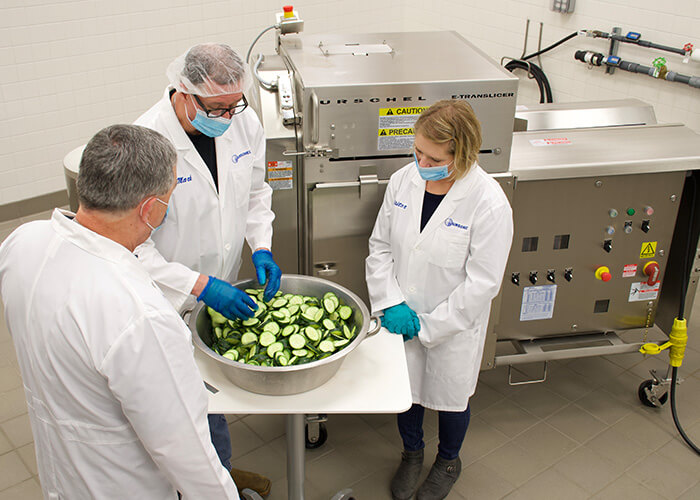

Want to Test Cut Your Specific Product?
Contact Urschel to learn more about the product test cutting process.
Media & Brochures
Photography
Videos

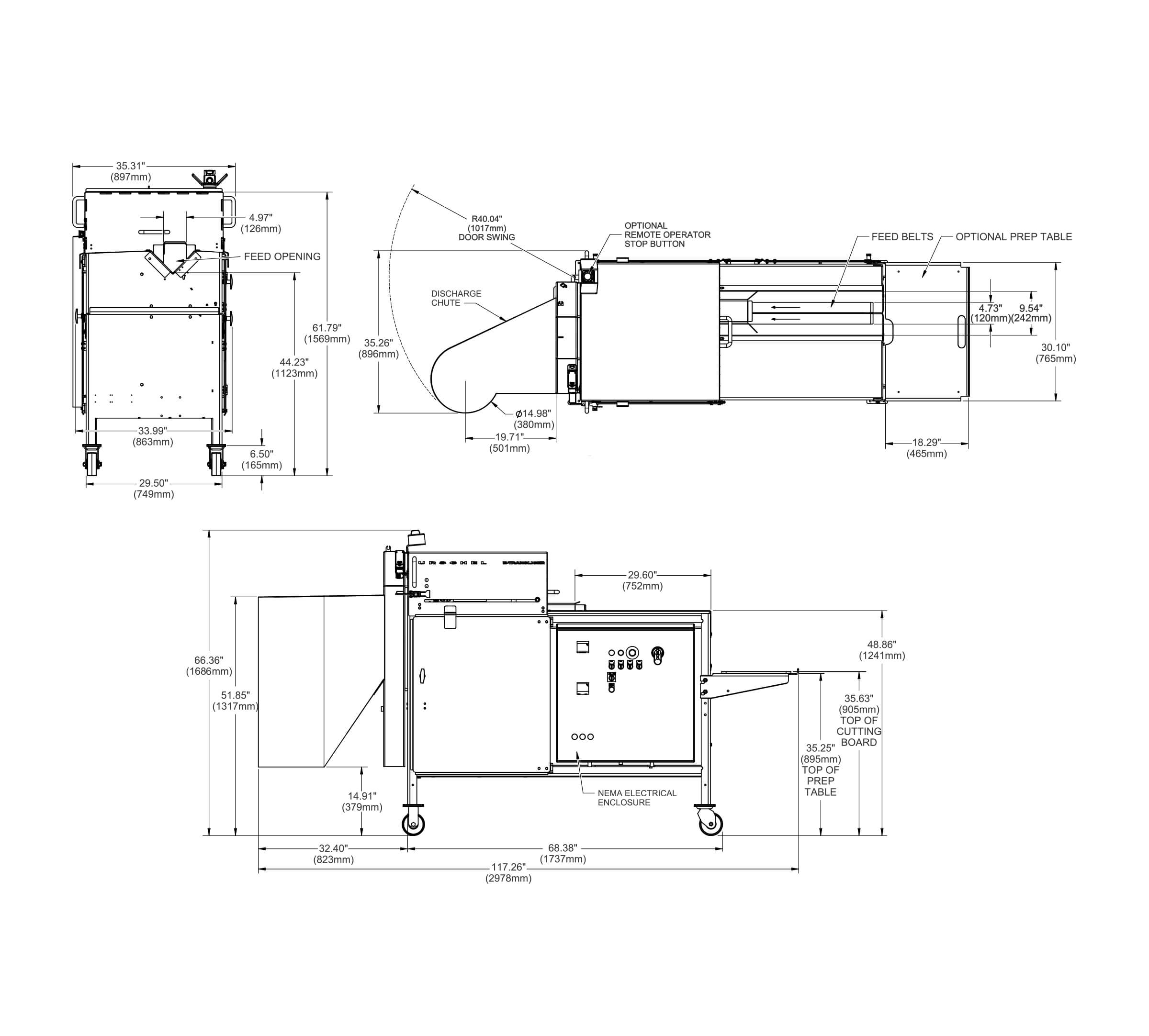

Dimensional Drawings
Find My Sales Rep
Where are you located?
Search United States
Search Globally
Brochures & Guides
Machine Brochure E TranSlicer® Cutter
Download (link opens in new window)
Fact Sheet E TranSlicer® Cutter
Download (link opens in new window)

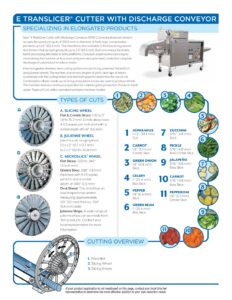

Fact Sheet E TranSlicer® Cutter with Discharge Conveyor
Download (link opens in new window)
Fact Sheet E TranSlicer® Bias Cutter
Download (link opens in new window)
Machine Brochure E TranSlicer® Cutter (FR)
Download (link opens in new window)

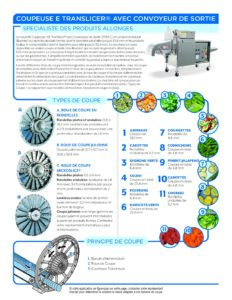

Fact Sheet E TranSlicer® Cutter (FR)
Download (link opens in new window)

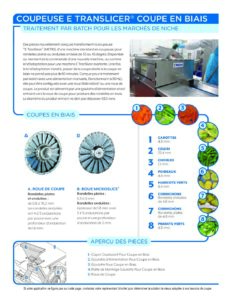

Fact Sheet E TransSlicer® Bias Cutter (FR)
Download (link opens in new window)

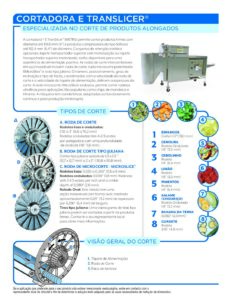

Fact Sheet E TranSlicer® Cutter (POR)
Download (link opens in new window)

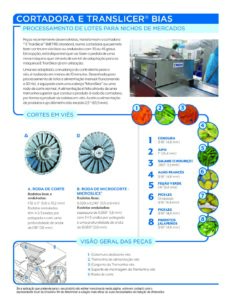

Fact Sheet E TranSlicer® Bias Cutter (POR)
